Copernicus RC107 - Manual (Page 7)

RC107 - Version D - 3 June 2014 - Copernicus Educational Products Inc.

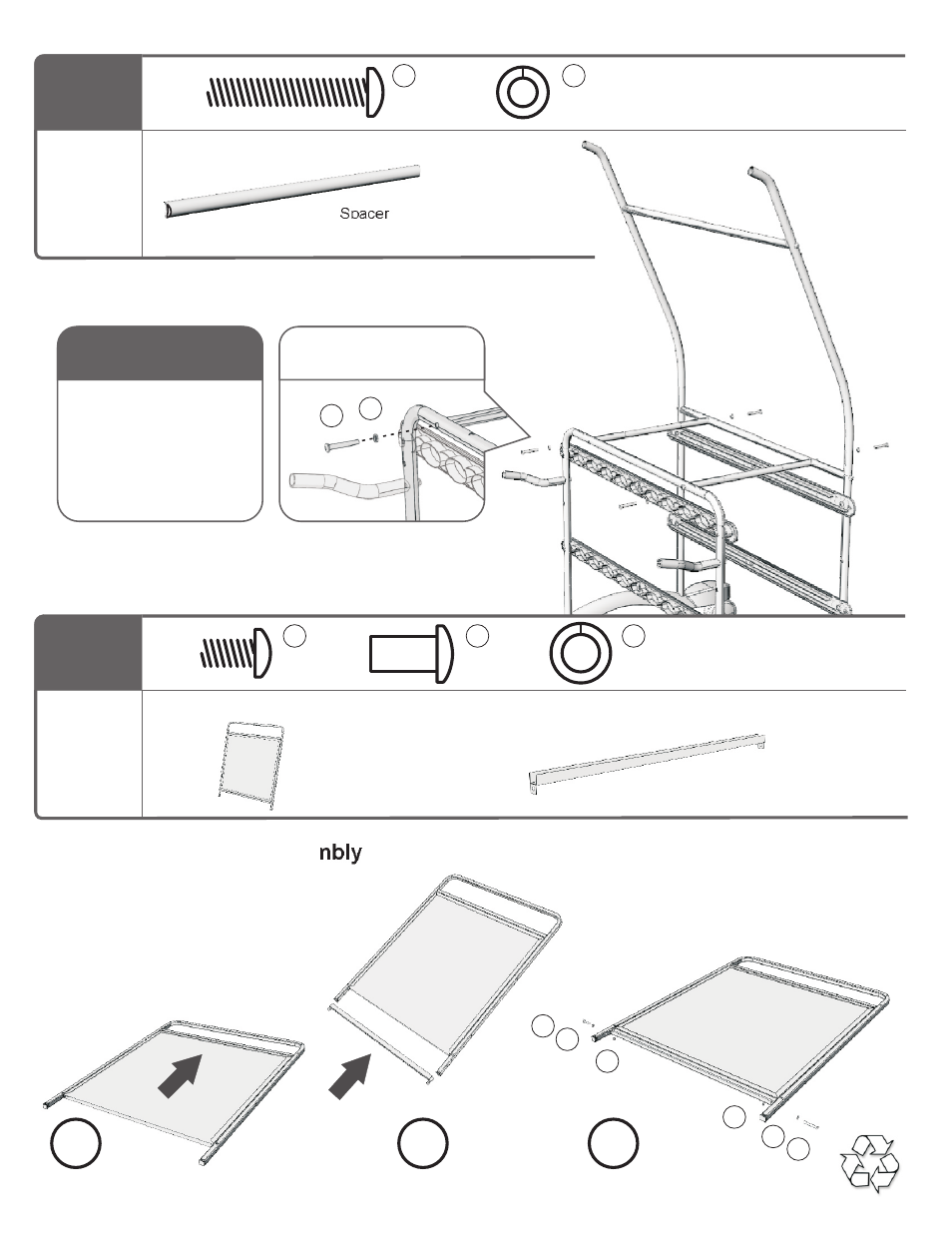

6
Spacer
No Thru Holes
2x
You will need:
(Not to Scale)
Actual Size:
Install Spacers
7
Front Frame Assembly
1x
You will need:
(Not to Scale)
Actual Size:
Build Front Frame Assembly
Tighten bolts
3 2 1
1. Slide whiteboard as far up as it will go.
2. Slide whiteboard channel up to bottom
of whiteboard.
3. Fasten the whiteboard channel in
place.
Tighten bolts
RC107
Tech Easel
(RC108, RC109, RC110)
Do NOT install
Spacers if building
a Tech Easel. Move
onto the next step.
4x
D
M6x35mm
4x
D
A
2x
M6x15mm
2x 2x
Whiteboard Channel
1x
A
A
H
H
F
F
F
i i
i i
i i
