Copernicus RC107 - Manual (Page 4)

RC107 - Version D - 3 June 2014 - Copernicus Educational Products Inc.
Note - Left & Right
stickers on the frames
!
1
Caster
4x
You will need:
(Not to Scale)
Actual Size:
2
Center Frame
1x Rear Frame Lower
2x
You will need:
(Not to Scale)
4x 4x
Actual Size:

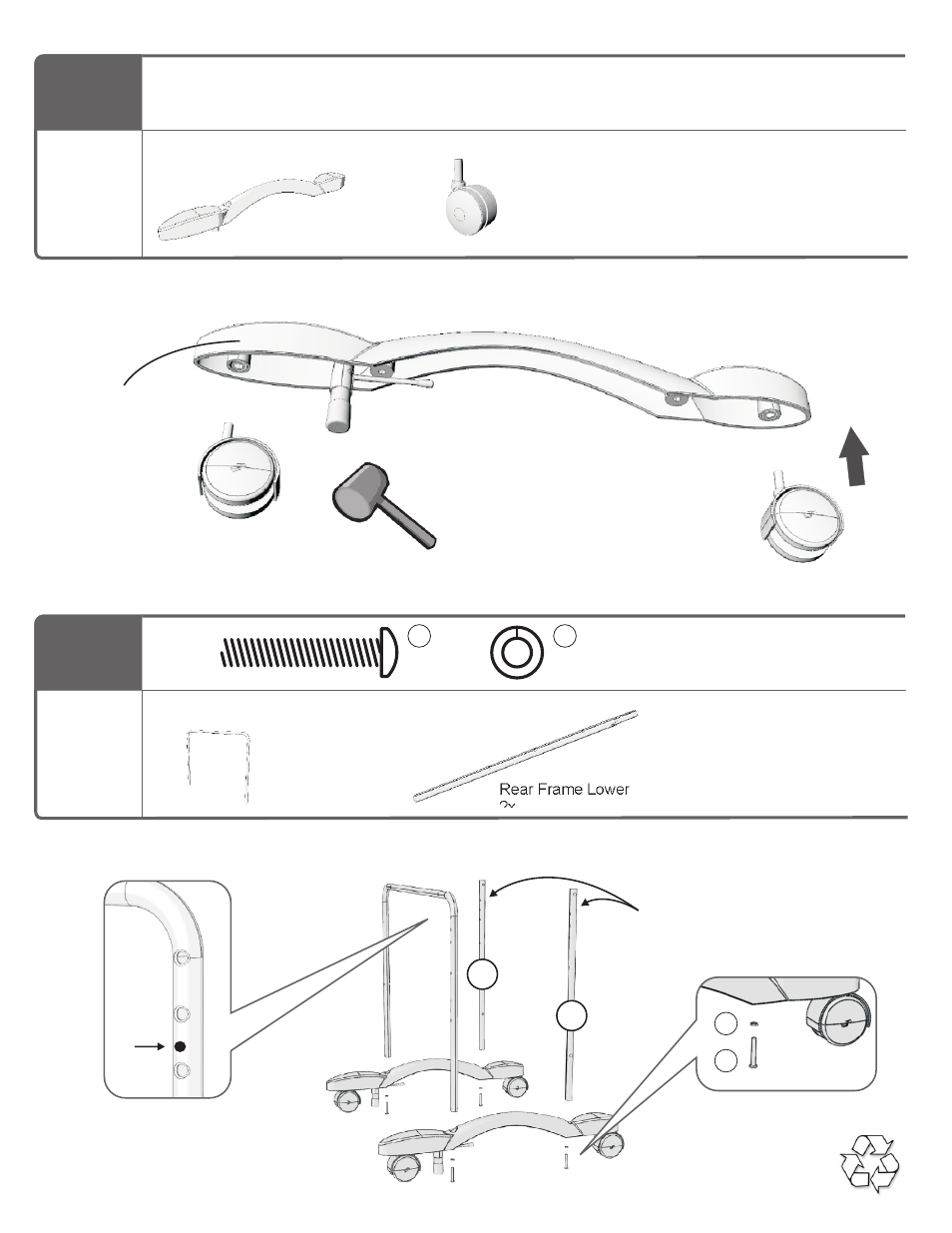

Install Casters
Front
Press Casters firmly into the Base:
? Casters will click into place
? If necessary, tap the caster in
using a rubber mallet.
You should begin the installation with the brakes in the UP Position
Tighten bolts
!
Install Center Frame & Rear Frame Lower
R
L
Black sticker & indents
always face outward
!
D
D
M6x35mm
Base
2x
H
H
