Copernicus DCS2A - Manual (Page 10)

DCS1A_DCS2A - Version F - 9 September 2014 - Copernicus Educational Products Inc.

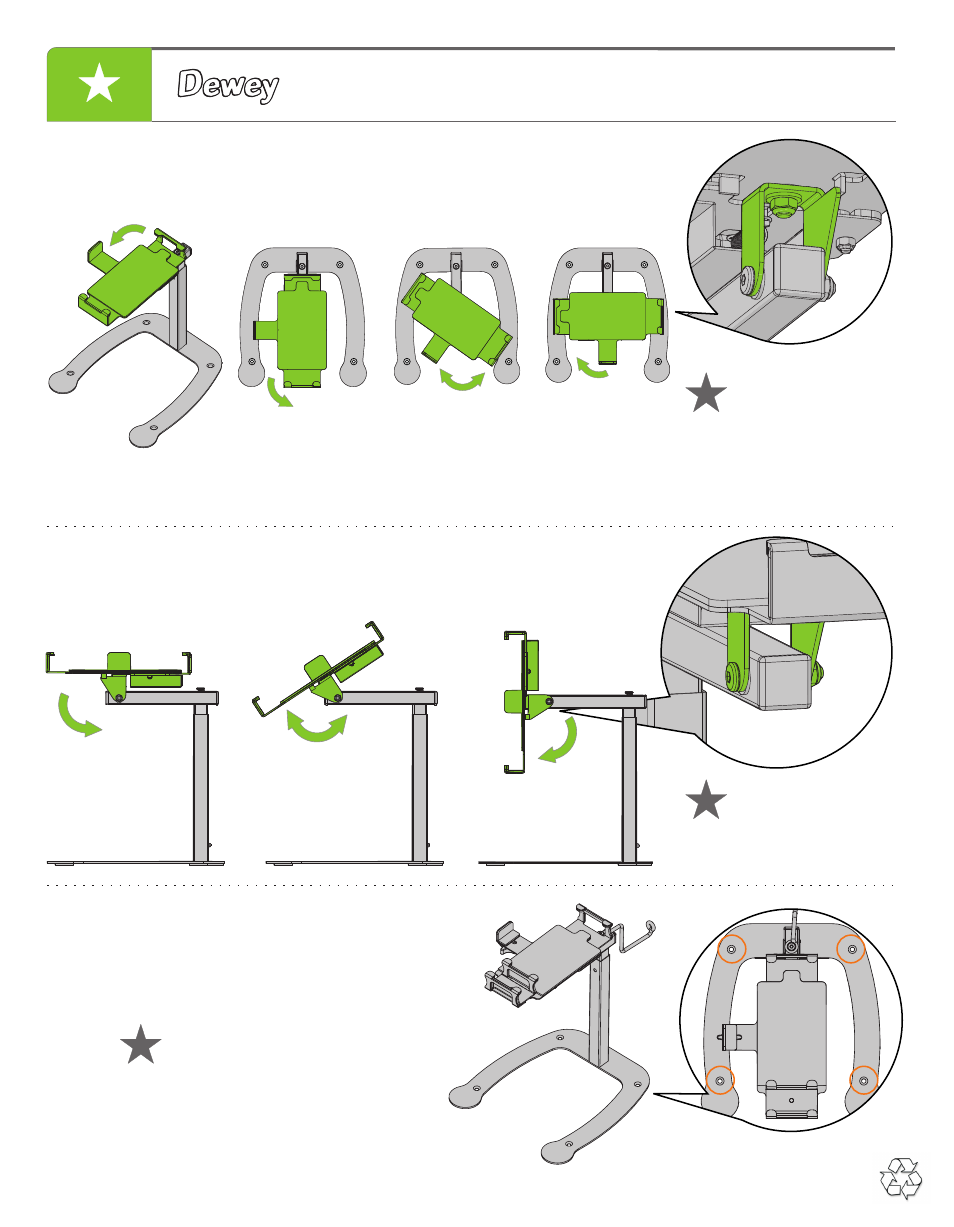

Holding onto top Mechanism - tilt between Document Camera Position and Stand Position
the Document Camera Stand - Tips for Use
Changing from Document Camera to Stand Position
Holding onto top mechanism - turn iPad® 90 degrees
NOTE: Sometimes when you rotate the iPad® your projected image does not rotate, in that case you need to tilt down
the top mechanism to allow the iPad® to adjust
To Change Projected Image
If folding tension ever
needs to be tighter,
tighten this nut & bolt
with 10mm wrench
and the provided allen
If swivel tension ever
needs to be tighter,
tighten this nut with
10mm wrench.
Landscape Position Portrait Position
10
Mount Dewey to a surface using the holes on the base.
Securing Dewey to a Surface
The holes are made for 1/4” or M6
bolts/screws.
The length of your hardware depends
on your surface thickness.
