7

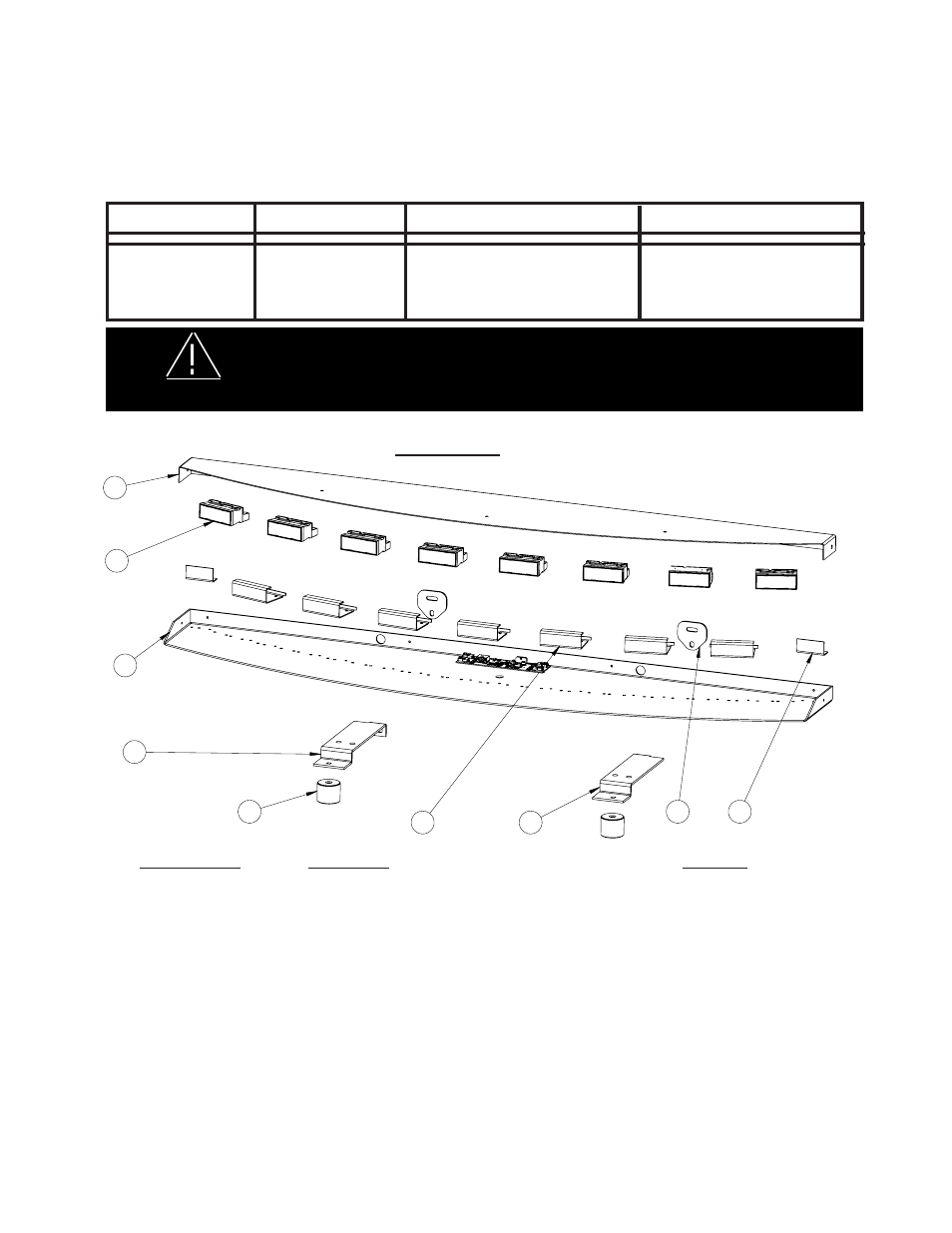

Parts List
Reference Number Part Description Part Number
1 Outer Panel T14512
2 Tri-Core ® Module *Contact Code 3, Inc for P/N
3 Chassis -'09 Impala T56352
4 Mounting Brkt. Drvr Side-'09 Impala S24108
5 Mounting Brkt. Pass Side-'09 Impala S24109
6 Mounting Plate Impala T09652
7 End Blank Panel Filler Brkt Small T56354
8 Mounting Bracket Spacer Bushing-'09 Impala T14697
9 2.75" Blanking Bracket T56353
Troubleshooting
All WingMan™ Products are thoroughly tested prior to shipment. However, should you encounter a problem during installation or
during the life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be
obtained from the factory technical help line at 314-996-2800. Follow the guide below for information on repair and troubleshooting.
TROUBLESHOOTING GUIDE
Note: TriCore ® Modules must be replaced as a module. There are no user serviceable parts.
PROBLEM
TriCore Module not
operating when
powered.
QUESTIONS POSSIBLE CAUSE
a. Bad power/ground
connection.
b. Defective module.
SOLUTION
a. Fix connection.
b. Replace module
N/A
Any disassembly of any of the TriCore light heads will result in loss of warranty coverage on the
equipment.
WARNING!
1
2
7
3
9
8
4
6
5
