Attaching the pivot arm brackets – Code 3 SuperVisor for Chevy Tahoe User Manual
Page 5

5
FIGURE 6
FIGURE 7

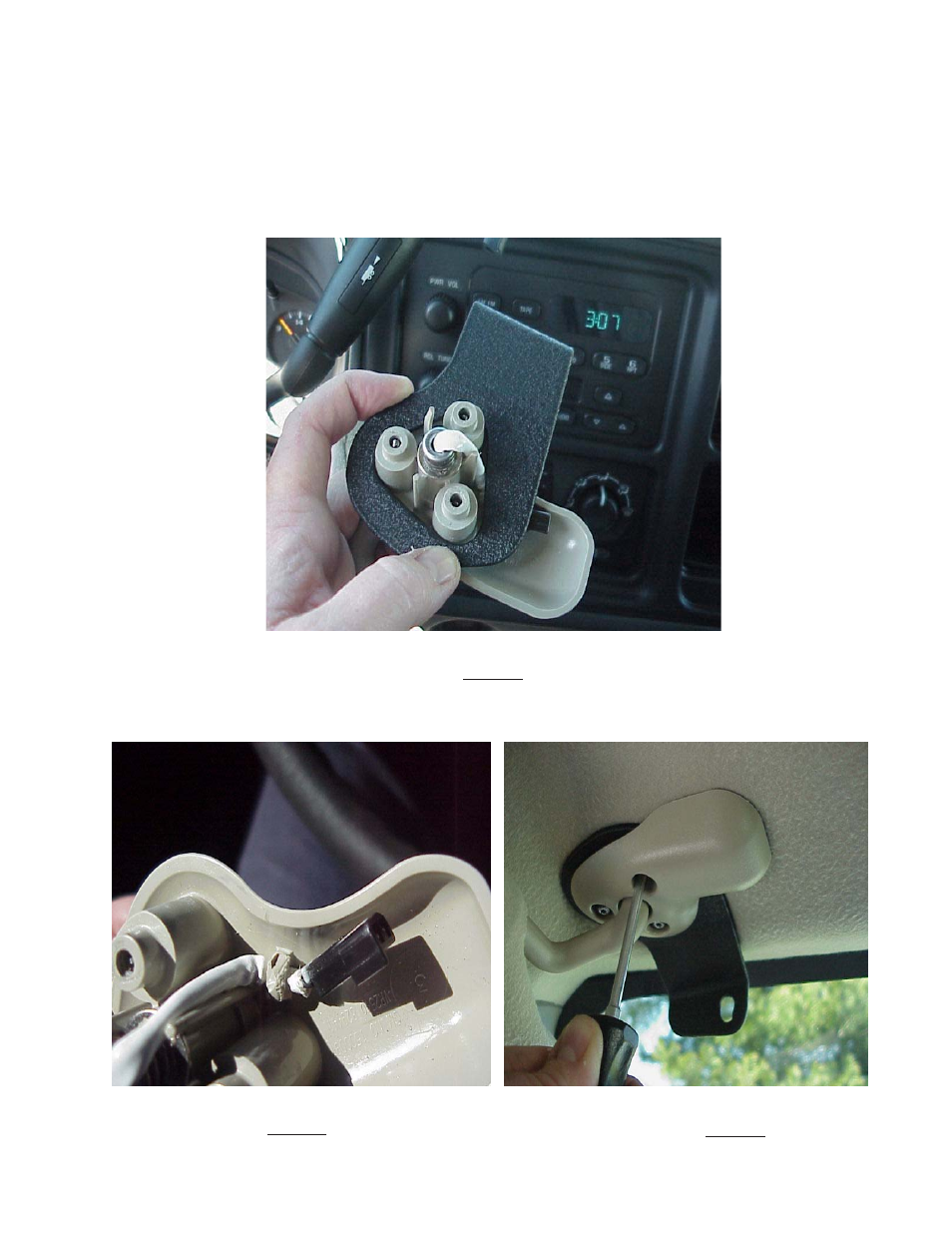

Attaching the pivot arm brackets
Attach the outer brackets that are supplied noting the difference between passenger and driver side brackets. Position the driver's
side bracket on the driver's side sun visor's pivot arm (as shown in Figure 6). Check that the bracket fits flat against the plastic sun
visor's pivot arm bracket. If the outer bracket does not fit flat it may be necessary to trim some material from the wire staking area
which holds the visor vanity light wire in position (see figure 7). Attach the driver's side bracket to the headliner with the inner torx
screw (as shown in figure 8). Next, move the sun visor over to gain access to install the other two torx screws. Do not tighten the
screws at this time. Repeat the same proceedure to attach the passenger's side outer bracket.
FIGURE 8
------Wire staking area
----------------------------------------------
