LC-LED Light Head Flash Pattern Selection
The LC-LED light heads are equipped with one steady burn and three flashing patterns. To select a different flash pattern, apply +12
or +24 VDC to the red wire and connect the black wire to the power supply ground. The unit will flash in whatever pattern was last set.
Change the pattern by momentarily touching the white wire to the power supply ground. The flash pattern will change to the next
pattern according to the following list:
-Steady Burn
-75 FPM Single
-75 FPM Quad
-Cycle Flash
Continue to cycle through the various patterns until the desired pattern is selected. The unit will retain this pattern even when power
is removed. Note: The white flash pattern selection wire must be protected from contact with the system ground to prevent
inadvertent changes to the flash pattern. This can be accomplished by sealing or capping the end of the wire.
For units that are flashed with an external control system such as a multiplexer or a flasher unit, the heads should be set to steady
burn. Note: Regardless of the location in the program in the flash pattern list, the unit can be forced to steady burn by permanently
electrically tying the white wire to the black wire.
It is recommended that all heads be set to the desired pattern at a workbench prior to installation.
Directional module Flash Pattern - Table 2
Flash Pattern Description
Cycle Flash Cycles through various patterns @ 70 fpm
Steady-Burn Steady-Burn
Five Flash Five Pulses per flash @ 70 fpm
Quad Flash Four Pulses per flash @ 70 fpm
Triple Flash Three Pulses per flash @ 70 fpm
Double Flash Two Pulses per flash @ 70 fpm
Fast Double Flash Two Pulses per flash @ 85 fpm
NFPA Four Pulses, 70% Duty Cycle @ 75 fpm
Quad Pop Flash Four Pulses per flash ( 3 equal, 1 extended) @ 70 fpm
Triple Pop Flash Three Pulses per flash ( 2 equal, 1 extended) @ 70 fpm

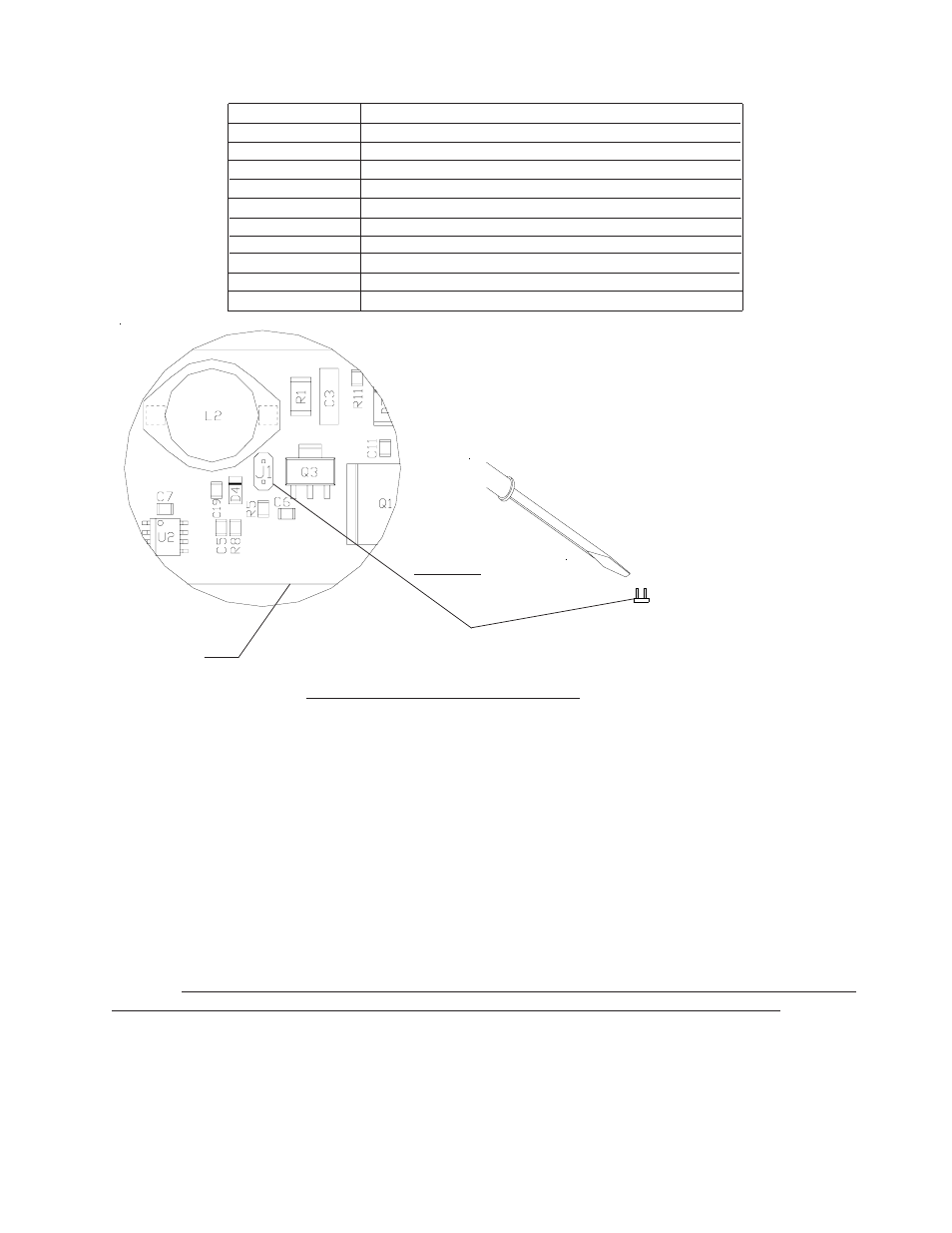

FIGURE 33
Flash Pattern Header for OPTIX/LEDX
J1
PCB
Momentarily short and release
to change patterns
