Pattern Selection
Introduction
The Central Controller is designed to offer user selectable traffic directing signals and traffic warning options.This allows the greatest flexibility when
controlling the various RX 2700 configurations available. The end user can match the desired signal to a particular lightbar configuration whether it is
a 6, 7 or 8 lighthead configuration.
The lightbar will come from the factory with the default patterns selected as indicated in Table 2. The default configuration will be for a 7 head system
with all building patterns ( Building 7 HD ). If it is desired to change the pattern in any of the modes ( LEFT, CTR, RIGHT or FLASH ) or if you have
other then a 7 head system (6 or 8 head ) and you want to optimize the patterns for your particular configuration, then follow the programming
procedure outlined.
The Central Controller's Steady Burn feature allows up to two (2) of the light
bar's LED modules to be designated to operate in Steady Burn mode. The
Steady Burn LED modules are always connected to connectors P9 & P10.
The Steady Burn outputs are enabled by the 3-Level control inputs. The
Central Controller may be configured so that Steady Burn LEDs are on when
either L1, L2 or L3 are active (JP1 position); when L2 or L3 are active (JP2
position) or just when L3 is active (JP3 position). Simply move the jumper to
the appropriate location (JP1, JP2 or JP3). Refer to the detail in Figure 1.
7

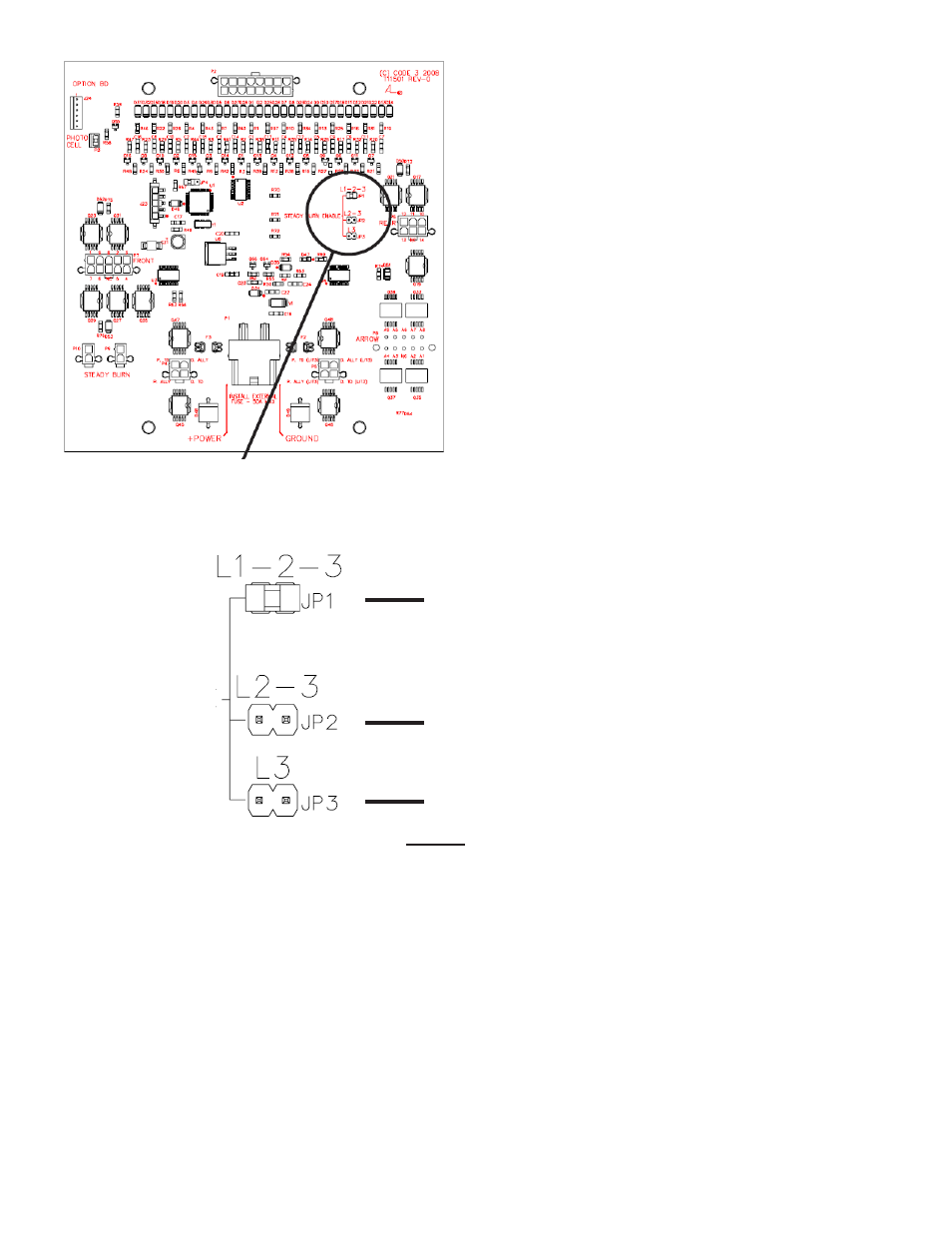

FIgURE 1
Steady
burn
Enable
Steady Burn L1, L2 & L3
Steady Burn L2 & L3
Steady Burn L3 only
Steady Burn Jumper Position
