Maintenance
Lens Cleaning
Use plain water and a soft cloth, or Code 3® lens polish and a very soft paper towel or facial tissue. Because plastic scratch-
es easily, cleaning is recommended only when necessary (about every six months). Do not subject the lenses to car washes
that use brushes, as these will scratch the lenses.
Lens Removal

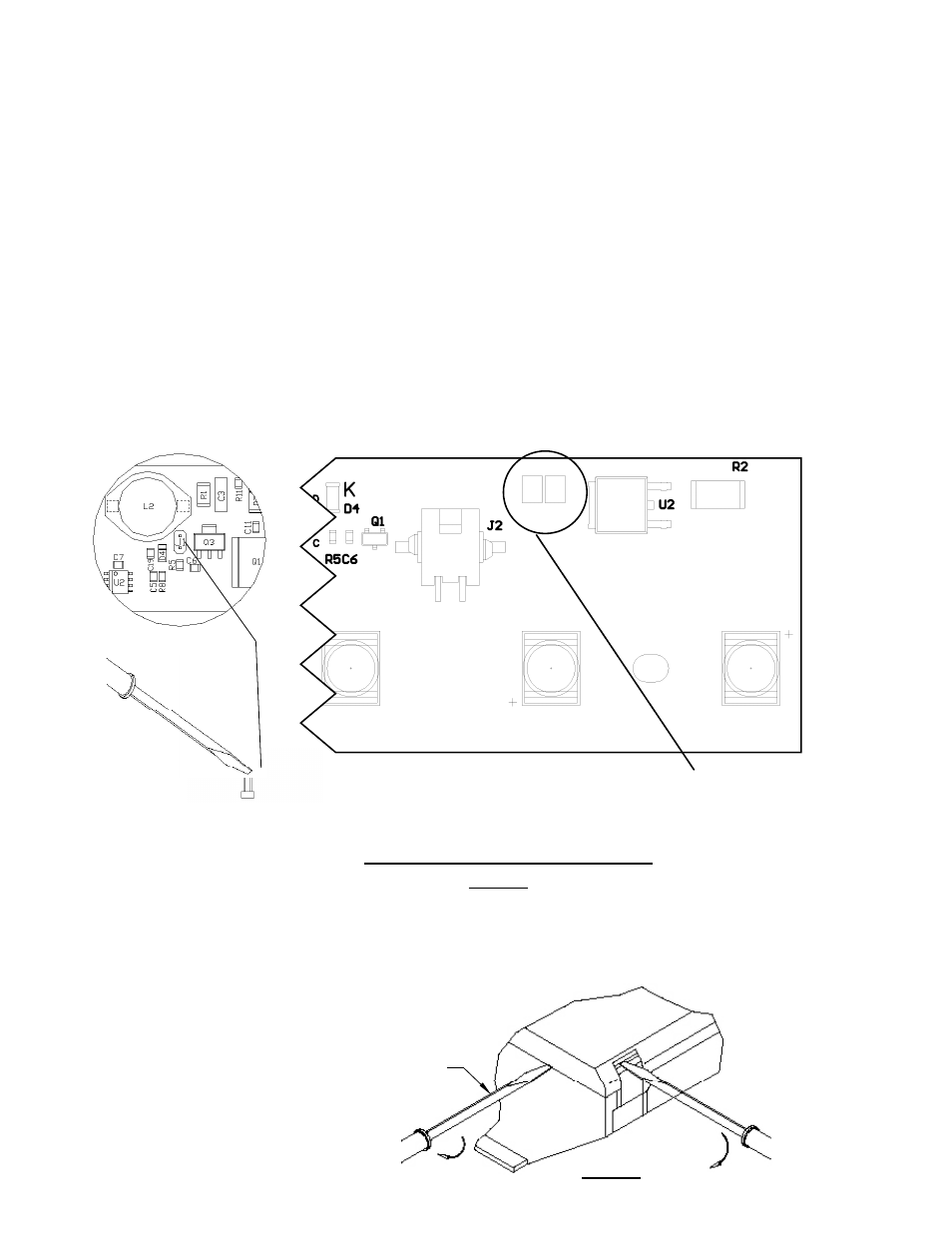

First, disengage the lens clips
(4 per lens) as shown in Figure 2.
Finally, insert a screwdriver into
the small slot in the lens clip pocket
or the lens edge, and twist the
screwdriver to lift the lens.
FIGURE 2
Twist to
Lift Lens
Pry Up to
Remove
Lens Clip
FIGURE 1
Directional module Flash Pattern - Table 2
PCB (Color - Green)
Flash Pattern Header for OPTIX/PriZm II
J1
Momentarily short
and release to
change patterns
PCB (Color - Black)
PCB
FOR APPLICATIONS USING
INTEGRATED PCB/LIGHT ENGINE
(ONE-PIECE)
FOR APPLICATIONS USING
SEPARATE PCB & LIGHT
ENGINES
Located on rear of
PCB
Located on front of
Integrated PCB/
Light Engine
Refl ector removed
for clarity
Flash Pattern Description
1. Cycle Flash (DEFAULT)-------------Cycles through various patterns @ 70 fpm
2. NFPA Quad Flash 80 FPM----------Four Pulses per fl ash @ 80 fpm
3. Steadyburn------------------------------Steady-Burn
4. Five Flash 150 FPM------------------Five Pulses per fl ash @ 150 fpm
5. Quad Flash 150 FPM-----------------Four Pulses per fl ash @ 150 fpm
6. Triple Flash 150 FPM ----------------Three Pulses per fl ash @ 150 fpm
7. Double Flash 150 FPM---------------Two Pulses per fl ash @ 150 fpm
8. Single Flash 150 FPM----------------One Pulse per fl ash @ 150 fpm
9. Single Flash 250 FPM----------------One Pulse per fl ash @ 250 fpm
10. Single Flash 375 FPM---------------One Pulse per fl ash @ 375 fpm
11. Triple Pop Flash 75 FPM------------Three Pulses per fl ash ( 2 equal, 1 extended) @ 75 fpm
12. Quad Pop Flash 75 FPM------------Four Pulses per fl ash ( 3 equal, 1 extended) @ 75 fpm
13. Single Flash 75 FPM------------------One Pulse per fl ash @ 75 fpm
14. Double Flash 75 FPM-----------------Two Pulses per fl ash @ 75 fpm
15. Triple Flash 70 FPM ------------------Three Pulses per fl ash @ 70 fpm
16. Quad Flash 70 FPM ------------------Four Pulses per fl ash @ 70 fpm
17. Five Flash 70 FPM --------------------Five Pulses per fl ash @ 70 fpm
18. Mod Flash
19. Action Flash
