4
The Model PSE-690 Strobe Power Supply is NOT waterproof and should be located in an
area protected from the weather and water.
WARNING!
Installation and Mounting

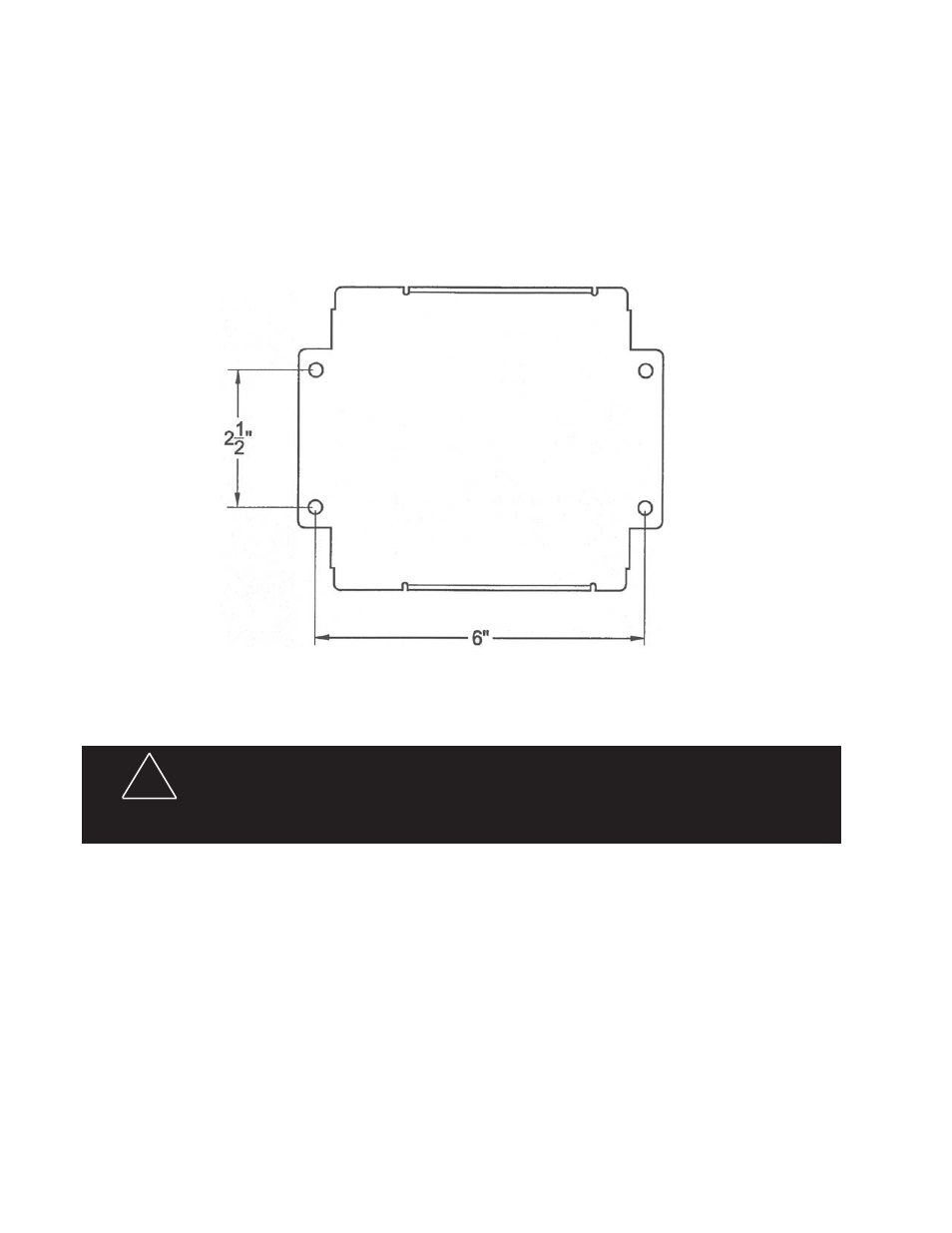

1. First install the PSE-690 strobe power suppy in a protected location using the power supply itself as a
template. THE POWER SUPPLY MUST BE MOUNTED TO A METAL SURFACE. Make sure all socket
connectors are easily accesible.
Wiring
1. Install the strobe light heads in the preferred locations.
2. String the 3-conductor cables between the lights and the power supply. Make sure the cable is secure along the
chosen routing inside the vehicle to prevent it from damage by chafing or binding. Be sure to keep the cable away
from engine hot spots.
3. Insert the pins on each end of the conductor cables into the AMP connectors. Each end of these cables has three
pins factory crimped onto each of the three wires. See Figure B on next page for Pin Insertion order.
!
