Code 3 LED X Side-By-Side User Manual
Page 7
7

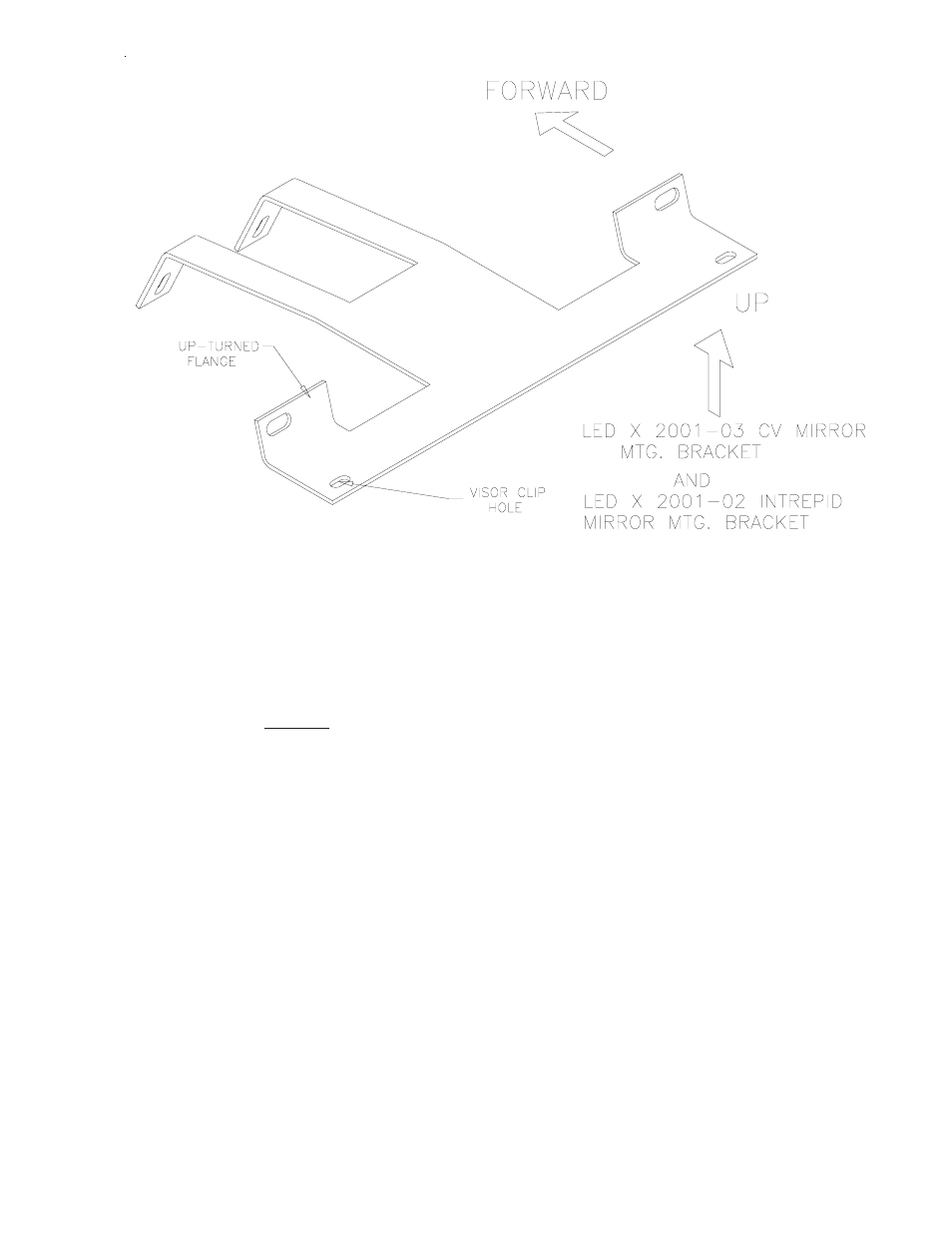

Installation and Mounting
1) Remove sun visor clips.
2) Slide bracket between the headliner and the roof of car.
3) Horizontal slots on up-turned flange of bracket will align with existing holes in roof.
4) Slots on flat part of bracket will align with the hole for the sun visor clips.
5) Run T01072 5/16" - 18 sheet metal screws through slot in up turned flange into holes in roof.
6) Re-attach sun visor clips through slots on the flat part of the bracket.
7) Attach LED X unit to bracket.
