BoonDocker POLARIS: Non-turbo Control Box 2013 PRO 800 Installation User Manual
Page 2

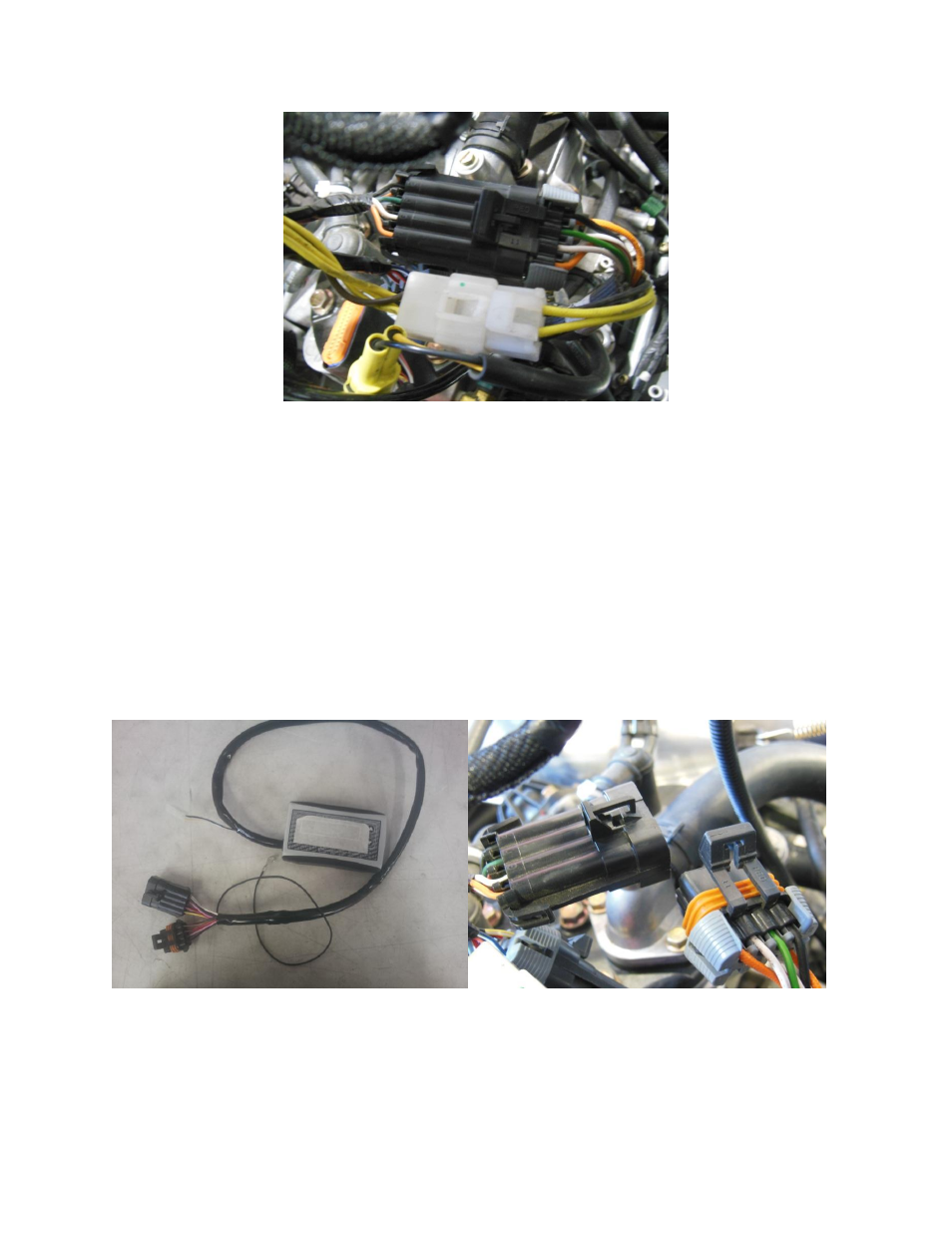

1. Locate the 8 position EFI connector (Near ECU) be sure the colors match the description below.
There are 2 identical connectors near the ECU.
Note: WIRE COLORS: (A-H) BLUE, RD/WH, RD/DARK BLUE, DARK BLUE/WH, YE/WH, RD/DARK BLUE,
(G) Unused, BK/DARK BLUE
2. Rout wiring harness so it is away from all moving parts and heat sources. Zip tie harness to keep
secured.
