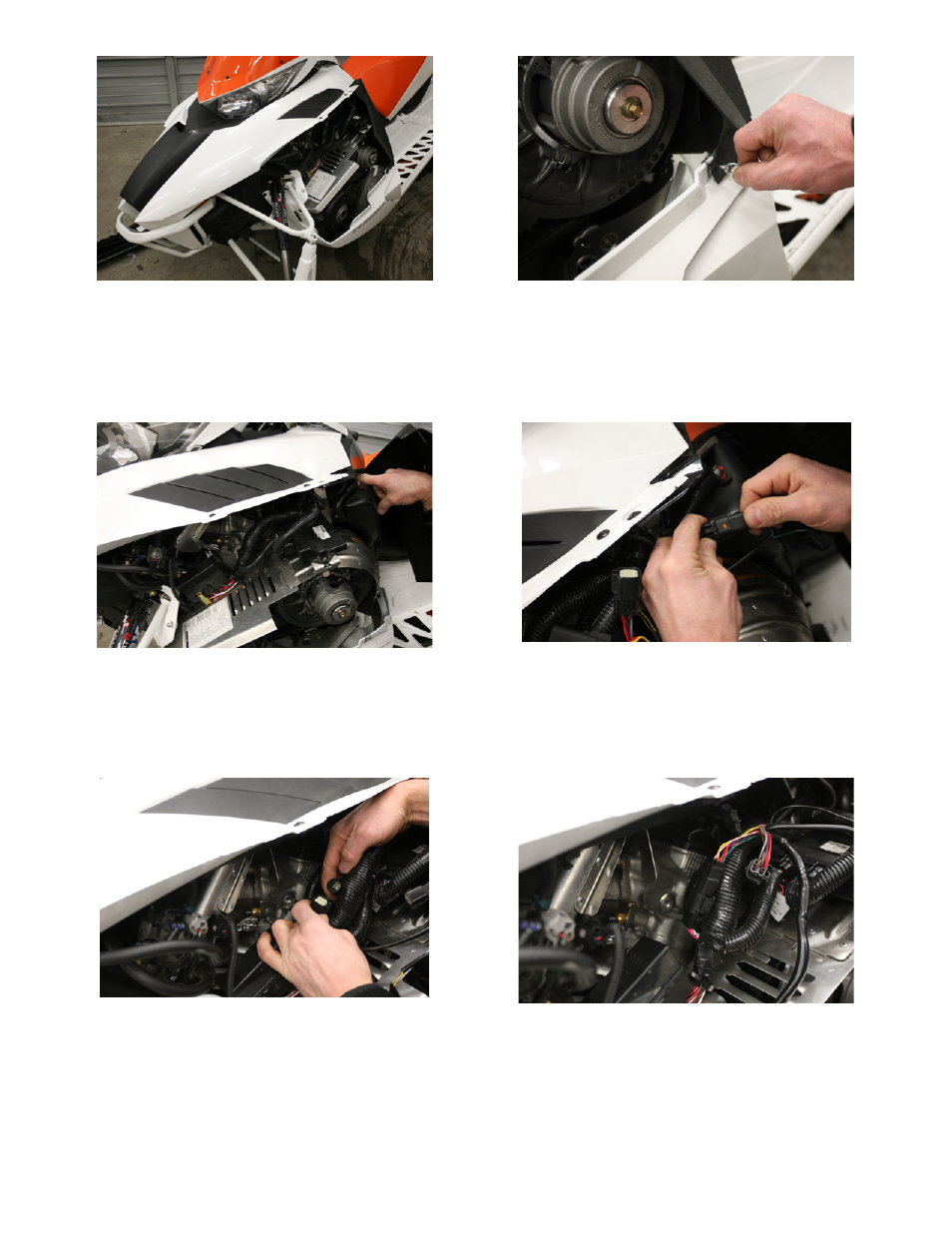

1. Remove side-panel on clutch side by removing the

cotter pin located behind the upper a-arm.

2. Un-fasten the dzus fastener on the bottom of the rear

cowl next to the footwell.

3. Pull back the cowl and locate the MAP sensor. Re-

move the stock connector from the MAP sensor.

4. Plug the matching EZ-Jacker connector into the MAP

sensor and the stock MAP sensor connector into the
other matching EZ-Jacker connector.

5. Locate the stock EFI connector.

6. Plug the matching EZ-Jacker connectors inline with

the EFI connector.
