7 3700LP Bench Scale Series User’s Manual
If your system is configured for printing of weights and you have a printer
properly connected to the scale, the printer will print the weight information
either
• after the weight is stable or
• after the item is removed from the scale, depending on the configura-
tion settings. See the Service Manual for information on configuring the
scale.

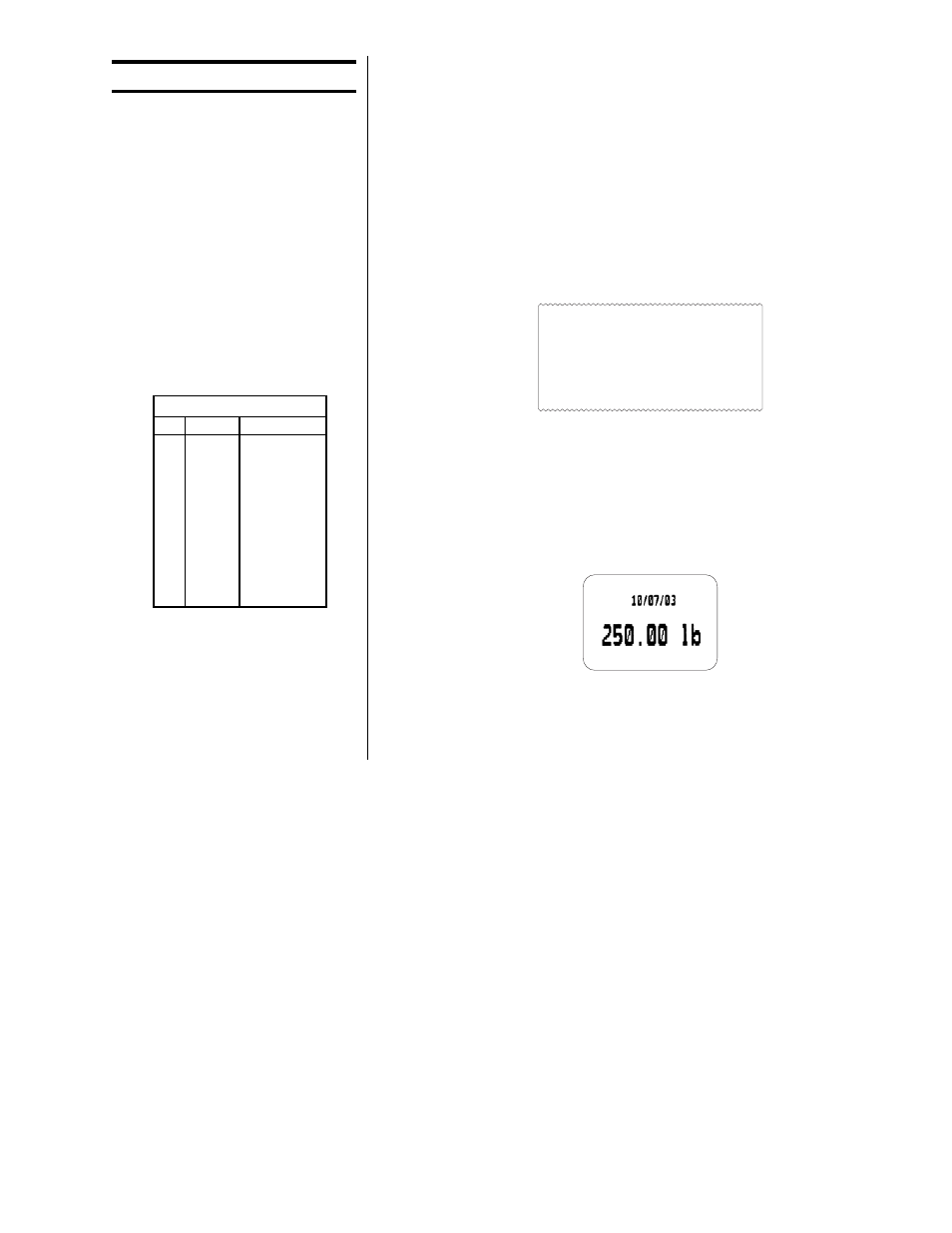

Output depends on the printer and paper/label stock being used. Figure 2
shows a sample printout on a papertape printer (such as the WP-234) when
time and date are installed. If time and date are not present in the printer,
just the weight and unit of measure are printed.
Printing Output
10/07/03
28.01 lb
Figure 2
Papertape sample printout
Figure 3 shows a sample printout from a label printer (such as the Zebra LP-
2844) on 1.2" x .85" label stock. This sample shows the date. If your printer
is not equipped with time and date capability, the date will not be present.
Figure 3
Small label sample printout
(1.2" x .85")
For detailed printing protocol
information, see the section
titled RS-232 Protocols.
DE-9 Female Scale
Pin Name Direction
1. JMP 1 -
2. TXD OUT
3. RXD IN
4. JMP 1 -
5. SG -
6. JMP 1 -
7. JMP 2 -
8. JMP 2 -
9. NC -
Serial Connector Pin-out
Date information is supplied by
the printer, not by the 3700. If
your printer does not have date
capabilities, the printout will not
show the date.
