Connect Frame to Tent

–Insert one end of main tent pole

onto pin, of pin & ring system, at
tent corner. (illus. 4)

–Go to opposite end of pole and

gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.

–Repeat for second pole.

13 x 11 Outsider

Tent

1

Layout & Positioning
of Tent, Pole Assembly

–Layout and position tent with door

facing desired direction. (illus. 1)

–Unzip door.
–Stake down tent corners, and tent

sides using the rings at the end of the
stake loops and the side stake loops.
(illus 2) Keep the floor taut.

–Assemble frame poles by interlocking

shock-corded poles. This will make two
long poles.

–Insert the poles diagonally into pole

sleeves.The center of the poles should
cross forming an “X” in the middle of
tent. (illus. 1)

–Fasten frame tie on top of tent over

both poles. (illus. 1), (illus. 3)

2

When You Are Ready To Set Up
Your Tent

–Select a level campsite clear of rocks,

branches and other hard or sharp objects.

–Do not set up your tent under trees.
–For best results in windy conditions, do not

position the door of tent into the wind.

–See owners manual for more tips.

Rainfly

Pole

Rainfly Part No. 9261-833

Main Tent

Poles

POLE ASSEMBLY PARTS

Assembled poles

inserted through

pole sleeves

Frame tie

Instructions apply to Part Number 9261A131

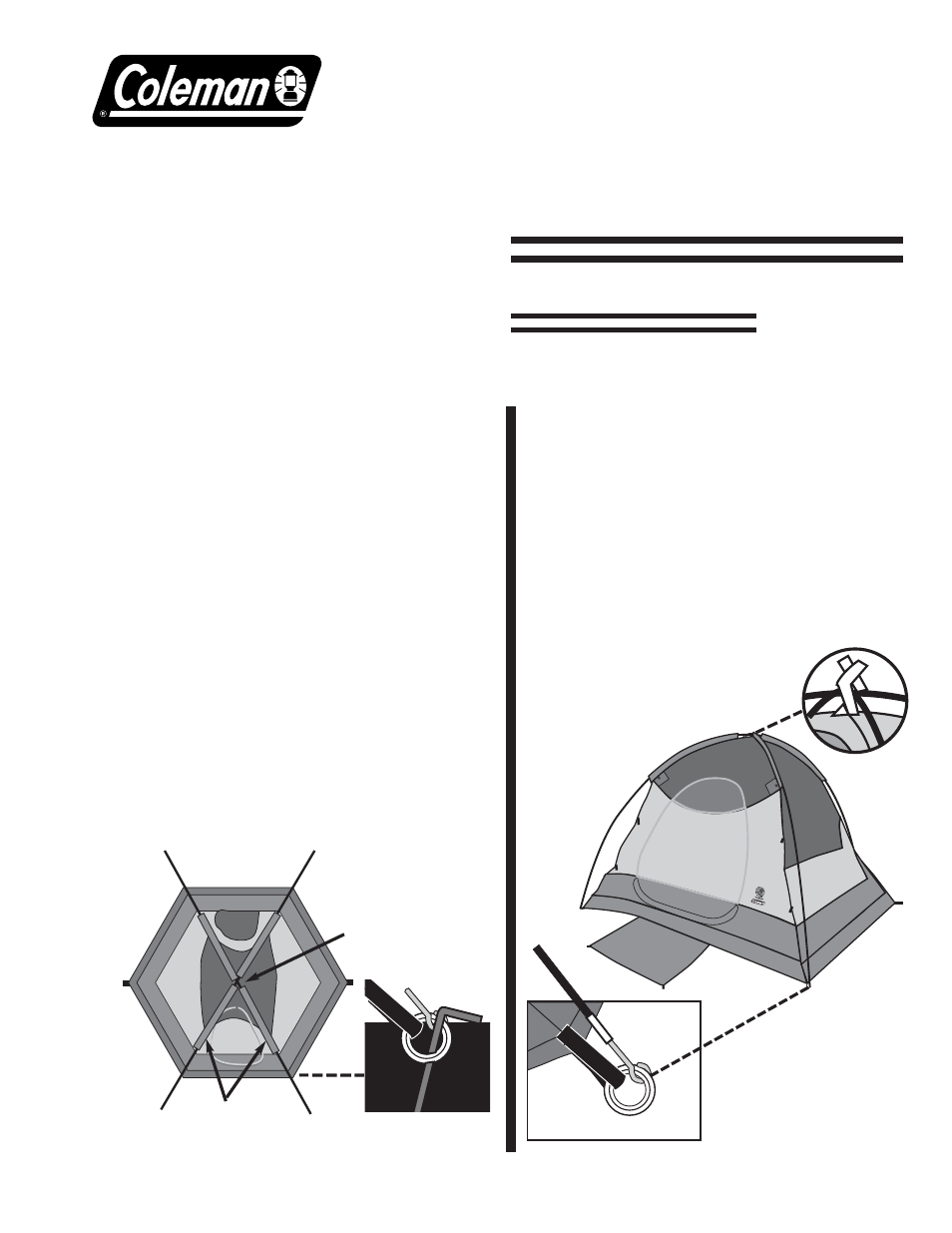

illus. 1

illus. 2

Tent stake

through ring

illus.4

Insert pole tip onto
pin & ring

Tent frame

set-up

illus. 3

Frame tie

Part No. 9261-831

Part No. 9261-832
