4.0 OPERATION
Operation covers those steps that must be taken to enter a weld schedule and perform
a weld.
Ensure that the operator has installed the Model 205 per Section 3.0 and has a good
understanding of system functions (Section 4.1).

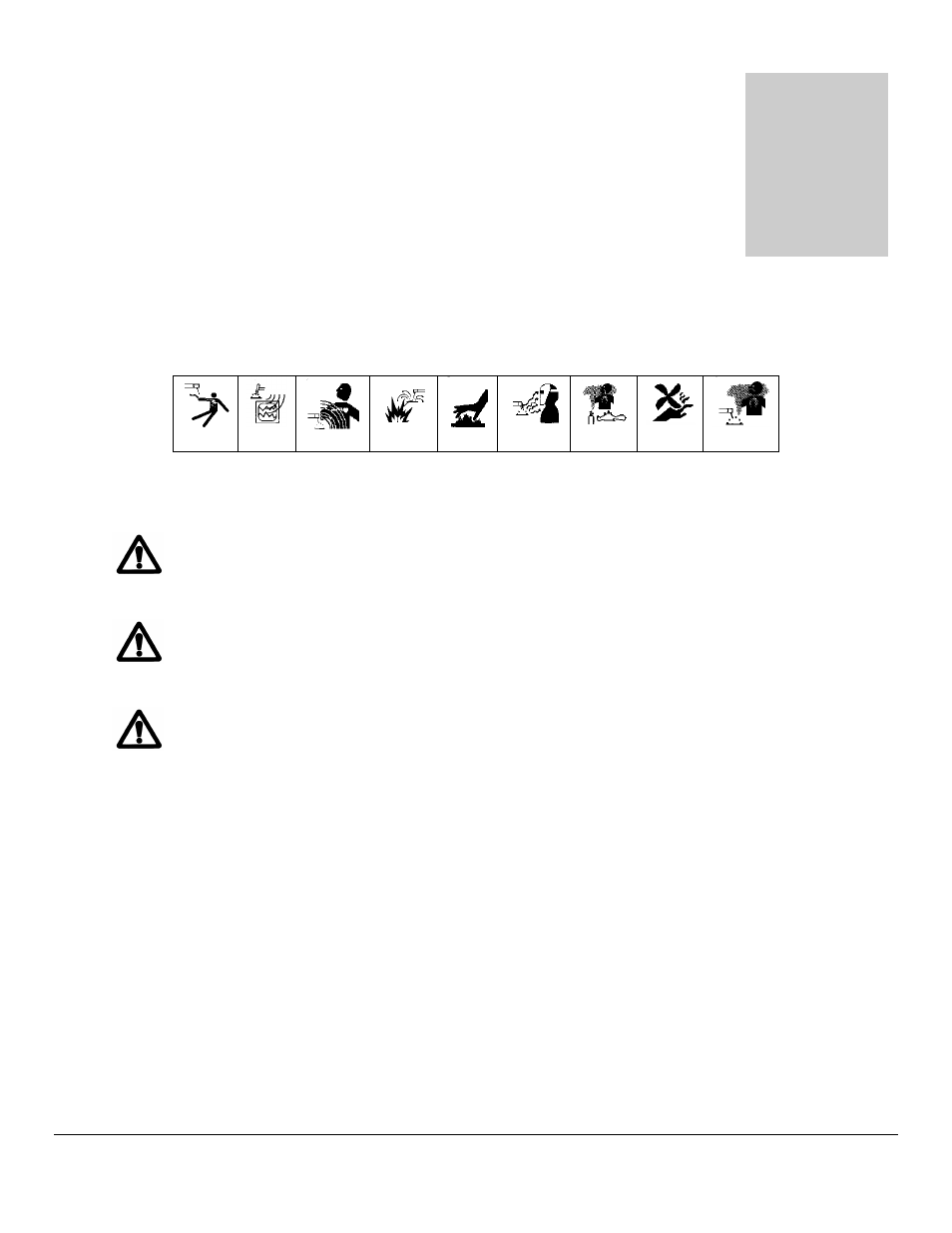

Ensure that the system is protected against dirt, dust, etc. NEVER GRIND NEAR AN
EXPOSED WELDHEAD OR THE MODEL 205.
Protect the system from water and liquid spray. Do not use the system if excessive
moisture is present.
4.1 SYSTEM FUNCTIONS
The Model 205 is intended for use with AMI or EXEL orbital welding heads and has
functions designed for these weldheads. This section describes what these functions are
and may, where needed for clarification, indicate how they are commonly, but not always,
used.
• LIBRARY - The heart of the Model 205 is its MEMORY. The values of each parameter for a
given weld are only programmed one time. After that the Model 205 will store the parameter
values by schedule NAME, DIAMETER, WALL thickness, and MATERIAL.
The operator may find a particular weld schedule by scrolling through the library listings or
by using the SEARCH feature which can search by DIAMETER, WALL thickness or
MATERIAL.
