Preferences can also be used to change the order that they appear on the

screen.

To set preferences select "Edit" and then select "Preferences". A combo

box with the functions that can be changed will appear. Highlight the

function to be changed and select "Edit" (under the box). A dialogue

box with buttons for One Level, Multi-level or Eliminated will appear.

Select the desired button and select OK.

Select "Next" and a combo box will appear showing all the multi-level

and single level functions in the order they appear on a weld schedule.

To change the order, click and drag the function to the desired order

of appearance. Select "Finished".

5.18

CMOS Battery Replacement

Required

Equipment

#2 Phillips screw driver

CR2032

battery

Document

45D150143

Procedure

Power off the M415 Power Supply

Using the screwdriver, remove the front and rear top covers

Locate the CMOS battery on the motherboard (Note: the M415 will have either an EP811 or a
SBC84710 motherboard – reference Figures 6 and 7)

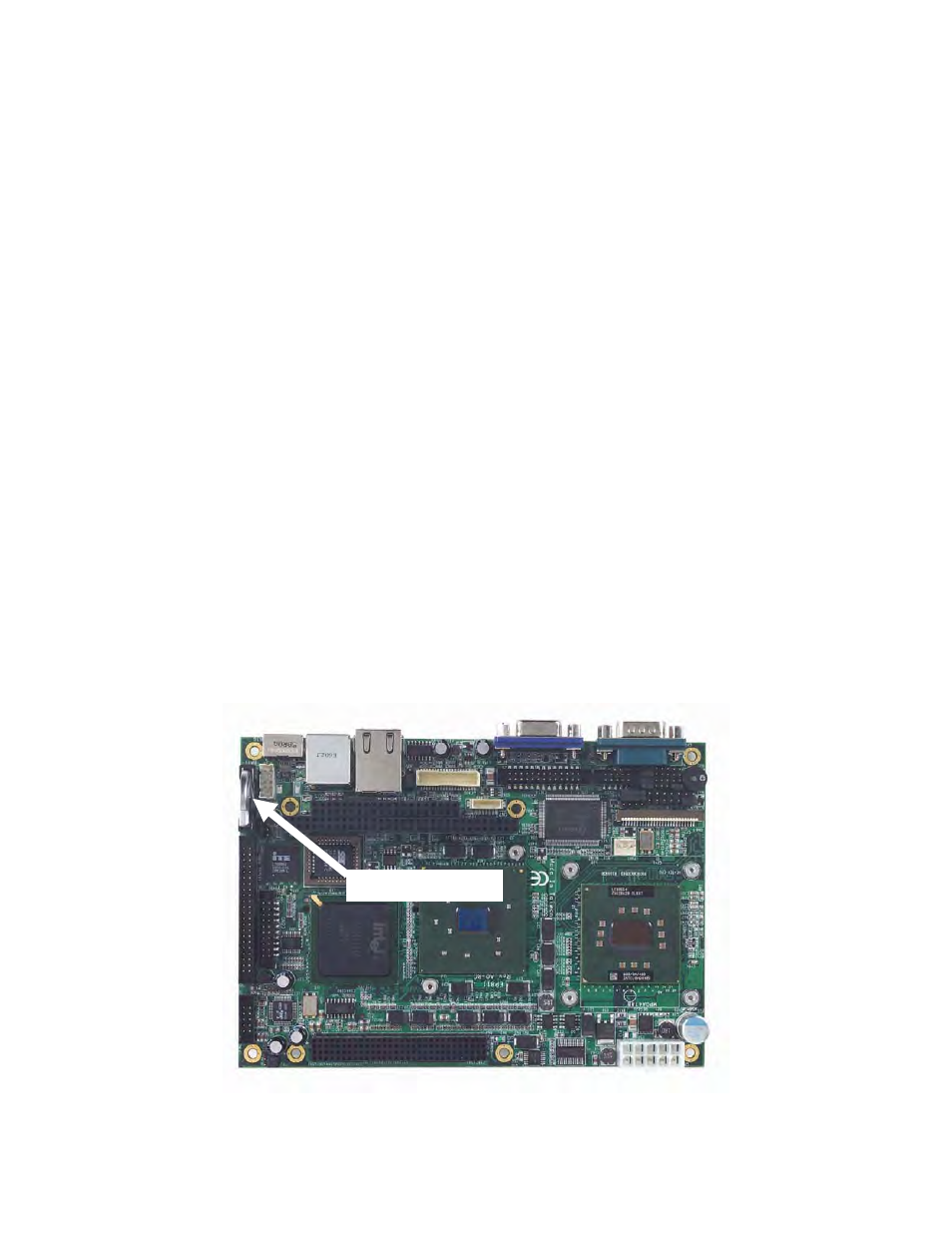

CR2032 Battery

Figure 6 EP811 Motherboard

Document No. 740084

Revision N
