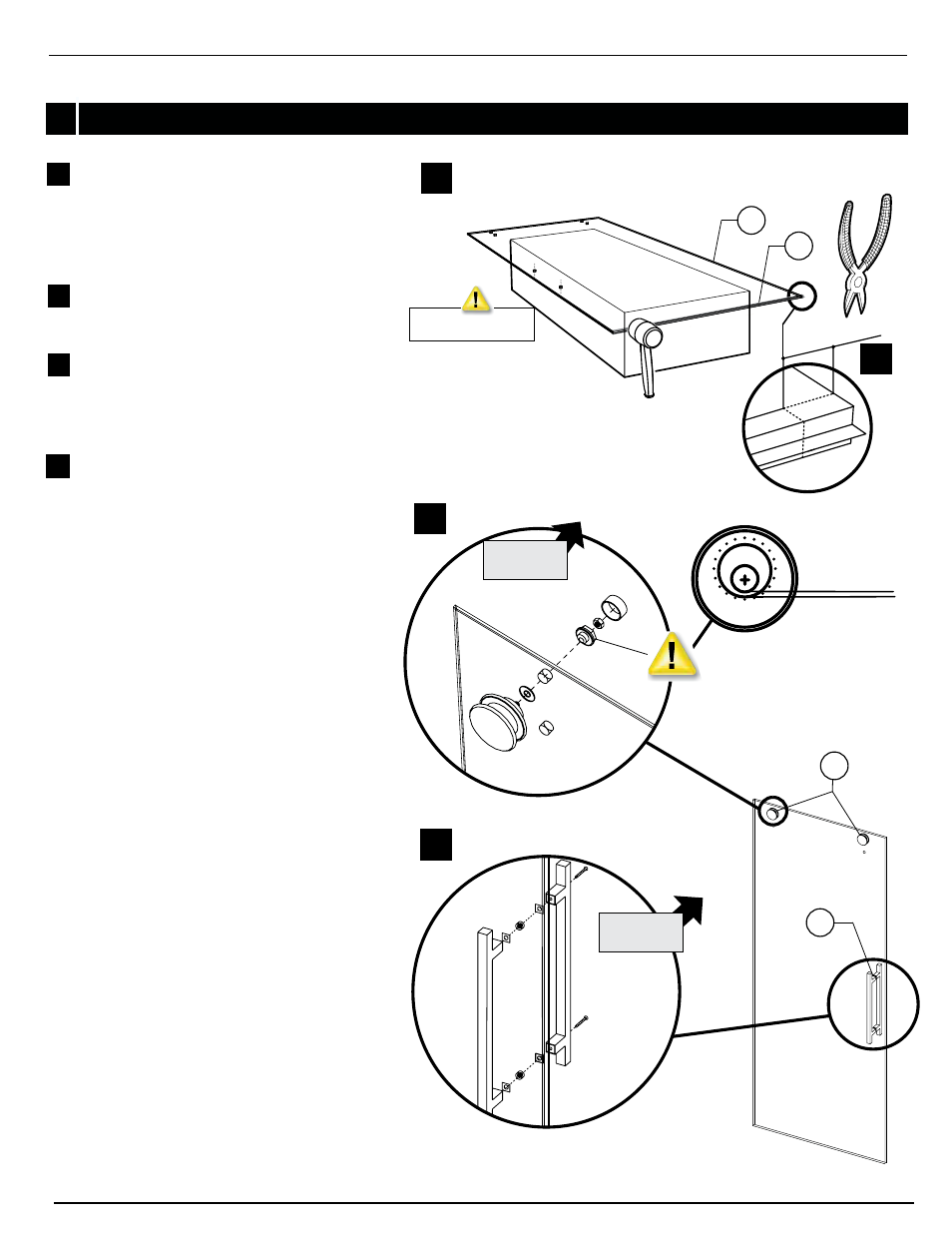

2 DOOR PANEL ASSEMBLY
Use a mallet to install bottom gasket (7)
on the bottom of the door panel (9). To
facilitate installation place door panel on
cardboard packaging box and use as
platform. Notice the holes are situated at
the top of the panel.
Measure and cut 3/8” off the edge of the
gasket. Cut opposing side of door handle
holes.
Install both rollers (11) through the top
holes of the door panel. Be sure that the
adjustment wheel is turned to position
the minimum thickness of wheel towards
the bottom.
Install door handle (19). Holes for screws
are located on the back handle and must
be located in the interior of the shower
door.
