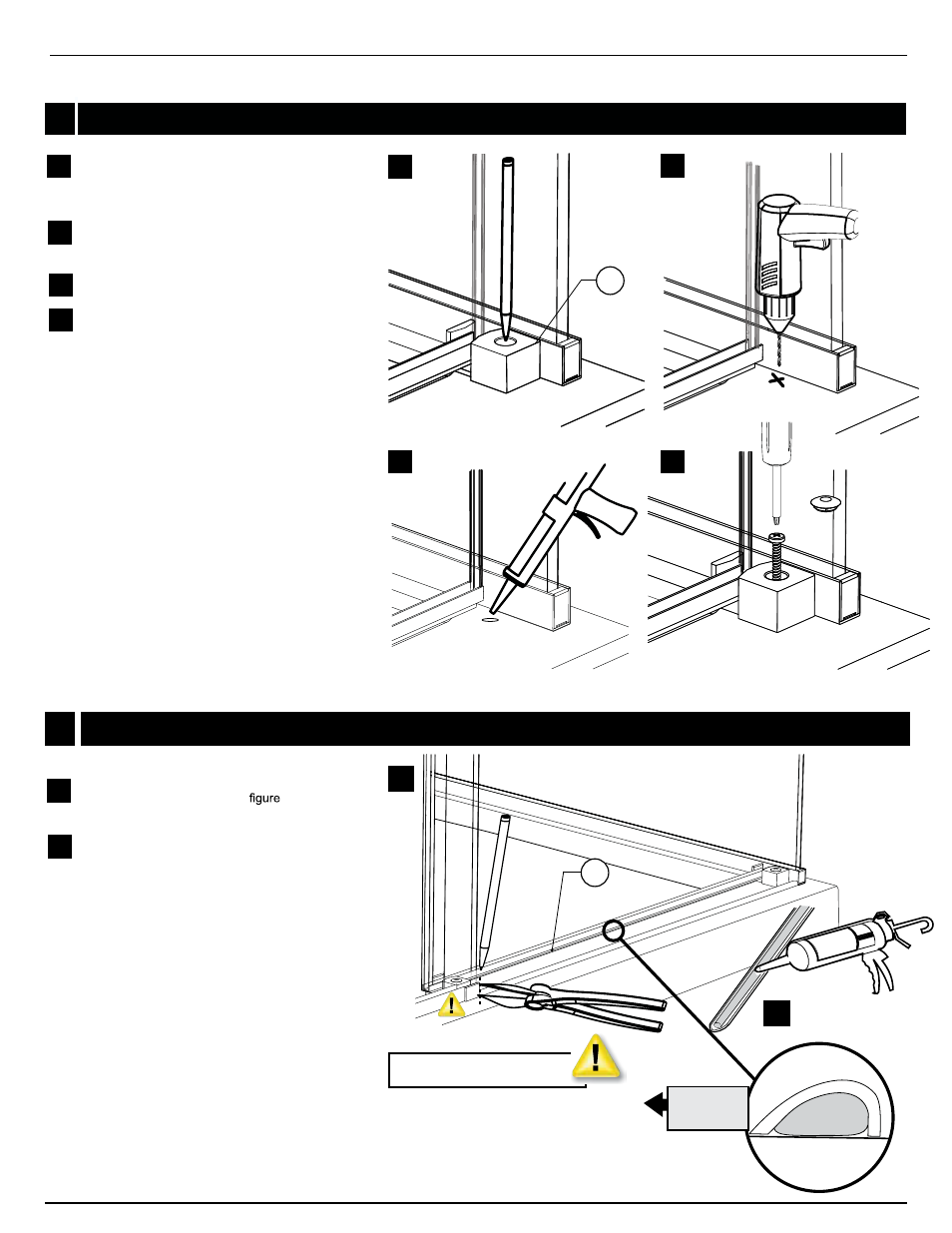

14 DOOR RECEIVER INTALLATION
place door receiver (18) against wall, place so
that the door panel slides smoothly into
receiver. m ark hole location.
r emove door receiver and drill in marked
location with 1/8” drill bit.
Insert one drop of silicone into hole.
r eposition and secure in place with provided
screw then cap with screw cap.
place threshold (8) between return panel u-channel
and bottom guide as shown in 15a. Cut off any
excess length.
apply silicon on the bottom of threshold as indicated
in 15b. Secure threshold in place.
14a
14b
15a
15b
14c
14d
THRESHOLD 15
