THRESHOLD INSTALLATION
INSTALLATION MANUAL
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE

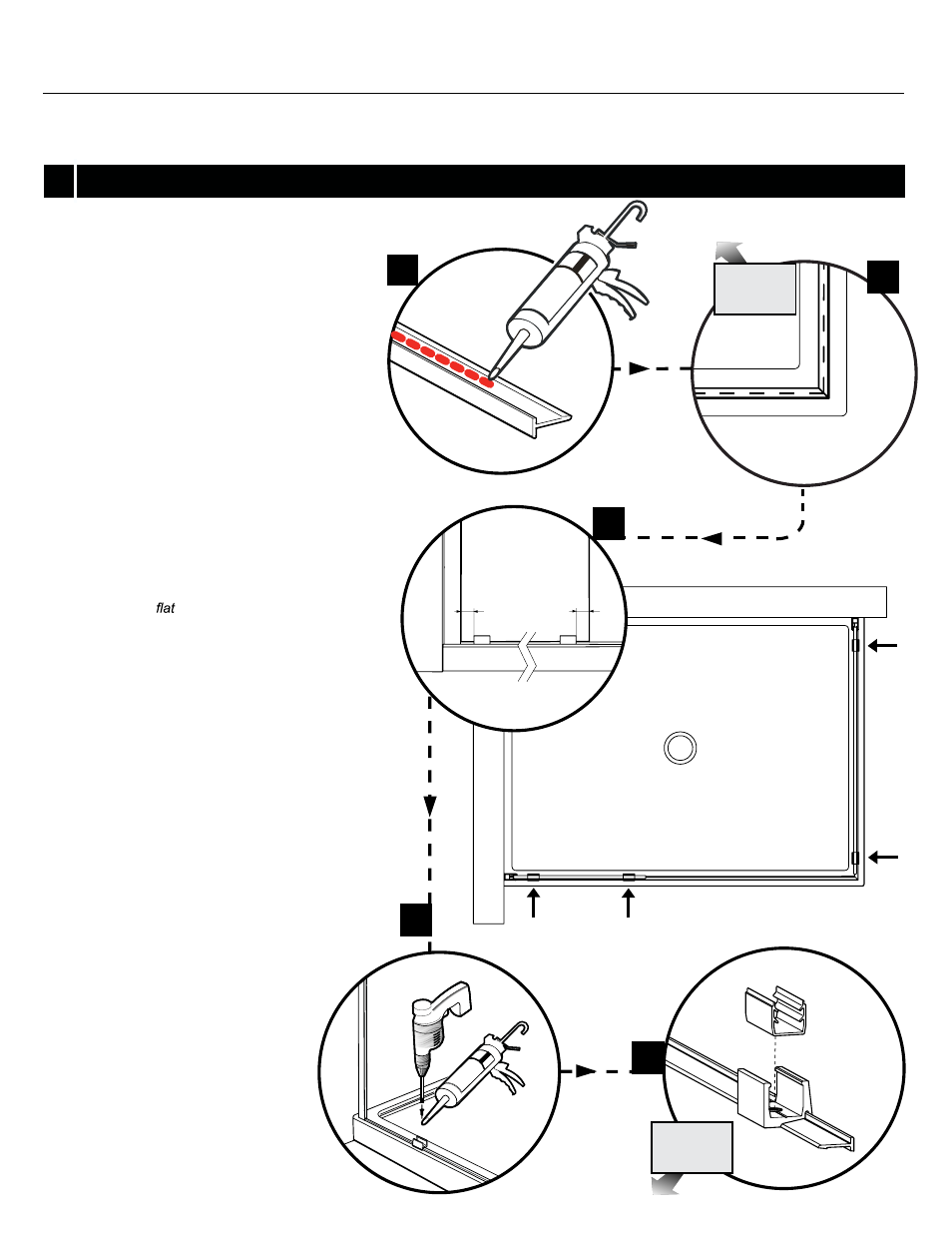

Place silicone under the threshold.
Place the threshold extrusion on the base by
placing both 45˚ cuts together on the line of the
base threshold.
Place the bottom glass clips and the glass
panels (side panel and return panels) on the
threshold extursion and mark there locations on
the base. The clips must be 1” from the edge of
the glass or from the expander.
Remove the glass panel and place the bottom
clips on the position marks. Place a drop of
silicone in the hole of the clips and screw the
clips to the threshold extrusion and the base by
using the 1” head screws.
Insert the PVC gasket into the bottom clips
above the screw to protect the glass.
2a.
2b.
2c.
2d.
2e.
1” 1”
2a
2b
2c
2d
2e
