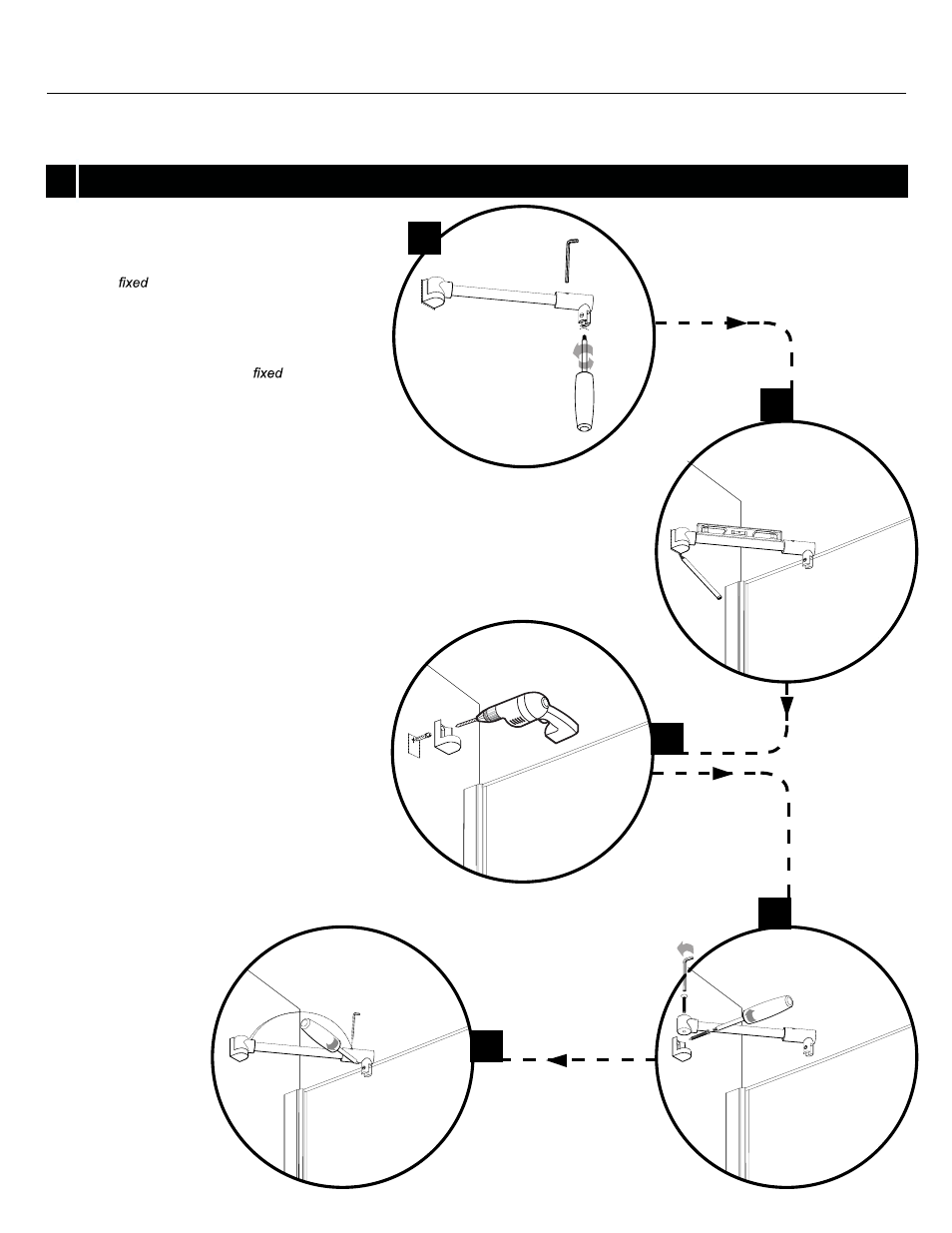

SUPPORT BARS INSTALLATION
INSTALLATION MANUAL
Loosen the glass clip (#1d). Align the slotte
to the panel. The slotted screw head
should be on the inside of the shower.
Rest the support bar on the panel
inside the tub. Level it and trace an arc on
the wall.
Isolate the wall bracket and drill a hole, us-
ing a 1/4˝ drill bit through the wall. Locate
the position of this hole by way of the wall
bracket. Insert a wall plug.
Secure the wall bracket to the wall by way of
the screw. Assemble the cylindrical joint to
the wall bracket.
Secure the glass fastener and wall bracket
screws to complete the installation process.
7a.
7b.
7c.
7d.
7a
7b
7c
7d
7e
