Alumax P-DRA1Y User Manual
Page 14
14
8

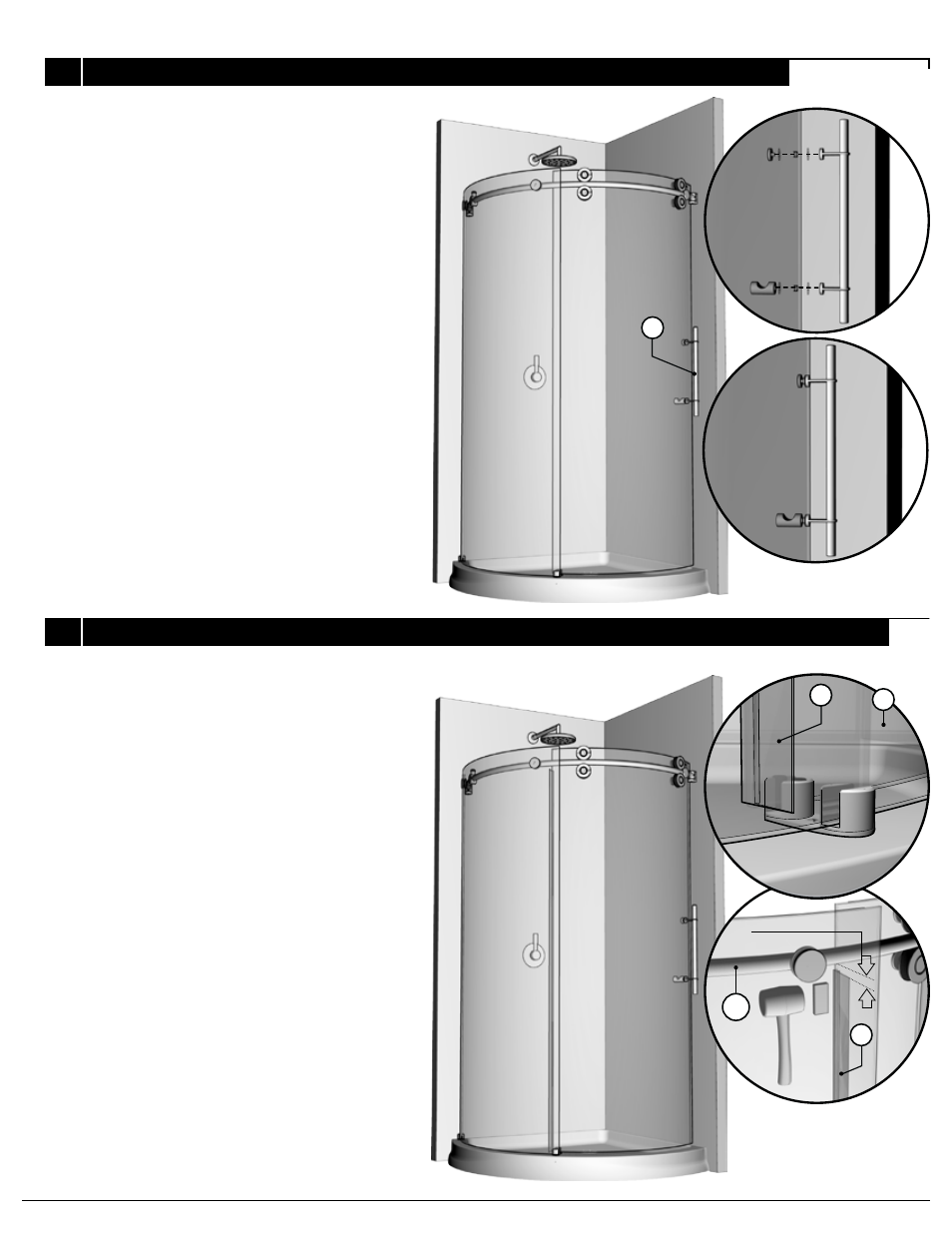

STRAIGHT HANDLE INSTALLATION
INSTALLING DOOR PANEL GASKET
9
8
Install straight handle (8) onto sliding door (6).
Ensure that clear washers on either side of glass
are installed.
Install the door mid-gasket (9) to the door
panel (6) by way of a protective block and
mallet. Start from the bottom edge of the door
panel and work the gasket up. Ensure that
a 1/2’’ gap remains between the running rail
(1) and the top edge of the mid-gasket (9) for
clearance.
1/2”
(12.57 mm)
9
6
1
9
