13
12

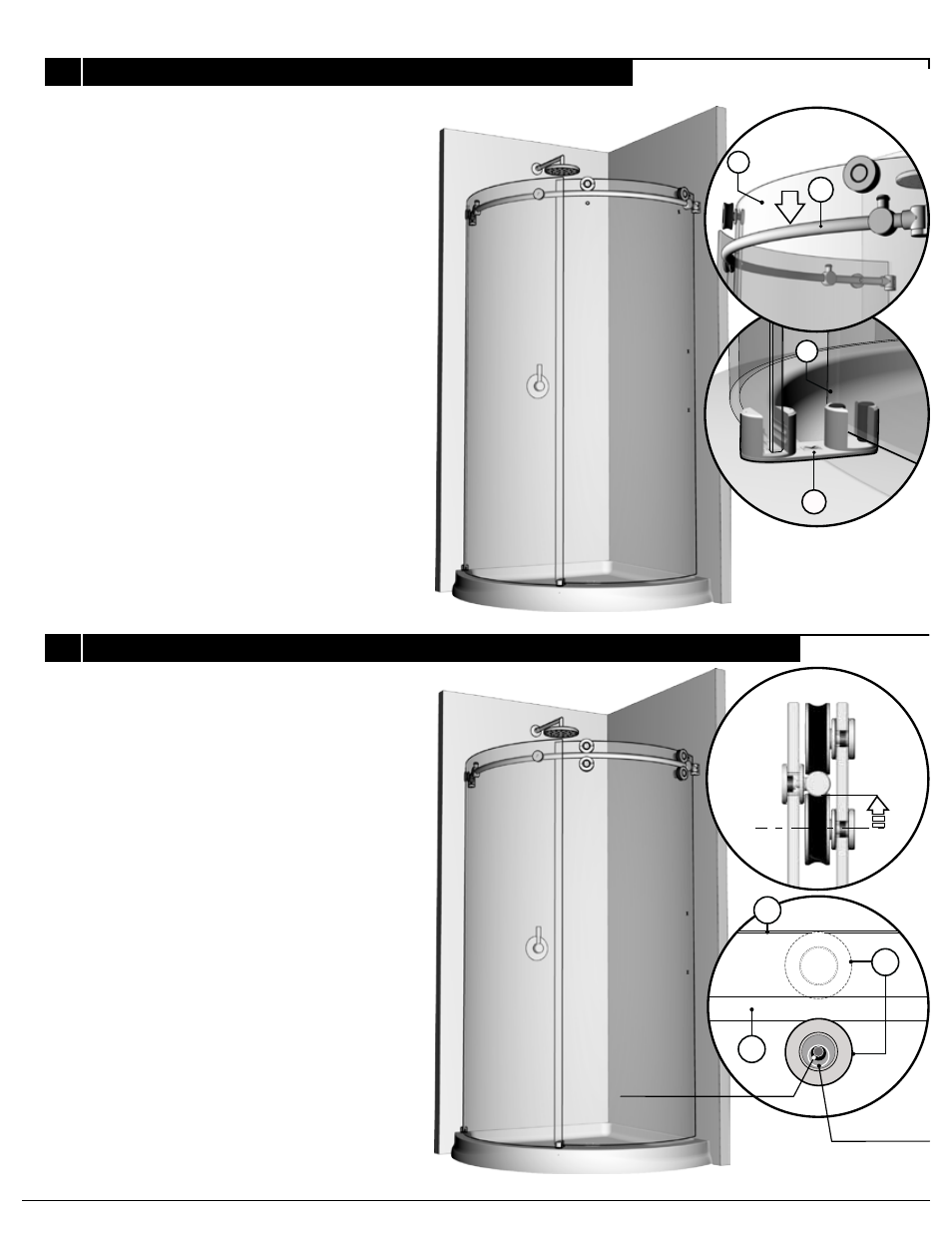

BOTTOM ROLLERS INSTALLATION
7
1
6
6
6
Install door panel (6), ensuring that the
rollers (5) are positioned over the running
rail (1). Through the use of the
nonconcentric washers, adjust rollers so
that the sliding door panel (6) is parallel to
the fixed panel (7).
Ensure that the door panel (6) is placed
within the bottom center guide (12).
Install the set of double rollers (5) to the
bottom holes of the door panel (6), making
sure that they are tangent to the running
rail (1) by way of the nonconcentric washers.
DOOR PANEL PLACEMENT
5
1
WASHER
GLASS HOLE
6
