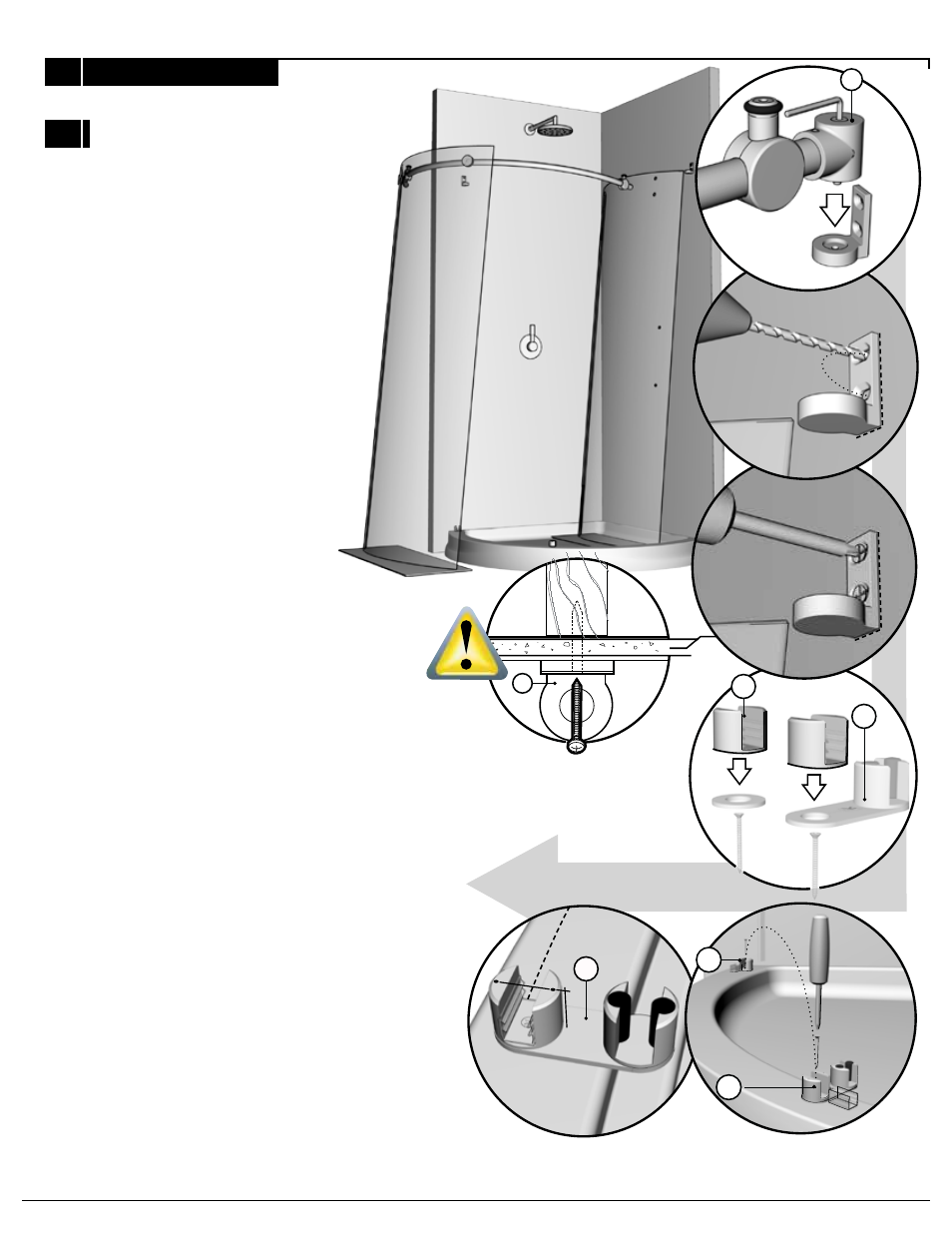

Drill holes in walls with a drill bit, intended
for ceramic tiles, through to the wall stud.
Remove the fixed panel assembly (7) and
carefully lean it to the side, ensure that it is
placed on a protective surface. Moreover,
ensure that the wall bracket supports (2) are
removed to proceed.
Fasten the wall brackets (2) with included
screws.
Drill holes in base through the the bottom
glass clip’s and bottom guide’s fixed panel
retainers (11) (12) ensuring that they are
positioned where intially marked. Use a
1/16” drill bit. Assemble retainers back into
an assembly to permanently install these
components onto the base. Note the
alignment of the dots on the glass clip
retainer of the bottom guide with the line
on the bridge as shown in the final bubble.
