(2) on the walls on both sides of shower as well

as the placement of the bottom glass clips

(11) (13).

CONTINUED

5

THRESHOLD

5C

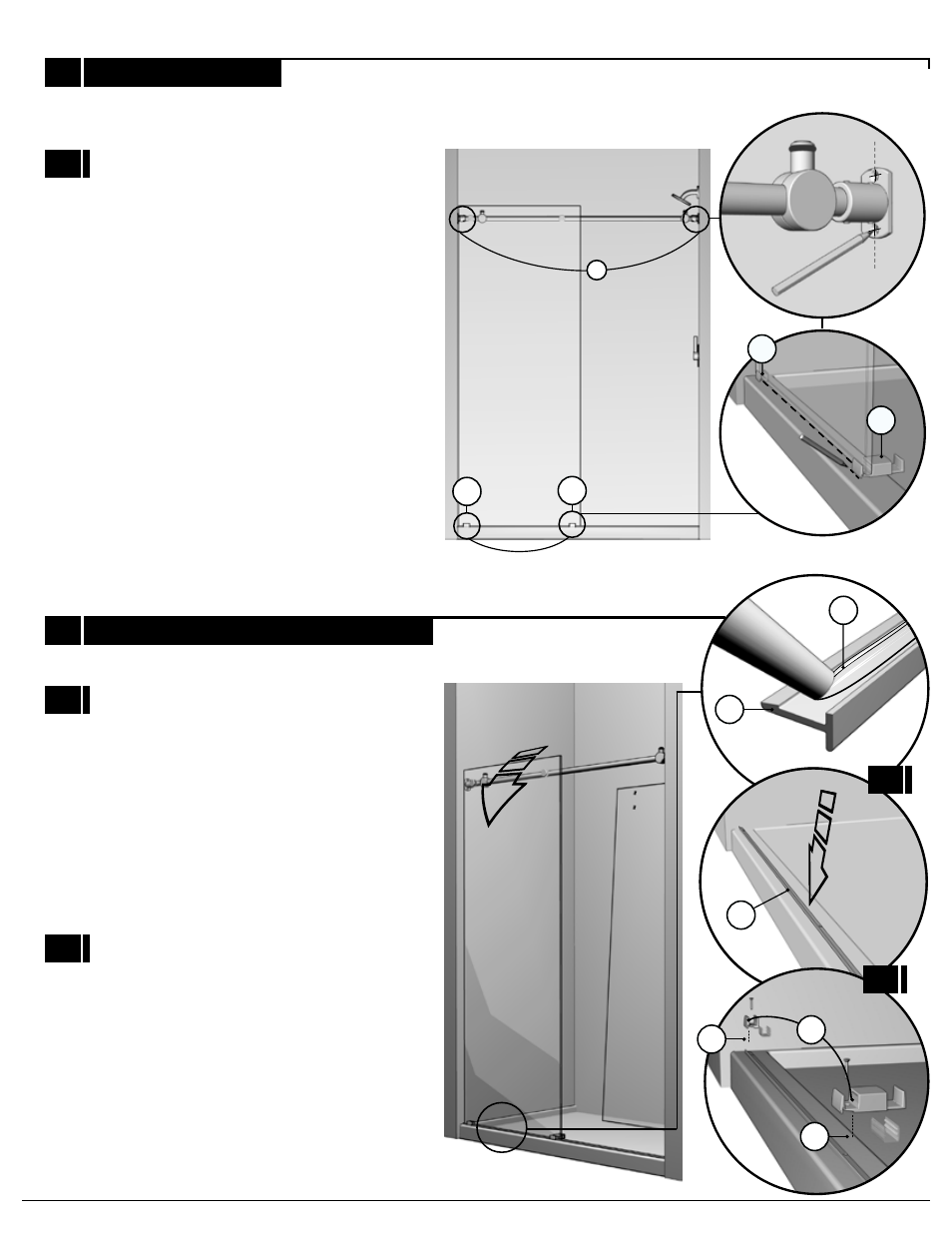

Remove the fixed panel assembly so as to allow

placement of the threshold (15) onto the base.

Ensure that a bead of silicone (S) is applied to

the underside of the threshold before installing.

Secure glass clips (11) (13) with self-drilling

screws (19).

6A

6B

15

S

15

6A

11

13

2

19

13

6B

11

13

11

19
