8

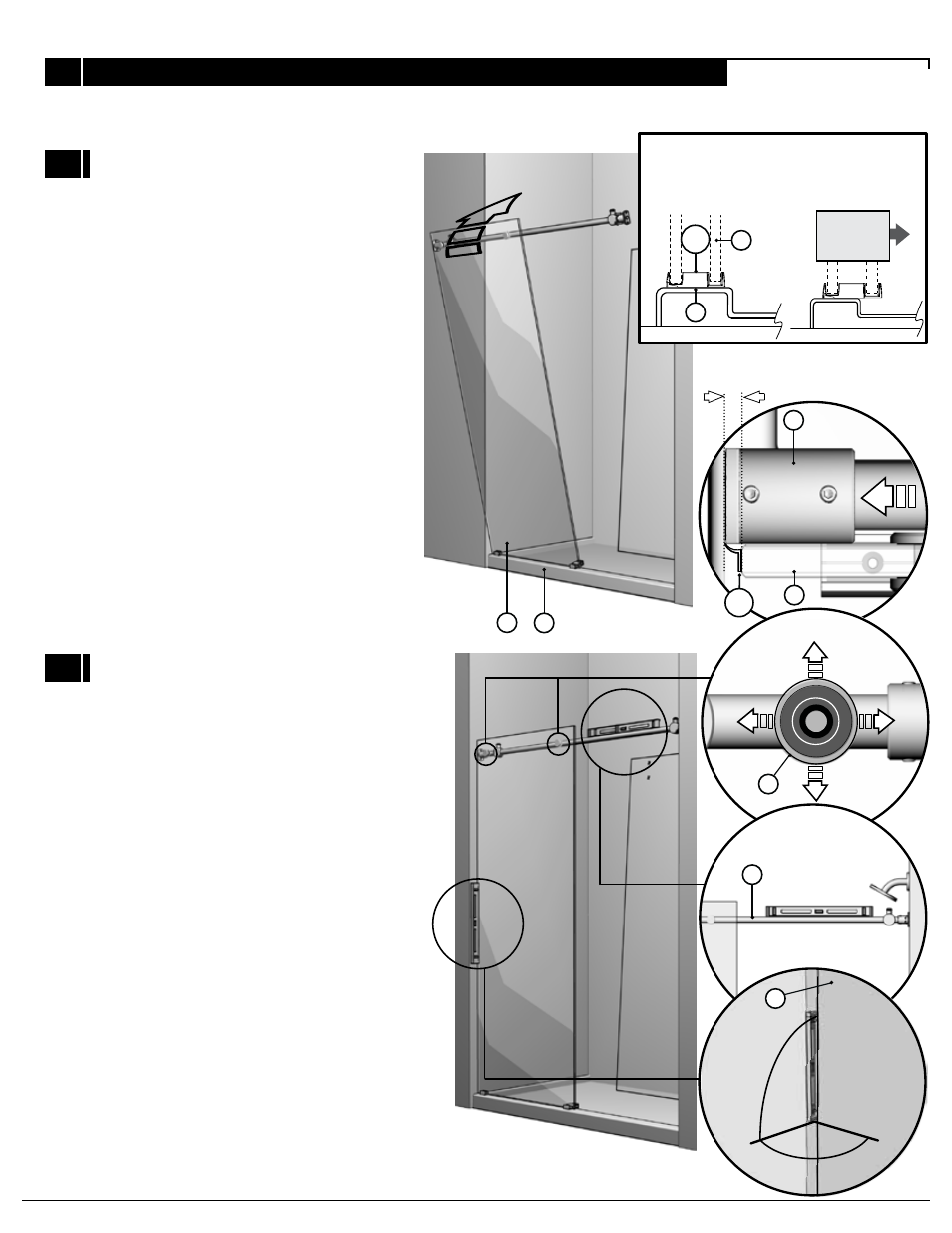

5 FIXED PANEL PLACEMEMENT
5B
Position the fixed panel assembly (7) on thresh-
old of base (B) as shown .
Adjust the fixed panel (7), by way of the running
rail (1), so as to force the gasket (10) against the
wall.
Ensure that the running rail (1) is level and that
the fixed panel (7) is square. If a horizontal cor-
rection is required, adjust and level the glass
fasteners (4).
5A
1
7
1/2” max (12.7mm)
10
The bottom guide (13) can hang off the threshold
(B) as long as it can be well-fastened.
INTERIOR
SHOWER SIDE
90°
90°
90°
B 7
B
13
4
1
7
6
