Vermont Casting 7PDVS User Manual
Page 8
DV Power Vent System
8
10003262
Install pipes and elbows according to the lay-out from
the unit to the Power Vent System Box and from it to
the vent termination. Follow the vent installation accord-
ing to the fireplace manual recommendations.
2-Install the Vent Pipes and the DV Power Vent System Box:
Remember that the blower shaft MUST ALWAYS BE in
a horizontal plane and the pressure switch diaphragm
MUST ALWAYS BE in a vertical plane with the hose
connections pointing down.
Inlet
Outlet
Inlet
Outlet

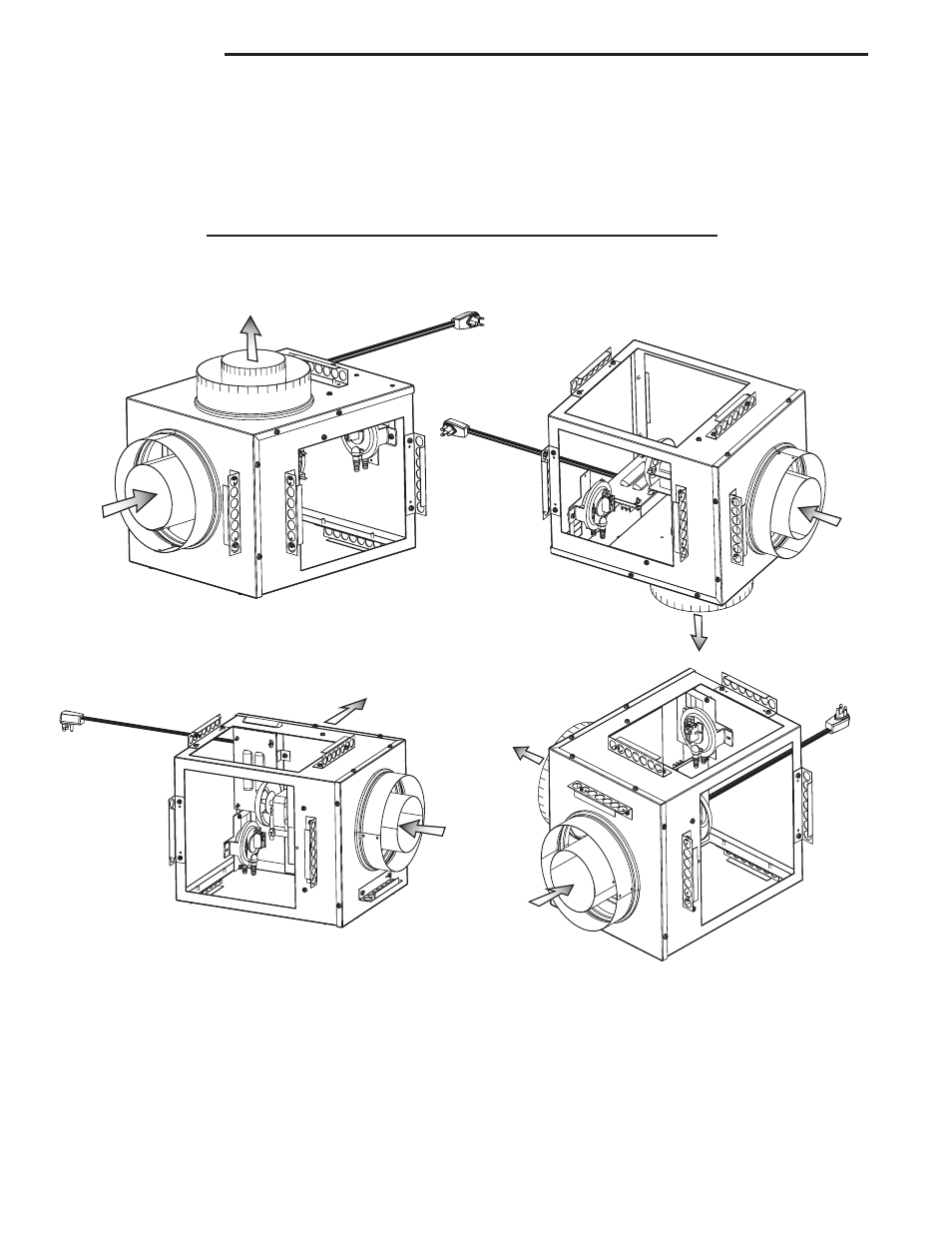

Four different ways to install the Power Vent System Box.
Inlet
Outlet
Inlet
Outlet
