Vermont Casting 7PDVS - Manual (Page 20)

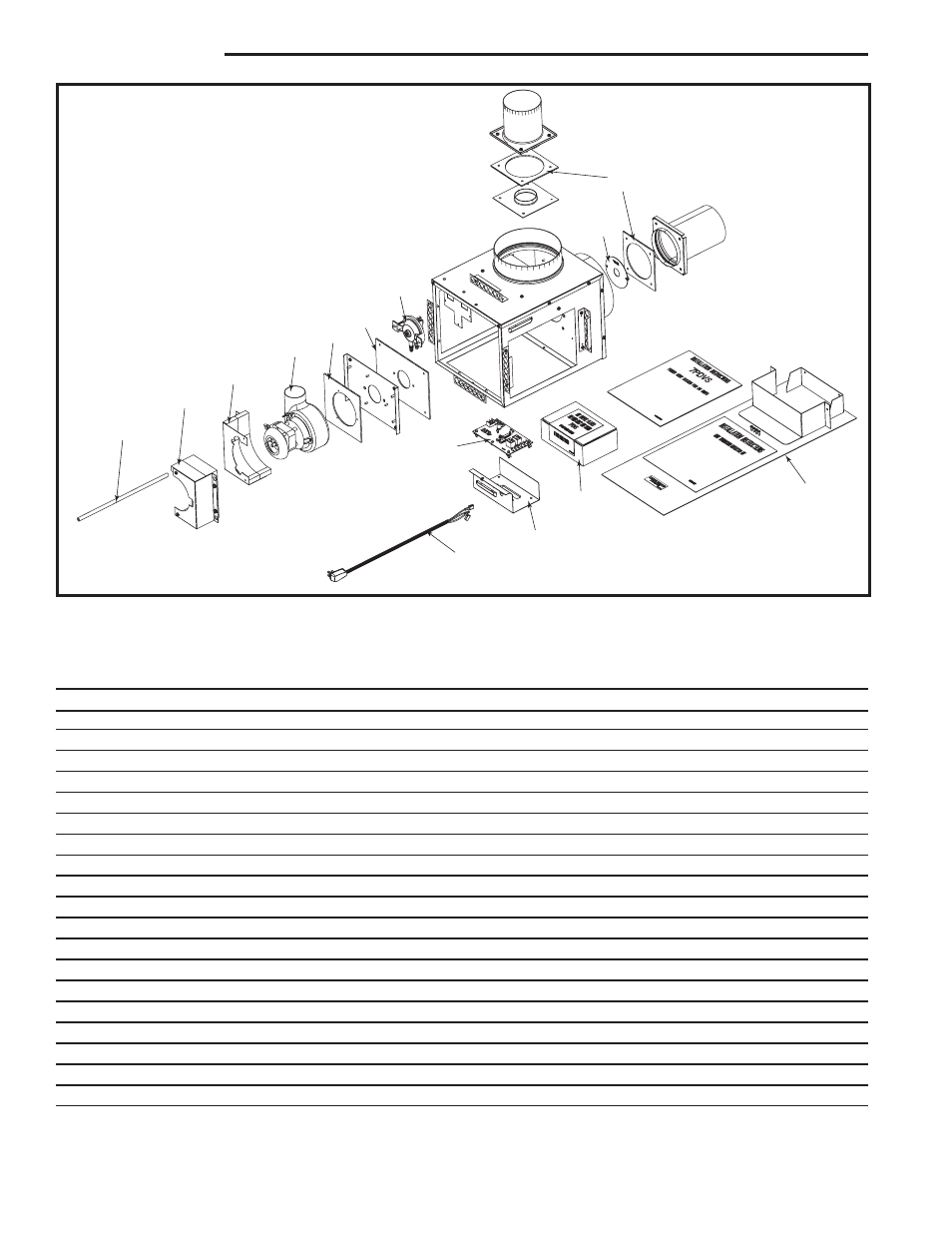

DV Power Vent System
20 10003262
1
2
3
5
4
6
7
14
11
15
16
9
10
8
Ref. Description 7PDVS
1. Hose High Temperature 10003405
2. Shield Heat Blower Right Assy 10003673
3. Shield Heat Blower Left Assy 10003672
4. Blower 10003214
5. Gasket Blower 10003066
6. Gasket Blower Plate 10002280
7. Pressure Switch 10003213
8. Circuit Board 10003230
9. Cover Circuit Board 10003610
10. Power Cord 10003095
11. Gasket Flue Pipe 10002237
12. Hose Clamp (Not Shown) 10003267
13. Wires (Circuit Board To Pressure Switch And Blower) (Not Shown) 10003317
14. Plate Restriction Orifice Size 29/32” 10003260
15. Kit Deflector Vent Termination 10003315
16. Kit Orifice Plates (Includes Items 17 To 25) 10003258
17. Plate Restriction Orifice Size 23/32” 10002274
18. Plate Restriction Orifice Size 25/32” 10004194
19. Plate Restriction Orifice Size 27/32” 10004195
7PDVS DV Power Vent System
