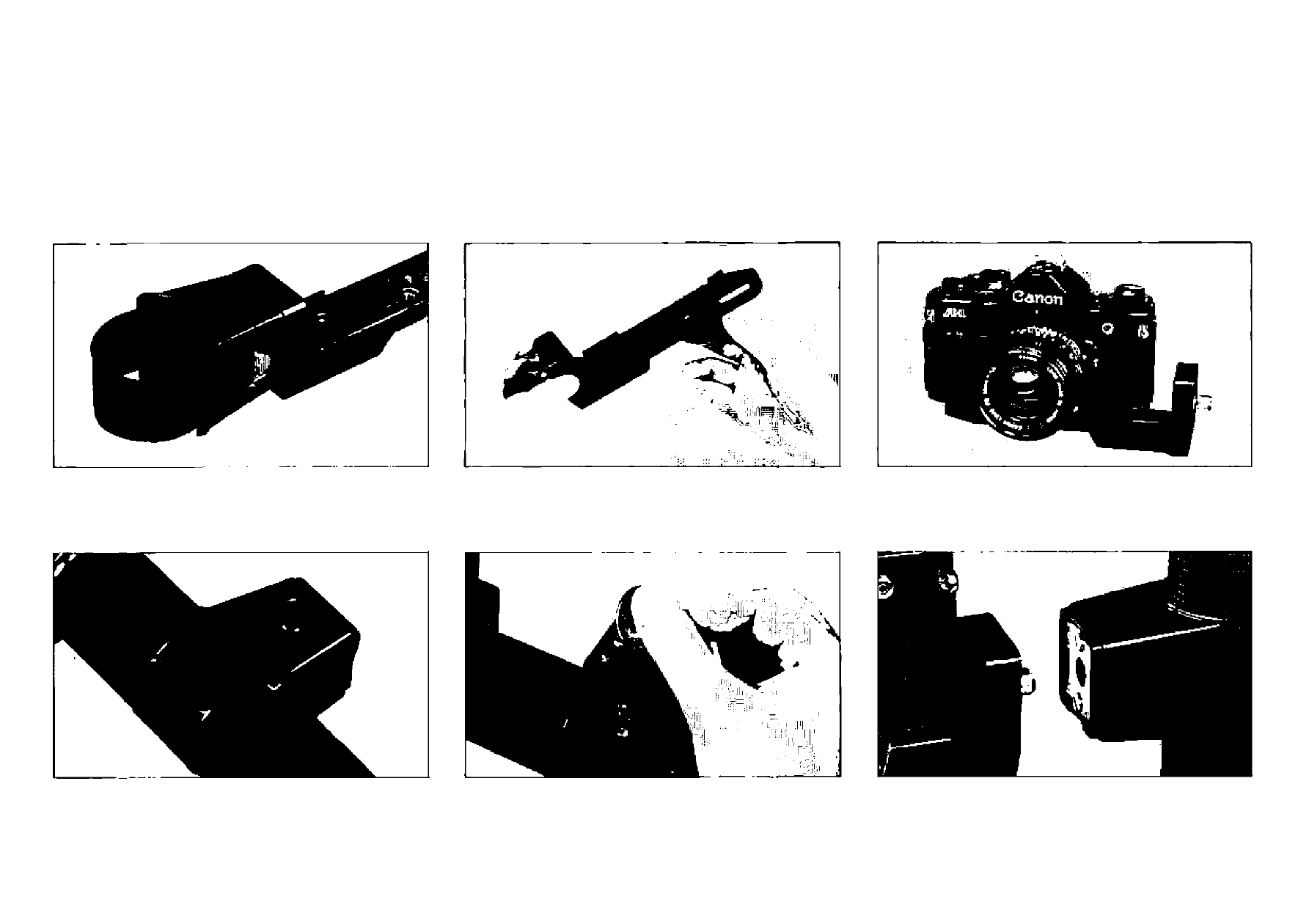

ASSEMBLY
Slide lock button to left. While
holding it in, pull flash section
apart from camera support.
Screw large tripod-type screw
into the threaded end of the
groove.
Adjust position of support be
fore completing.
Align the index on the clamp
with positioning groove on the
grip.
After sliding clamp on grip, re
tighten the two screws on flash
section.
Align flash section
camera support section
push them together.
