3-17
Cisco Unified IP Phone Services Application Development Notes
OL-20949-01
Chapter 3 CiscoIPPhone XML Objects
XML Object Definitions
Note The Cisco IP Phone models 9951, 9971, and 8961 does not support CiscoIPPhoneStatus object. See
Table 3-1 on page 3-2 for information on XML objects supported on various phone models.
See Table 3-4 for an overview of the text and timer area sizes by phone model.
CiscoIPPhoneStatusFile
The behavior of this object is identical to the CiscoIPPhoneStatus object, except it uses a color PNG
image instead of a grayscale CIP image for the graphics area.
The maximum image size is 262 x 50 pixels for the Cisco Unified IP Phone 7970G, but differs for other
phone models. See
“Dynamic Sizing of the Application Status Window” section on page 3-15 for details.
Note The Cisco IP Phone models 9951, 9971, and 8961 does not support CiscoIPPhoneStatusFile object. See
Table 3-1 on page 3-2 for information on XML objects supported on various phone models.

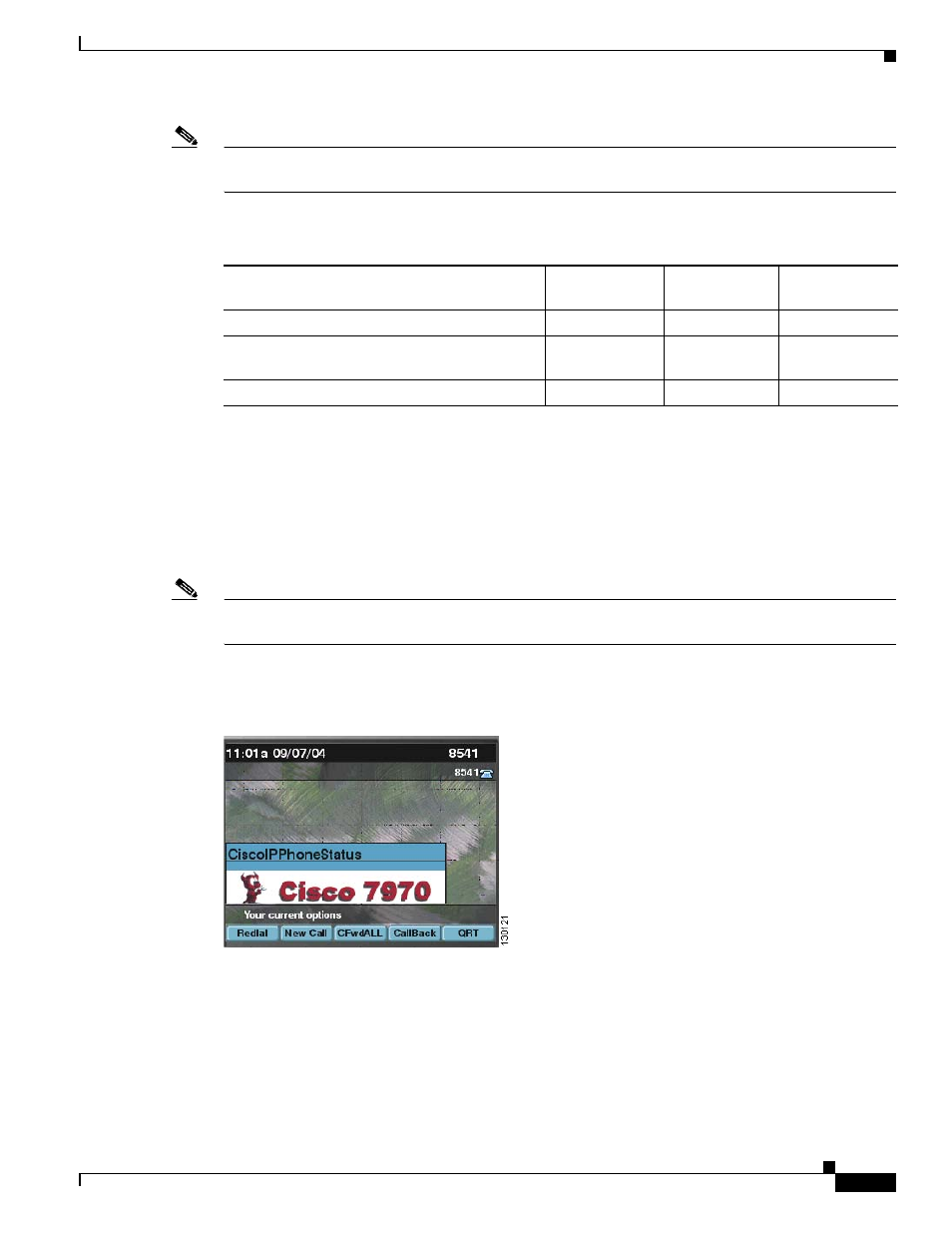

Figure 3-10 shows how an XML CiscoIPPhoneStatusFile object displays on a phone.
Figure 3-10 CiscoIPPhoneStatusFile Object Display Sample
Definition
This is the text area
Timer seed value in seconds
Horizontal alignment
Vertical alignment
location of the PNG image
Table 3-4 Application Status Window Allowable Text and Timer Sizes
Phone Models
Text Area Size
(WxH)
Timer Area Size
(WxH)
Text Area Size
No Timer (WxH)
7940G, 7960G 76x11 30x11 106x11
7941G/7941G-GE, 7942G, 7945G, 7961G/7961G-GE,
7962G, 7965G, 192x20 60x20 252x20
7970G / 7971G-GE, 7975G, IP Communicator 202x20 60x20 262x20
