3-13
Cisco Unified IP Phone Services Application Development Notes
OL-20949-01
Chapter 3 CiscoIPPhone XML Objects
XML Object Definitions
Icons in the CiscoIPPhoneMenu object have a maximum width of 16 pixels and a maximum height of 10
pixels.

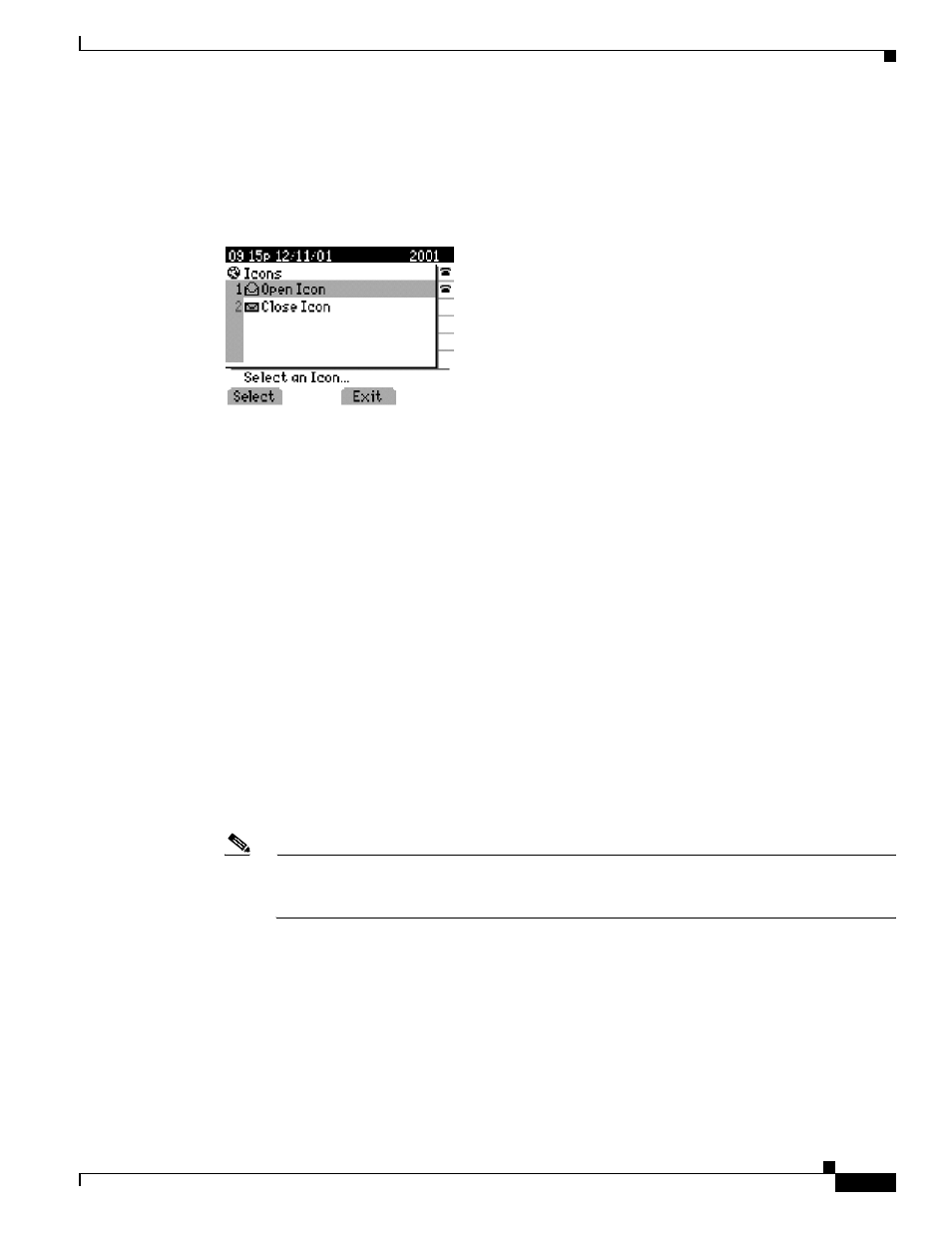

Figure 3-6 shows an IconMenu on a Cisco Unified IP Phone.
Figure 3-6 IconMenu on a Cisco Unified IP Phone Sample
The system presents the information as a bitmap graphic to the left of the menu item text. The user
selects menu items in the same way as a
CiscoIPPhoneMenu object.
Definition
Title text goes here
Prompt text goes here
Indicates what IconItem to display
The name of each menu item
The URL associated with the menu item
Name of softkey
URL or URI of softkey
Position information of the softkey
A unique index from 0 to 9
Size information for the icon
Size information for the icon
Number of bits per pixel
Packed Pixel Data
Note The 6900 series IP phones does not display the Title and Prompt menu fields at the same time.
If both Title and Prompt fields are defined at the same time, then these phones display only the
Prompt field.
The XML tags in IconMenu use the tag definitions for CiscoIPPhoneImage and CiscoIPPhoneMenu.
Although the semantics of the tags are identical, you can have only 32 MenuItem objects in a
CiscoIPPhoneIconMenu object. See “CiscoIPPhoneMenu” and “CiscoIPPhoneImage” for detailed
descriptions.
