BASIC OPERATION

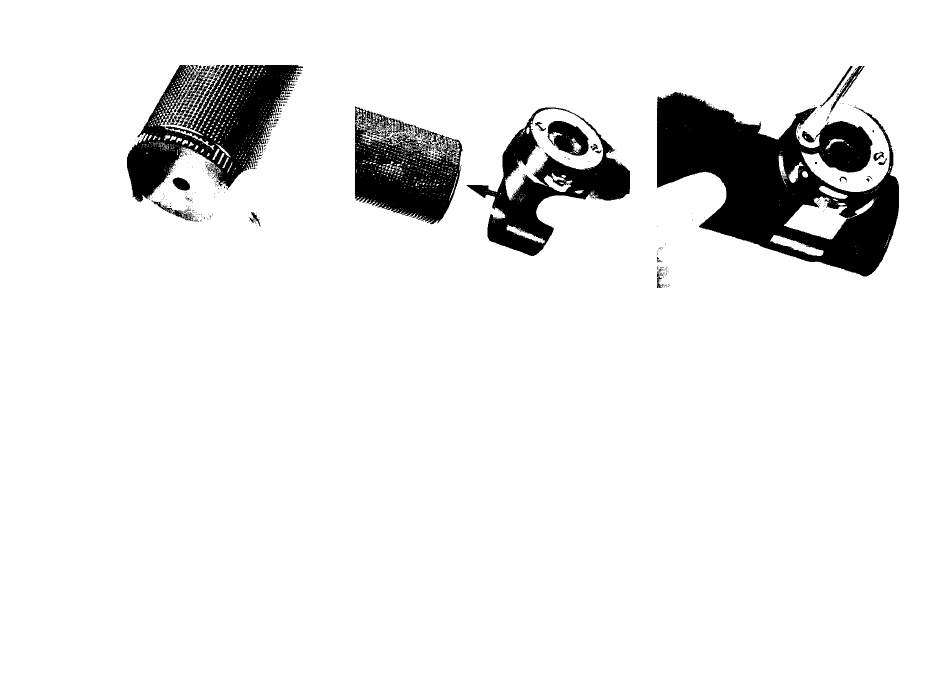

Open the battery

* chamber.

Unscrew the lid @ at the base of the

handle and remove the battery clip.

2, Attach the bracket

mounting adapter ® to

the speedlight s handle

First, use the screwdriver provided

to loosen the two screws on the

bracket mounting adapter. Then,

slip the adapter onto the speedlight's

handle and slide it to,the desired

position. Orient the adapter so that

its flat side is in the same plane as

the speedlight's exposure calculator

@ is facing toward the rear of the

speedlight.

0^ Secure the bracket

mounting adapter.

Tighten the screws to secure the

adapter into place.
