BASIC OPERATION —continued-

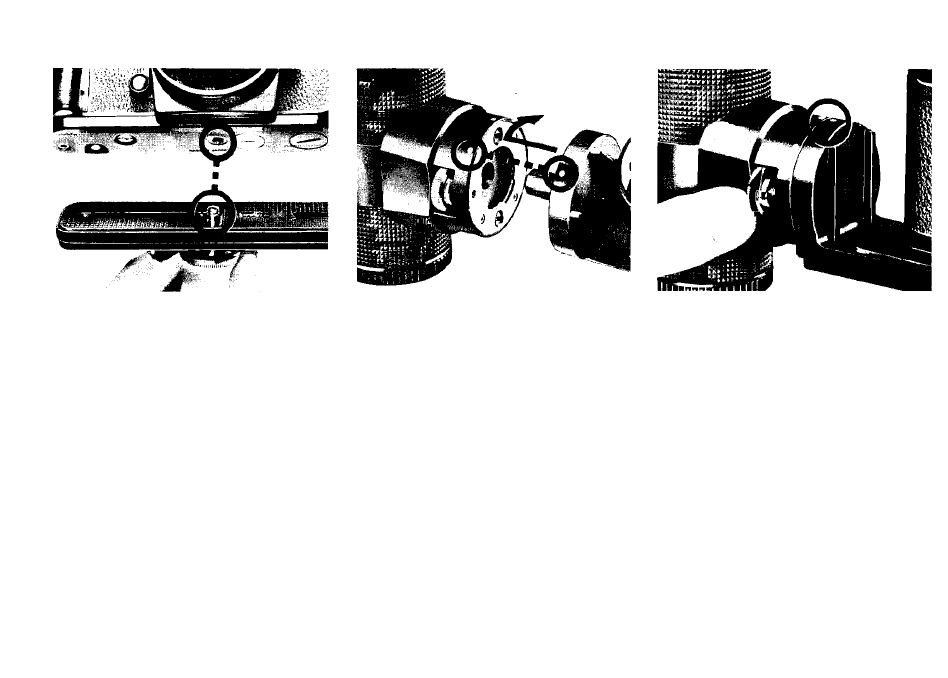

Attach the bracket @ to
the camera.
Position the camera in the bracket
with the bracket mounting pin ® on
the same side of the camera as its
rewind knob. Then, screw the brack
et's attachment screw ® into the
camera's tripod socket to secure the
two units together tightly.
3^ Attach the bracket to
the speedlight.
Insert the bracket mounting pin into
the hole in the bracket mounting
adapter with the two dots @ aligned;
rotate the camera forward.
0^ Tighten the locking
wheel completely.
Note: For attachment to the MD-4 Motor
Drive, you must reposition the bracket's
attachment screw to the other s!ot@. For
details, refer to page 13.
