Craftsman 247.799620 - Manual (Page 21)

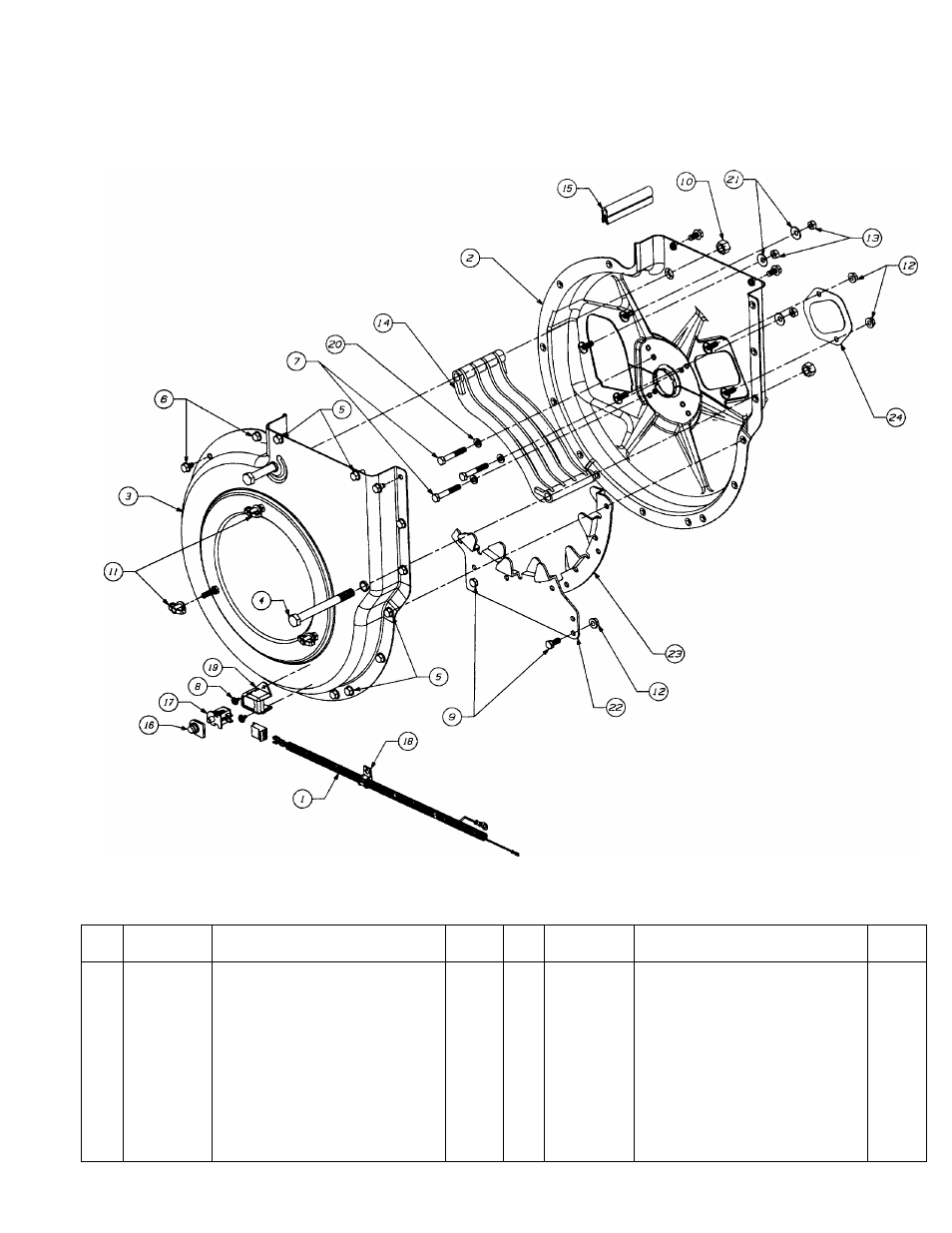

SEARS CRAFTSMAN CHIPPER-VACUUM MODEL 247.799620
Repair Parts
REF.
NO.
PART
NO.
DESCRIPTION QTY.
REF.
NO.
PART
NO.
DESCRIPTION QTY.
1 629-0241 HARNESS—CHIPPER-VAC 1 13 712-3010 NUT-HEX (GR 5) 3
2 681-0059 HOUSING ASSY—INNER 1 14 719-0326 SCREEN 1
3 681-0060 HOUSING ASSY—OUTER 1 15 723-0438 SEAL-RUBBER 2
4 710-0382 SCREW-HEX 2 16 725-1700 COVER-SWITCH 1
5 710-0604 SCREW-HEX SELF TAP 10 17 725-3166 SNAP MOUNT SWITCH 1
6 710-0607 SCREW-HEX SELF TAP 8 18 726-0272 CLAMP 1
7 710-0772 SCREW-HEX 3 19 731-1613 COVER-SWITCH 1
8 710-1268 SCREW-HEX SELF TAP 2 20 736-0119 WASHER-LOCK 3
9 710-3008 SCREW-HEX 2 21 736-0242 WASHER-BELL 3
10 712-0384 NUT-HEX LOCK 2 22 781-0598 BLADE-FLAIL HOUSING 1
11 712-0421 KNOB 3 23 781-0599 BLADE-FLAIL HOUSING 1
12 712-3004A NUT-HEX LOCK 4 24 781-0627 COVER-CHIPPER 1
