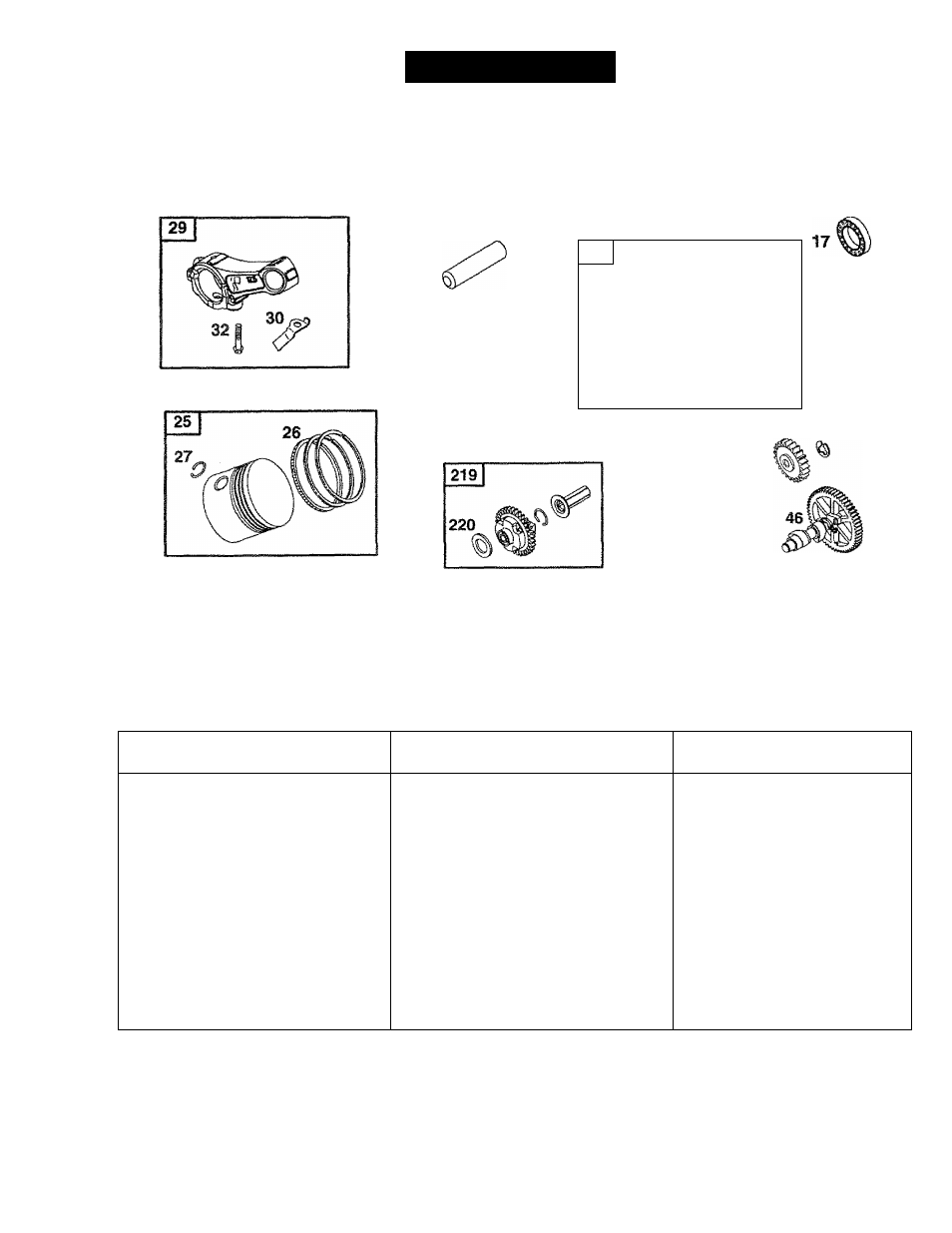

ENGINE PARTS
CRAFTSMAN 2500 PSI HIGH PRESSURE WASHER 919.762500
BRIGGS ENGINE MODEL #121432-0112-E1
28
27
24
16
j
S
a
HI
m
^146
^741
742
743
REF.
NO.
PART
NO.
DESCRIPTION
REF
NO.
PART
NO.
DESCRIPTION
REF.
NO.
PART
NO.
DESCRIPTION
16
692561
Crankshaft
29
690124
Rod-Connecting
146
690979
Key-Timing
17
692510
Bearing-Bail
30
692562
Dipper-Connecting Rod
219
692418
Gear-Governor
24
690974
Key-Flywheel
32
691664
Screw-Connecting Rod
220
691724
Washer-Thrust
25
499627
Piston Assembly
46
692563
Gear-Cam
741
692565
Gear-Timing
26
499631
Ring Set
742
692564
Ring-Retaining
27
691866
Lock-Piston Pin
743
692666
Gear-Idler
28
499423
Pin-Piston
