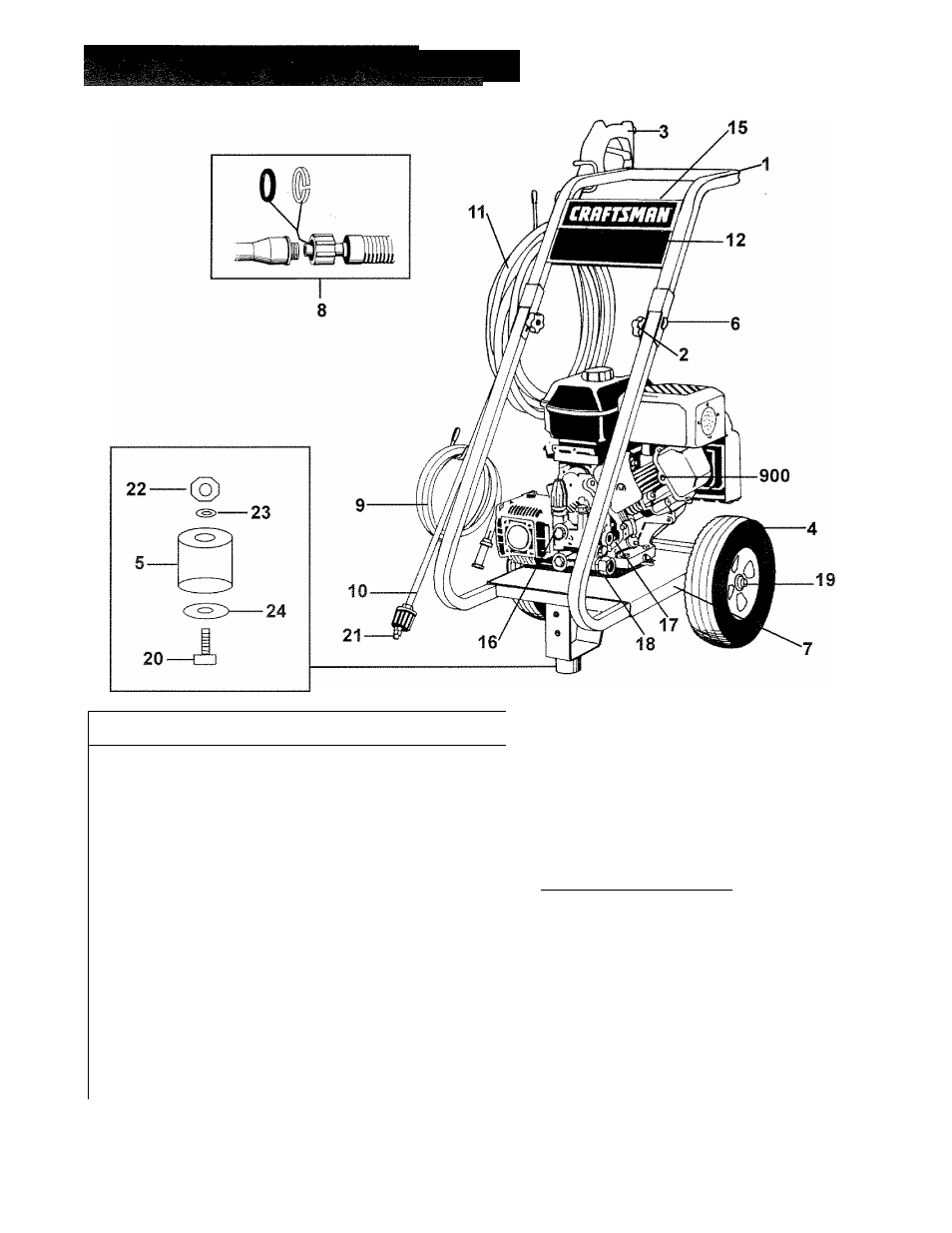

PARTS
CRAFTSMAN 2500 PSi HIGH PRESSURE WASHER 919.762500
KEY#
PART NUMBER
DESCRIPTION
1
16498
Handle
2
16471
Knob
3
16396
Gun
4
16504
Tire Simi-Pnuematic
5
16371
Foot Rubber
6
16470
JBolt
7
16503
Frame
8
16830
0~ring Kit
9
H100
Chemical Hose
10
16823
Lance Hi/Low
11
15111
High Pressure Hose
12
16501
Decal Front Craftsman
900
—
Engine (Refer to Engine Breakdown
Briggs #121432-0112-El)
15
16727
Decal Operation
16
PK16642
Pump
17
F035
High Pressure QC
18
16829
Adapter- Garden Hose
i 9
F464
Nut Pal
1/2”
2 0
F064
Srew Hex HDC
KEY# PART NUMBER DESCRIPTION
2 1
22
23
24
N03515
F119
F078
F112
Nozzle
Hex Nut
Lock Washer
Flat Washer
PARTS NOT ILLUSTRATED
MGP-762500
Owners Manual
F078
Lockwasher, Engine to Frame
F119
Nut Hex 3/8” Engine to Frame
F066
Screw 3/8” Engine to Frame
FI 07
Lockwasher-Pump to Engine
15167
Srew, Hex- Pump to Engine
F078
Lockwasher- Pump to Engine
NCT001
Nozzle Cleaning Kit
F039
QC Socket for HP Hose
17091
Nozzle 3 pack 0", 25', 40“
Spray Pattern
17
