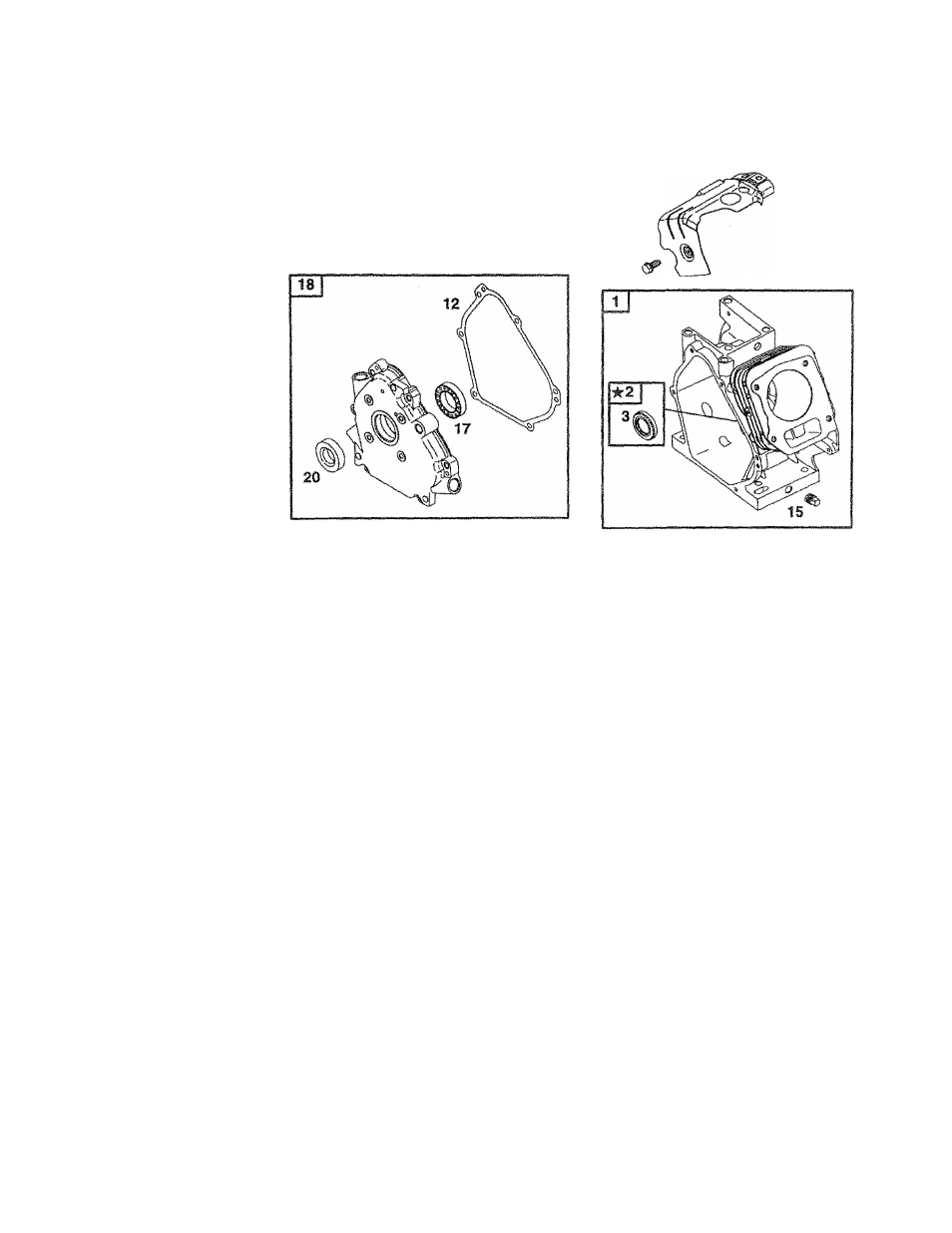

CRAFTSMAM 2500 PSI HIGH PRESSORE WASHER S19.762500
BRIGGS ENGINE MODEL #121432-0112~E1
S2B ©
2l3
22^
306
307
REF.
PART
NO. NO.
DESCRIPTION
REF.
PART
NO. NO.
DESCRIPTION
REF.
PART
NO. NO.
DESCRIPTION
1
2
3
1 2
15
690045(P)
399269
692266
692549
591696
Cylinder Assembly
Bushing
SeabOii
Gasket-Crankcase
Piug-Oi!
17
692510
Bearing-Ball
18
690047 Cover-Crankcase
20
692550
Sea!-Oii
21
692261
Cap-Oil Fill
22
692551
Screw-Hex.
306
307
529
1019
1058
692552
690345
692553
690035
273700
Shield-Cylinder
Screw-Hex,
Gromniei
Label Kit
Owner's fvlanuai
20
