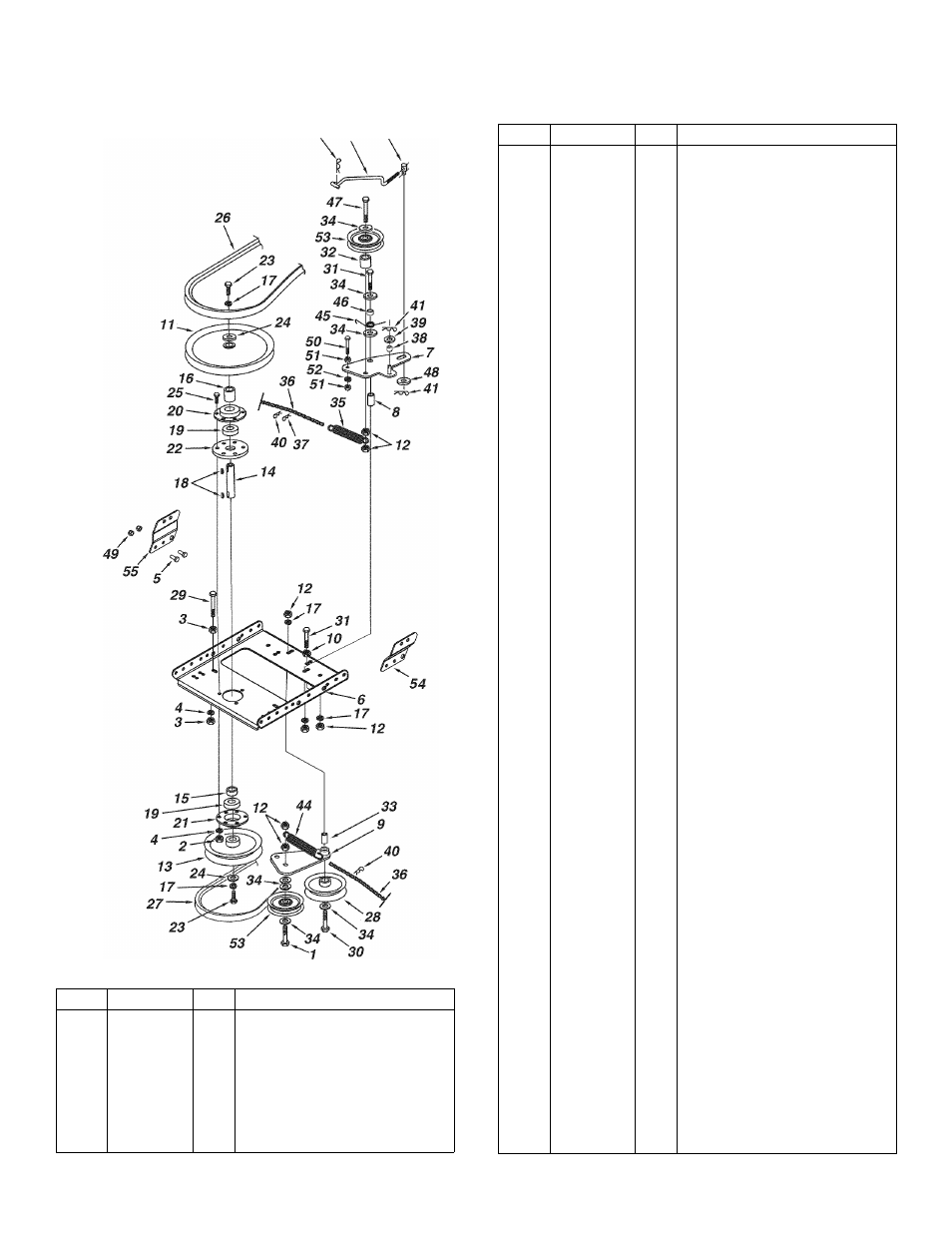

REPAIR PARTS FOR MODEL 486.248371 42" SNOW THROWER
(For Tractors With Model Numbers Beginning With 247)
41 43 42
REF PART NO QTY DESCRIPTION
1 HA180132 1 Hex Bolt, 3/8-16x2-1/4"
2 43064 3 Hex Lock Nut, 5/16-18
3 43083 2 Hex Nut, 5/16-18
4 43086 4 Lock Washer, 5/16"
5 43182 4 Hex Bolt, 5/16-18x3/4"
6 26943 1 Frame, Clutch and Pulley
7 63904 1 Idler Arm Assembly
REF PART NO QTY DESCRIPTION
8 24286 1 Spacer, Pivot
9 63762 1 Idler Bracket Assembly
10 43015 1 Hex Nut, 3/8-16
11 46981 1 Pulley, V Type 9"
12 43082 7 Nut, Hex Lock, 3/8-16
13 46982 1 Pulley, V Type 5-1/2"
14 738-0680 1 Shaft
15 750-0456 1 Spacer
16 750-0660 1 Spacer
17 43003 5 Lock Washer, 3/8"
18 714-0161 2 Key
19 741-0919 2 Bearing, Ball
20 08253B 1 Housing, Bearing
21 15296A 1 Housing, Open Bearing
22 14088B 1 Spacer, Spindle
23 44377 2 Hex Bolt, 3/8-24 x 1"
24 736-0247 2 Washer
25 43063 3 Hex Bolt, 5/16-18x1"
26 41353 1 Belt, V Type Drive (52")
48138 1 Belt, V Type Drive (56")
27 47846 1 Belt, V Type Auger
28 47044 1 Pulley, V Type 4"
29 47025 1 Hex Bolt, 5/16-18x3-1/2"
30 43432 1 Hex Bolt, 3/8-16x2-1/2"
31 43054 3 Hex Bolt, 3/8-16x2"
32 24571 1 Spacer
33 24472 1 Spacer, Pivot
34 43070 7 Washer, 3/8"
35 46959 1 Spring
36 46963 2 Chain
37 43055 1 Pin, Hair Cotter, 3/32"
38 23727 1 Spacer
39 43088 1 Washer, 1/4"
40 43343 2 Pin, Hair Cotter #4 (1/8")
41 47134 2 Pin, Hair Cotter 5/64"
42 711-0198 1 Trunnion
43 46948 1 Rod, Engagement
44 47620 1 Spring
45 47607 1 Spring, Torsion
46 23625 1 Spacer
47 43509 1 Hex Bolt, 3/8-16x2-3/4" Lg.
48 47605 1 Washer, Flat 3/8"
49 47810 4 Hex Nut, 5/16-18 Nylock
50 49870 1 Hex Bolt, 1/4-20x2-1/2"
51 43178 2 Hex Nut, 1/4-20
52 43177 1 Lock Washer, 1/4"
53 48883 2 Pulley, Flat 3-5/8"
54 27010 1 Front Bracket, R.H.
55 27011 1 Front Bracket, L.H.
26
