TO REPLACE MOWER DRiVE BELT

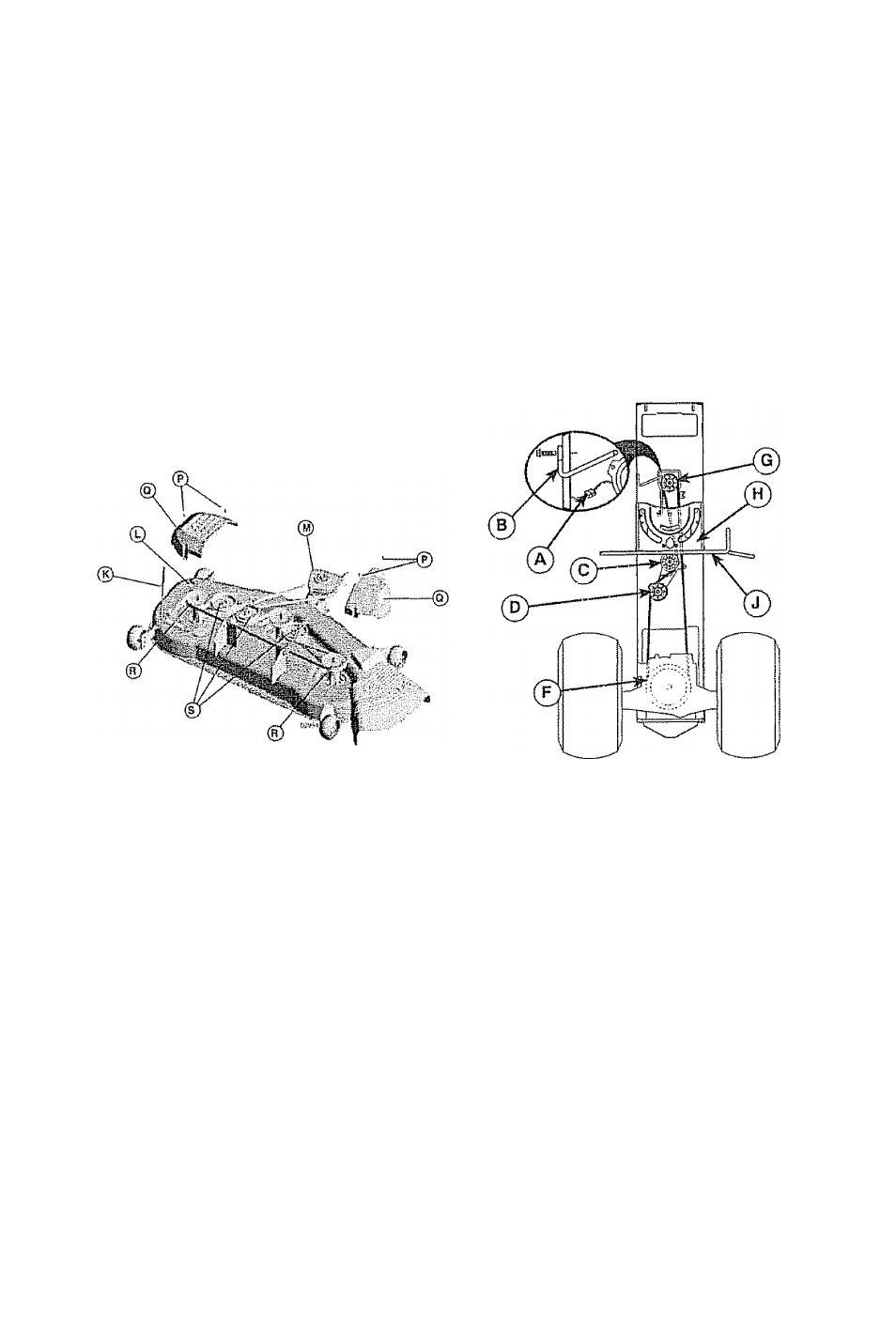

MOWER DRIVE BELT REMOVAL
1
2
.
Park tractor on a level surface. Engage
3
parking brake.
Lower attachment lift lever to its lowest
4
position.
3. Disengage belt tension rod {K) from lock
5
A bracket (L),
CAUTION: Belt tension rod is spring load­
ed. Have a firm grip on rod and release slowly.
4. Remove screws |P) from R.H. and L.H.
0
mandrel covers and remove covers (Q).
5. Remove any dirt or grass clippings which 7
may have accumulated around mandrels
and entire upper deck surface.
6
. Remove belt from electric clutch pulley
(M), both mandrel pulleys (R) and all idler
pulleys (S).
NOTE: Observe entire motion drive belt and
position of all belt guides and keepers.
2. Disconnect clutch wire harness (A).
Remove anti-rotation link (B) on right side
of tractor.
Remove belt from stationary idler (C) and
clutching idler (D).
Pull belt slack toward rear of tractor.
Carefully remove belt upwards from
transmission input pulley and over cool­
ing fan blades (F).
Remove bell downward from engine
pulley and around electric clutch (G),
Slide belt toward rear of tractor, off the
steering plate (H) and remove from tractor.
MOWER DRIVE BELT INSTALLATION
1
. Install belt around both mandrel pulleys
(R) and around idler pulleys (S) as shown.
2
. Install belt onto electric clutch pulley (M).
IMPORTANT: Check belt for proper routing
in all mower pulley grooves.
3. Reassemble R.H. and L.H. mandrel cov­
ers (Q). Securely tighten all screws.
4. Engage belt tension rod (K) on locking
bracket (L).
A
CAUTION: Beittension rod is spring load­
ed. Have atight grip on rod and engage slowly.
5. Raise attachment lift lever to highest
position.
TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. Engage
parking brake. For assistance, there is a
belt installation guide decal on bottom side
of left footrest.
BELT REMOVAL -
1. Remove mower (See “TO REMOVE
MOWER" in this section of manual).
BELT INSTALLATION -
1
. Install new belt from tractor rear to front,
over the steering plate (H) and above
clutch brake pedal shaft (J),
2. Pullbelttowardfrontoftractorandrolibelt
around electric clutch and onto engine
pulley (G),
3. Pull belt toward rear of tractor. Carefully
work belt down around transmission
cooling fan and onto the input puliey (F).
Be sure belt is inside the belt keeper.
4
. Install belt through stationary idler (C)
and clutching idler (D).
5. Reinstall anti-rotation link (B) on right
side of tractor, Tighten securely.
6
. Reconnect clutch harness (A).
7. Make sure belt is in all pulley grooves
and inside all belt guides and keepers.
8 . Install mower (See “TO INSTALL MOW­
ER" in this section of manual).
28
