Installing Optional Fast Ethernet Interface Modules
6H128-08 and 6H129-08 User’s Guide C-7
4. Carefully lower the Fast Ethernet Interface Module onto the standoffs
while inserting the module connector into the associated motherboard
connector. See Caution below.

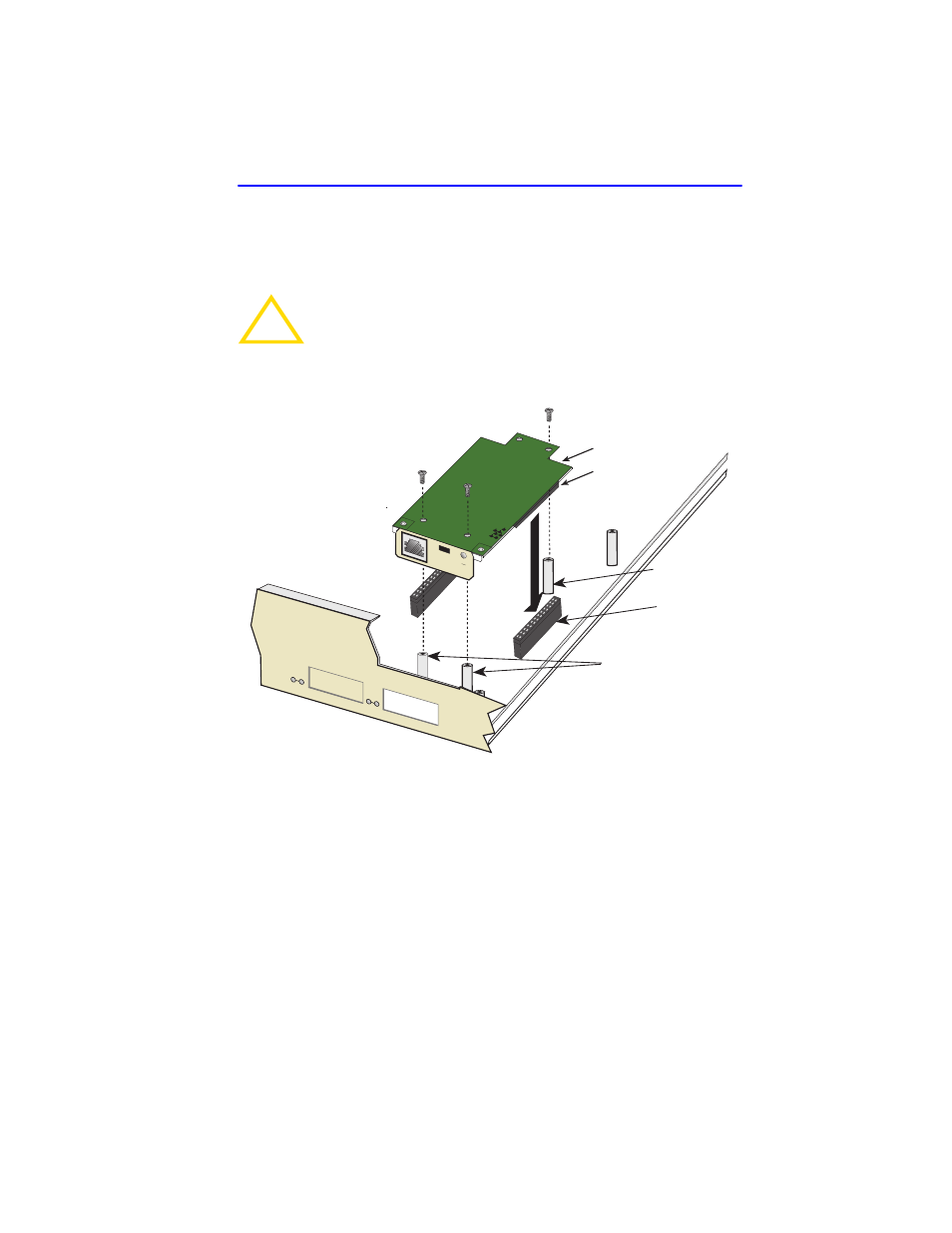

Figure C-4 Installing the Fast Ethernet Interface Module
5. Press down firmly on the Fast Ethernet Interface Module until the pins
slide all the way into the motherboard connector. Ensure that the Fast
Ethernet Interface Module seats flush on the standoffs.
6. Secure the Fast Ethernet Interface Module with the screws saved in
Step 1 and Step 2 .
7. Installation is complete.
!
CAUTION
When inserting the Fast Ethernet Interface Module into the
motherboard connector ensure that the pins do not bend, as
this can damage both the Fast Ethernet Interface Module and
the motherboard connector.
