OPERATION
HOW TO STOP THE EDGER
1. Move the
clutch lever
back to the DIS
ENGAGED position. Then, move the
throttle control
to the STOP position.

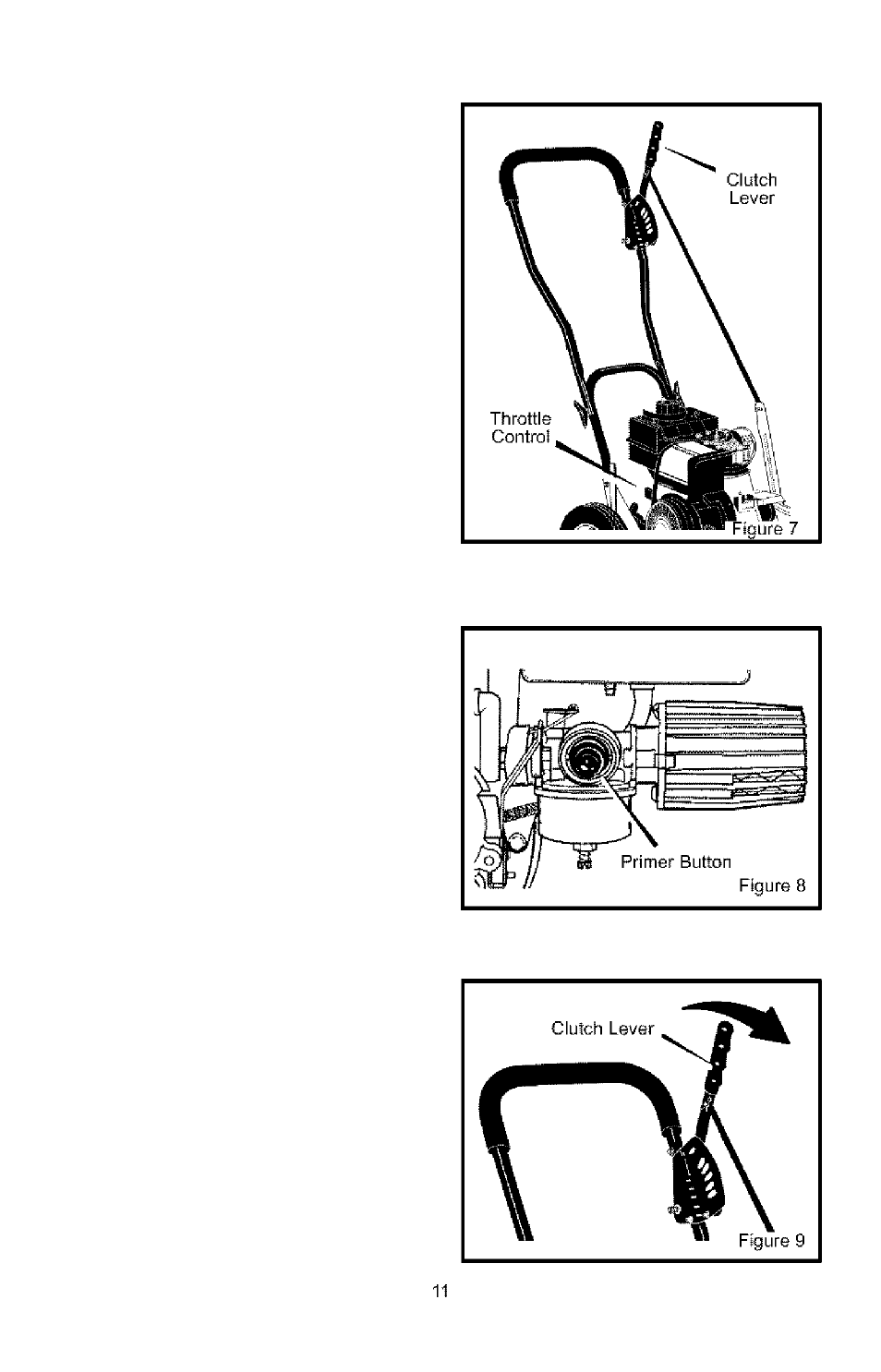

See Figure 7.
A
WARNING; Never leave the
EDGER unattended while the
engine is running. Always dis
engage the cutting blade and stop the
engine.
HOW TO USE
THE THROTTLE CONTROL
1. During normal use, run the engine at full
speed.
2.
Move the
throttie controi
up to increase
engine speed, or down to decrease en
gine speed (see Figure 7).
HOW TO USE
THE PRIMER BUTTON
When starting a cold engine, push the
prim
er button
five times (see Figure 8). Wait
approximately two seconds between each
push.
IMPORTANT: When starting a warm engine,
do not use the primer button.
HOW TO USE
THE CLUTCH LEVER
1. start the engine.
2. To engage the cutting blade, move the
clutch lever
forward (see Figure 9).
3.
Select the edging depth you need. There
are five selections down to approximate
ly 2-3/4 inches deep.
NOTE: For deep edging, first cut at shallow
depths. Then, cut at greater depths until
the desired depth is obtained.
F-001102M
