Craftsman 139.53625SR - Manual (Page 14)

JostaHation

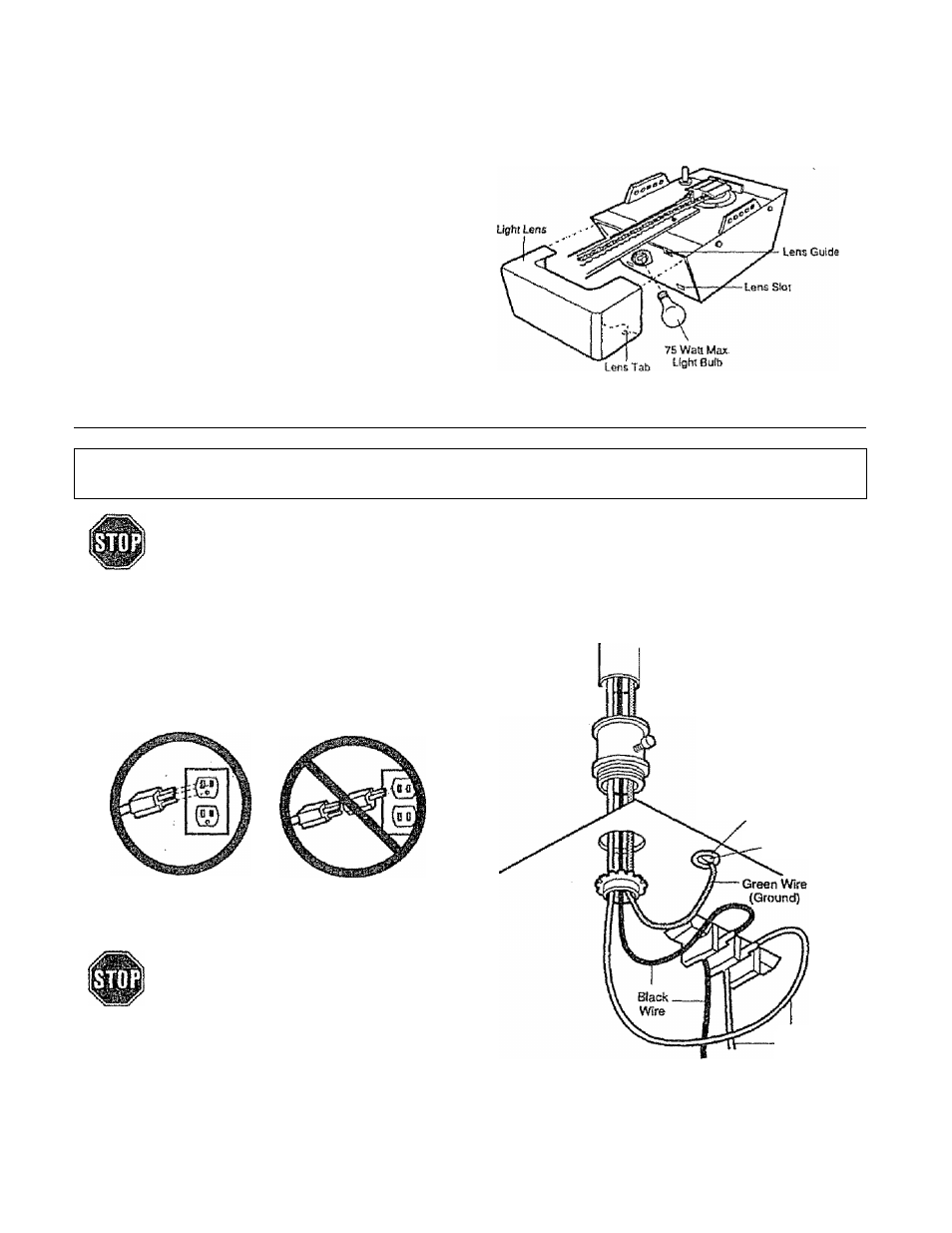

STEP 7
InstaH Light and Lens
INSTALLING LIGHT;
Install a 75 watt maximun light bulb in socket as shown.
The light will tom on and remain lit for 4-1/2 minutes when
power is connected. After 4-1/2 minutes it will turn off.
If light bulb burns out prematurely due to vibration,
replace with a bulb specifically packaged for "Garage
Door Openers".
INSTALLING LENS:
Slide the lens Into the guides as shown Snap the bottom
t^s info fens slots.
STEP 8 Connect Electric Power
TO AVOID SERIOUS PERSONAL INJURY FROM ENTANGLEMENT, REMOVE ALL ROPES CONNECTED
TO THE GARAGE DOOR BEFORE OPERATING OPENER.
TO AVOID DAMAGE TO GARAGE DOOR AND OPENER, MAKE DOOR LOCKS INOPERATIVE BEFORE
CONNECTING ELECTRIC POWER. USE A WOOD SCREW OR NAIL TO HOLD THE LOCKS IN "OPEN”
(UNLOCKED) POSITION.
INSTALLATION & WIRING MUST BE IN COMPLIANCE WITH LOCAL ELECTRICAL AND BUILDING CODES.
OPERATION AT OTHER THAN 120V 60Hz WILL CAUSE OPENER MALFUNCTION AND DAMAGE.
Opener MUST be permanently wired or plugged into a
grounded Strong receptacle wired according to local elec­
trical codes. DO NOT use a 2-wire adapter. DO NOT use
..............
an extension cord PERMANENT WIRING
CONNECTION
Ground Tab
RIGHT WRONG
IF LOCAL CODES REQUIRE PERMANENT WIRING:
DISCONNECT THE POWER AT THE FUSE
BOX BEFORE PROCEEDING,
PROCEDURE: Refer to iilustration. Make connection
through the 7/8" diameter hole in top of opener chassis.
1. Remove opener chassis cover by removing the cover
screws
2. Remove attached 3-prong cord.
a Connect the black (line) wire to black wire on terminal
block; white (neutral) wire to the white terminal wire;
the green (ground) wire to green ground screw.
Green Ground
Screw
White
Wire'
CAUTION: BE SURE THAT THE UNIT IS GROUNDED
ACCORDING TO LOCAL CODE.
IMPORTANT NOTE: TO AVOID INSTALLATION
DIFFICULTIES, DO NOT RUN OPENER NOW.
14
