CRAFTSMAN 10 in. TABLE SAW - MODEL NO. 315.228110

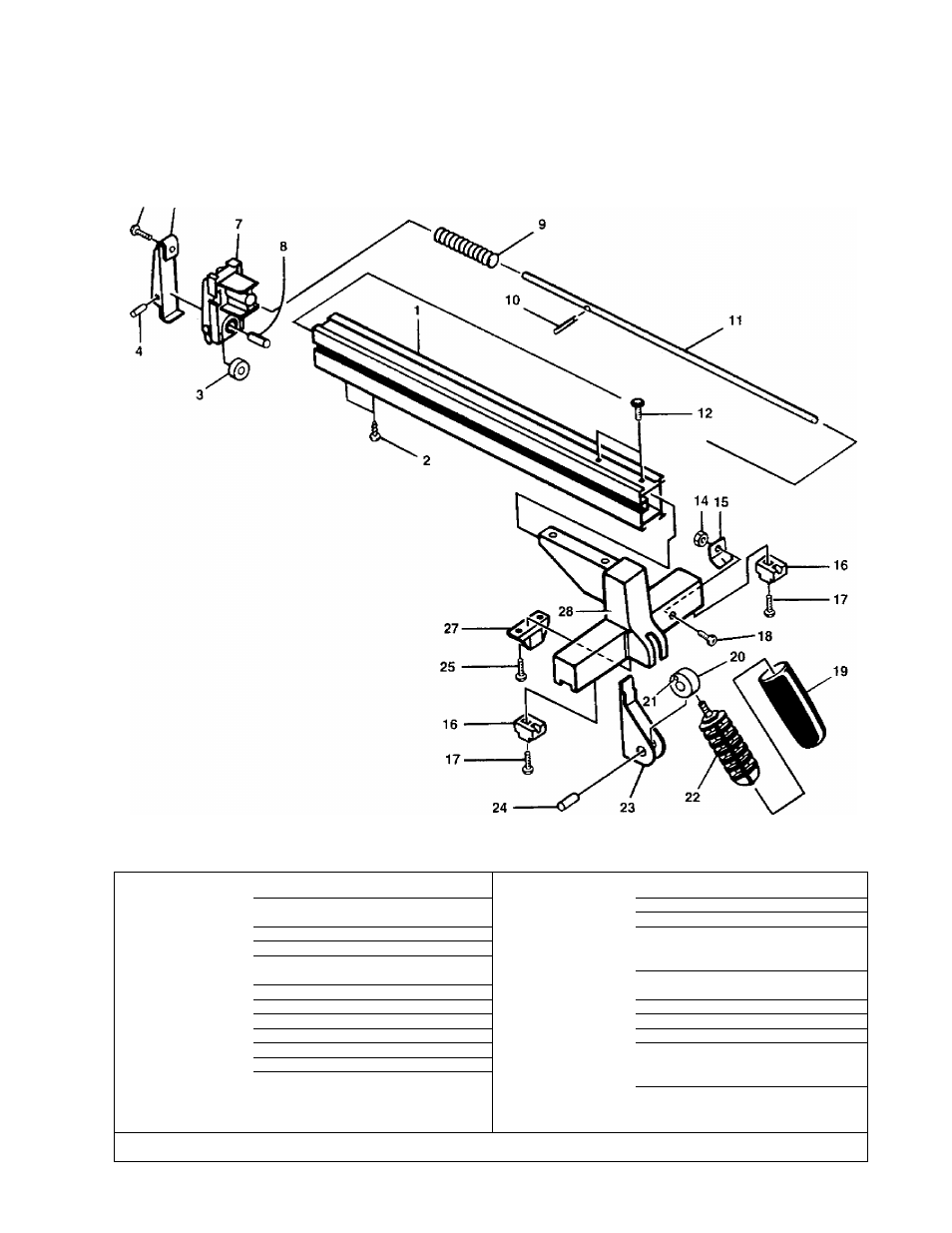

FIGURE C; RIP FENCE ASSEMBLY
Key Part
No. Number Description Quan.
Key Part
No. Number
Description Quan.
1 969144-001 Rip Fence............................... .... 1 14 "STD541008 'Hex Nut (8-32).............................. 1
2 968704-006 'Screw 15 969153-001 Scale Indicator.............................1
(10-14X 1/2 in. Pan Hd.).... . . . 2 16 969240-001 Slide..............................................2
3 969155-001 Fence Roller........................... .... 1 17 "STD600805 'Screw (8-32 x 1/2 in. Pan Hd.) 2
4 9414dl-309 Roll Pin.................................... .... 1 18 ''STD510805 'Screw (8-32 x 1/2 in. Pan Hd.) 1
5 ’‘ST0511010 'Screw 19 969912-004 Locking Handle Grip................... 1
(10-24 X 1 in. Pan Hd.)......... .... 1 20 969146-003 Eccentric Roller........................... 1
6 969254-001 Clamper - В ............................ .... 1 21 623019-004 Rubber Plug................................. 1
7 969154-002 Roller Holder.......................... 1 22 969148-001 Locking Handle Bolt.................... 1
8 969114-001 Needle Roller.......................... .... 1 23 969252-001 Clamper - A.................................. 1
9 969253-001 Compression Spring.............. .... 1 24 969147-002 Pm................................................ 1
10 "STD571207 Roll Pin.................................... .... 1 25 ■'STD600803 'Screw (8-32 x 3/8 in. Pan Hd.) 2
11 969156-001 Rod.......................................... .... 1
12 610878-003 'Screw (1/4-20 x 5/8 in. 27 969150-001 Plate............................................. 1
Button Hd.)............................. ....2 28 969145-008 Front Block...................................1
*
Standard Hardware Item — May Be Purchased Locally **Avai1able From Division 98 — Source 980.00
CRHFT^MRN* TABLE SAW 315.228110 50
