Fig. 10
STITCH LINE
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
MADE IN CHINA • PRINTED IN CHINA
© 2006 The Coleman Company, Inc.
Coleman ® and are registered trademarks of The Coleman Company, Inc.
Things You Should Know:
• Never store your shelter, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles inside
your shelter. Use a separate storage bag.
• Stakes should be removed by pulling on the stake itself. Never pull on the
canopy to remove stake.
• SHELTER POLES SHOULD NOT BE LEFT TELESCOPED TOGETHER
DURING STORAGE.
WARNING: Keep all flame and heat sources away from
this shelter fabric.
This shelter meets the flammability requirements of CPAI-84. The
fabric will burn if left in continuous contact with any flame source.
The application of any foreign substance to the shelter fabric may
render the flame-resistant properties ineffective.

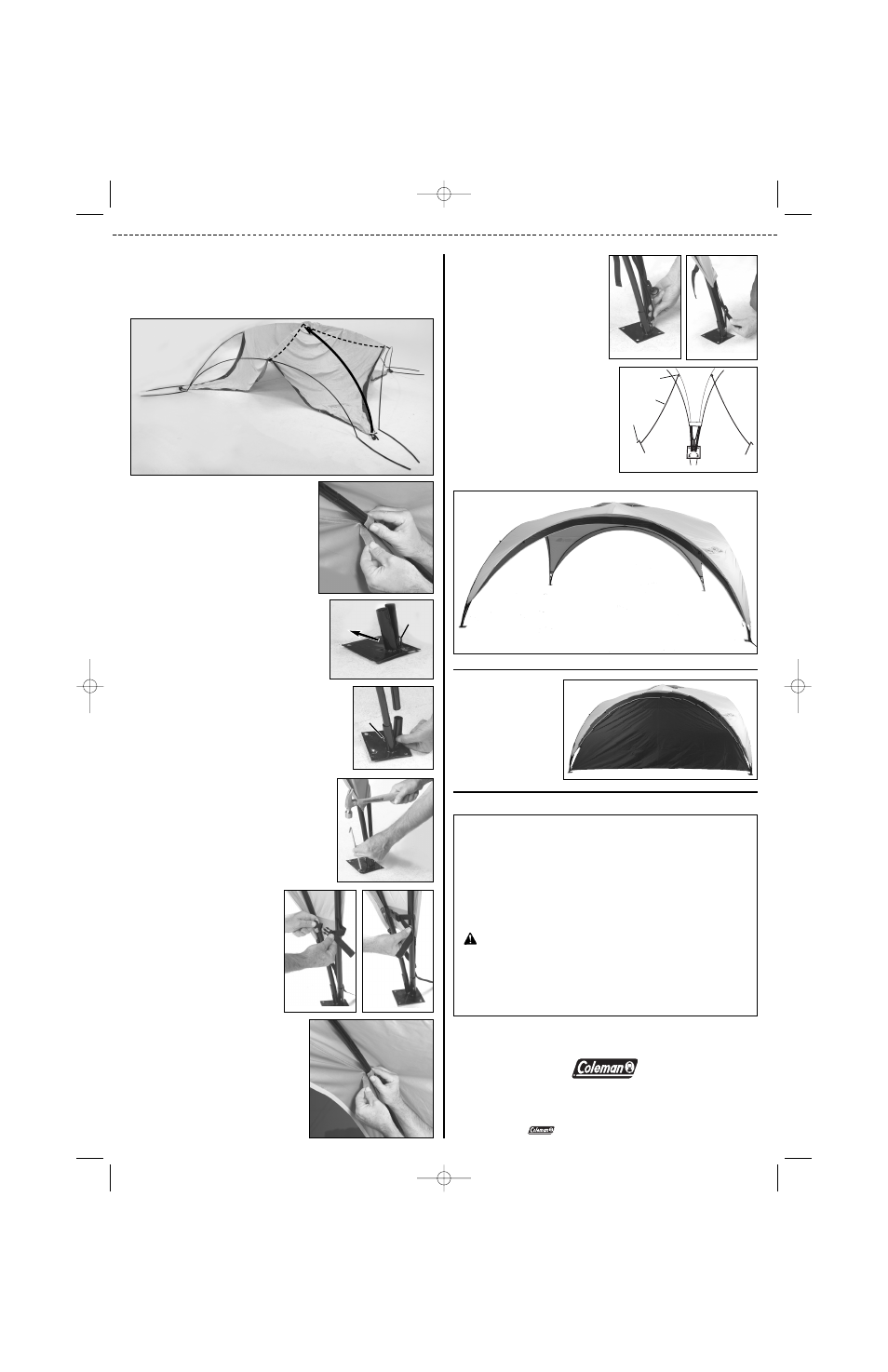

To Set Up Shelter
(continued)
Fig. 11
7. Locate the hook & loop fasteners
closest to the center of the under
side of the canopy and wrap around
poles to secure. (Fig. 11)
8. Position Pad Feet at the four corners
(determined with the use of the Corner
Locator in Step 1) as shown. (Fig. 12)
NOTE: Pad Feet must angle in toward
center of shelter with metal ring facing
outward.
Metal
Ring
Fig. 12
Fig. 13
9. Insert ends of Poles into Pad Feet and twist
until metal pin locks into slot (Fig. 13).
10. Repeat for other three Pad feet locations.
NOTE: Make sure the metal rings on the
Pad Feet are facing out.
Fig. 18 Fig. 19
Fig. 15 Fig. 16
Fig. 17
Angle faces
inward
Metal
Pin in
slot
14. Attach hook end of Canopy
tension strap to the metal
ring on the Pad Feet. Repeat
for the remaing three Pad
Feet. Pull down strap, at
each corner, to tighten.
(Fig. 18 & 19)
13. Locate all velcro straps on the
seams on the inside of the
Canopy. Undo straps, wrap
around Poles and secure tightly.
(Fig. 17)
15. Attach Guy Lines to web loops
located on outside seams of
Canopy then secure with stakes.
(Fig. 20)
Fig. 14
Web Loop
Guy Line
Stake
Fig. 20
Optional Sunwalls may
be placed in any of the
arched openings of the
Shelter. See your
local retailer or visit
www.coleman.com
to order.
6. Unfold Canopy and pull over frame. Fold back one flap on
canopy to allow easy access to inside of shelter frame and under-
side of canopy. (Fig. 10)
12. Wrap web straps around
Pole at all four corners and
hook snap-in buckles. Pull
strap, at each corner, to
tighten. (Fig. 15 & 16)
11. Drive stakes through holes in Pad Feet
to secure. (Fig. 14)
NOTE: Coleman provides 2 stakes per
Pad Foot. Soil type may dictate the use
of more stakes. Extra stakes may be
purchased at any local sporting goods
dealer.
Completed Shelter
