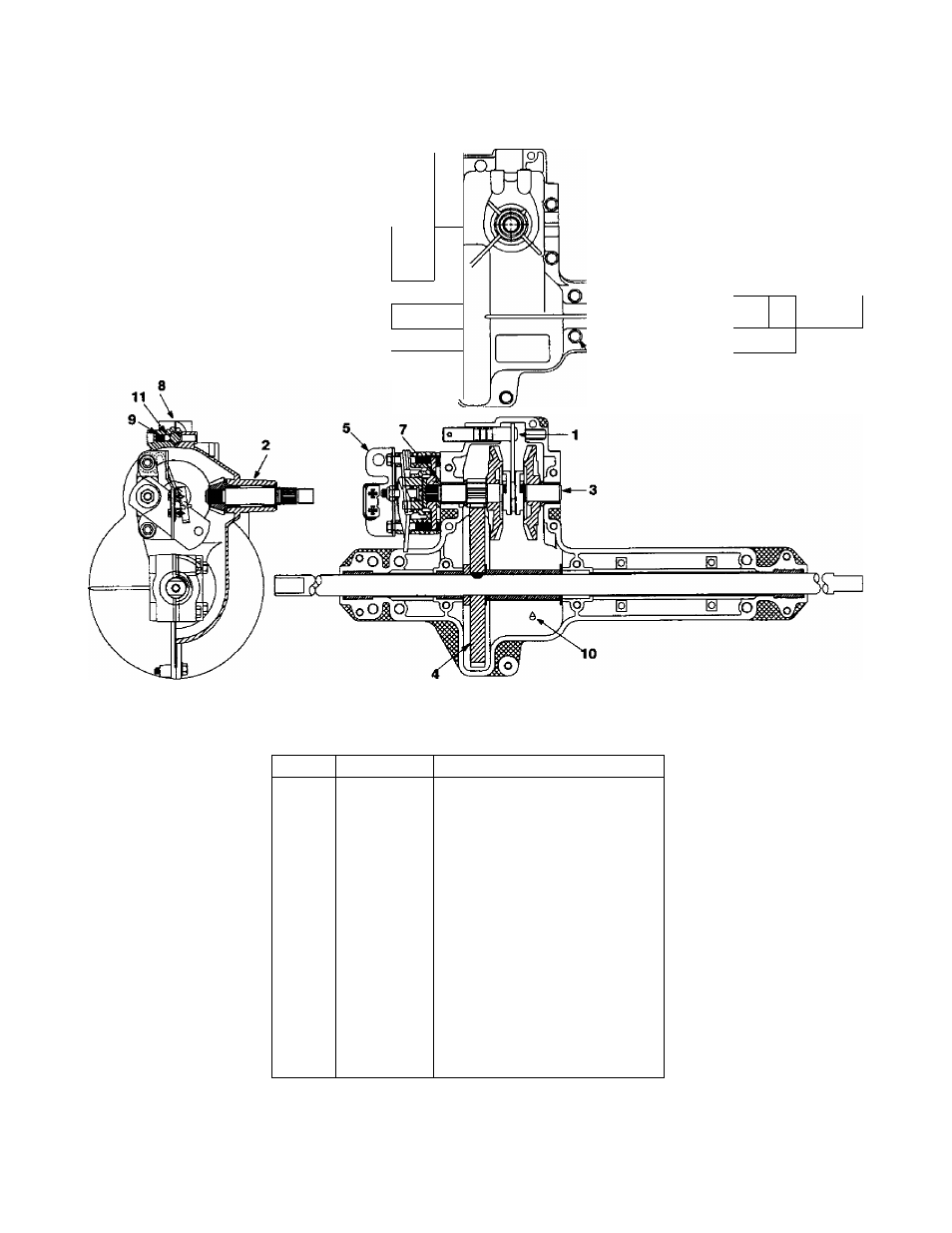

Parts List for Craftsman Lawn Utility Vehicle Model 247.270250

li i

|o

w

1

\ &

1

1 ■

xy

--------N ^

7

Key No. Part No.

Description

1.

611-0011

Shaft Assembly: Detent

2.

618-0072B

Upper Housing Assembly

3.

618-0135

Drive Shaft Assembly: LH Brake

4.

618-04009

Axle Assembly

5.

661-0043

Brake Assembly: Yoke LH

6.

710-1325

TT Screw 1/4-20x1.625”

7.

717-0678

Break Pad

8.

719-0313B

Lower Housing

9.

732-0863

Spring Detent

10.

737-0148

Grease

11.

741-0862

Ball: Detent: .250

12.

761-0202

Brake Disc

13.

618-04007

Transmission Assembly Complete:

Single Speed
