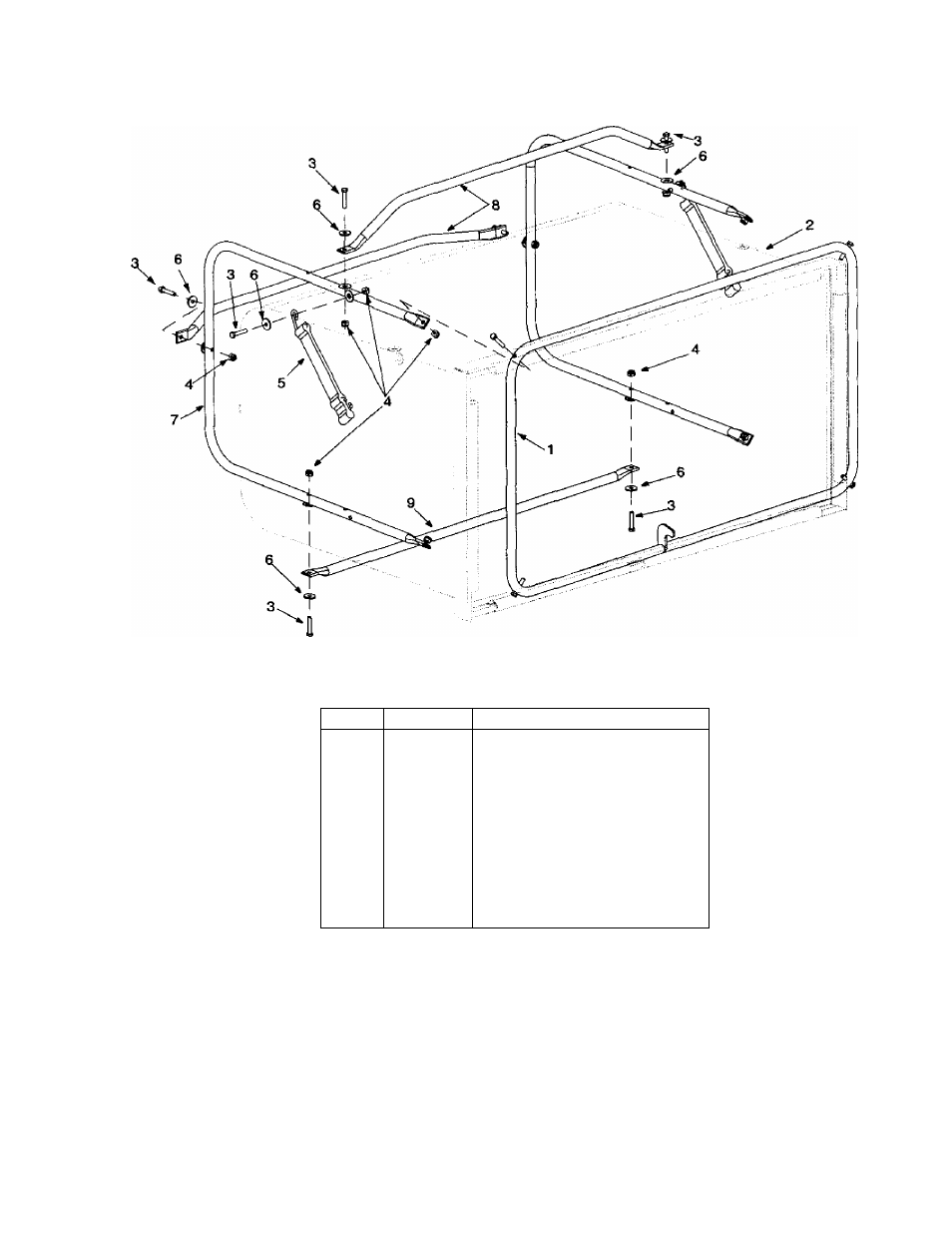

Craftsman Lawn Utility Vehicle Model 247.27Q250
Key No, Part No.
Description
1.
649-0126
Tube Assembly: Front Frame
2.
664-0107
Grass Catcher Bag
3.
710-1194
Mach. Screw #10-24x1.0
4.
712-0161
Lock Nut #10-24
5.
723-0383
Retainer Strap
6.
736-0400
Flat Washer
7.
749-1260
Side Tube: Frame
8.
749-1262
Bag Handle
9.
749-1269
Support Tube
NOTE: For painted parts, please refer to the list of color codes below. Please the applicable color code,
wherever needed, to the part number to order a replacement part. For instance, if a part, numbered 700-
xxxx, is painted polo green, the part number to order would be 700-xxxx-0689.
Polo Green: 0689
Powder Black: 0637
Oyster Gray: 0662
33
