PARTS LIST

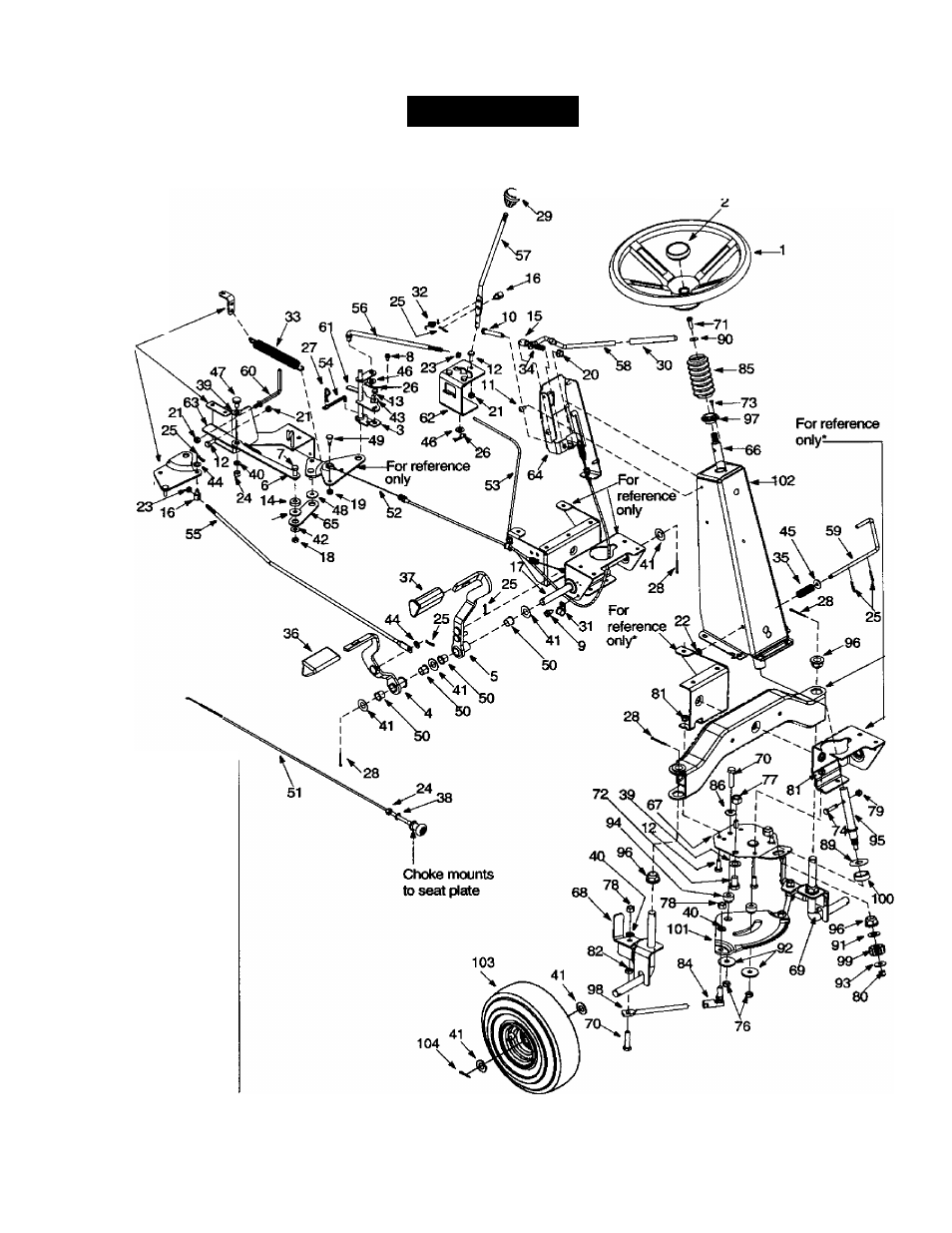

Parts List for Craftsman Lawn Utility Vehicle Model 247.270250

For
reference
only

NOTE: For painted
parts, please refer
to the list of color
codes below. Please
add the applicable
color code, wher

ever needed, to the
part number to order
a replacement part.
For instance, if a
part, numbered

700-

xxxx, is painted polo
green, the part num
ber to order would
be

700-XXXX-0689.

Polo Green:

0689

Powder Black:

0637

Oyster Gray:

0662

' For daiity of viewing, these parts have been referred to more than once in this Illustration.
