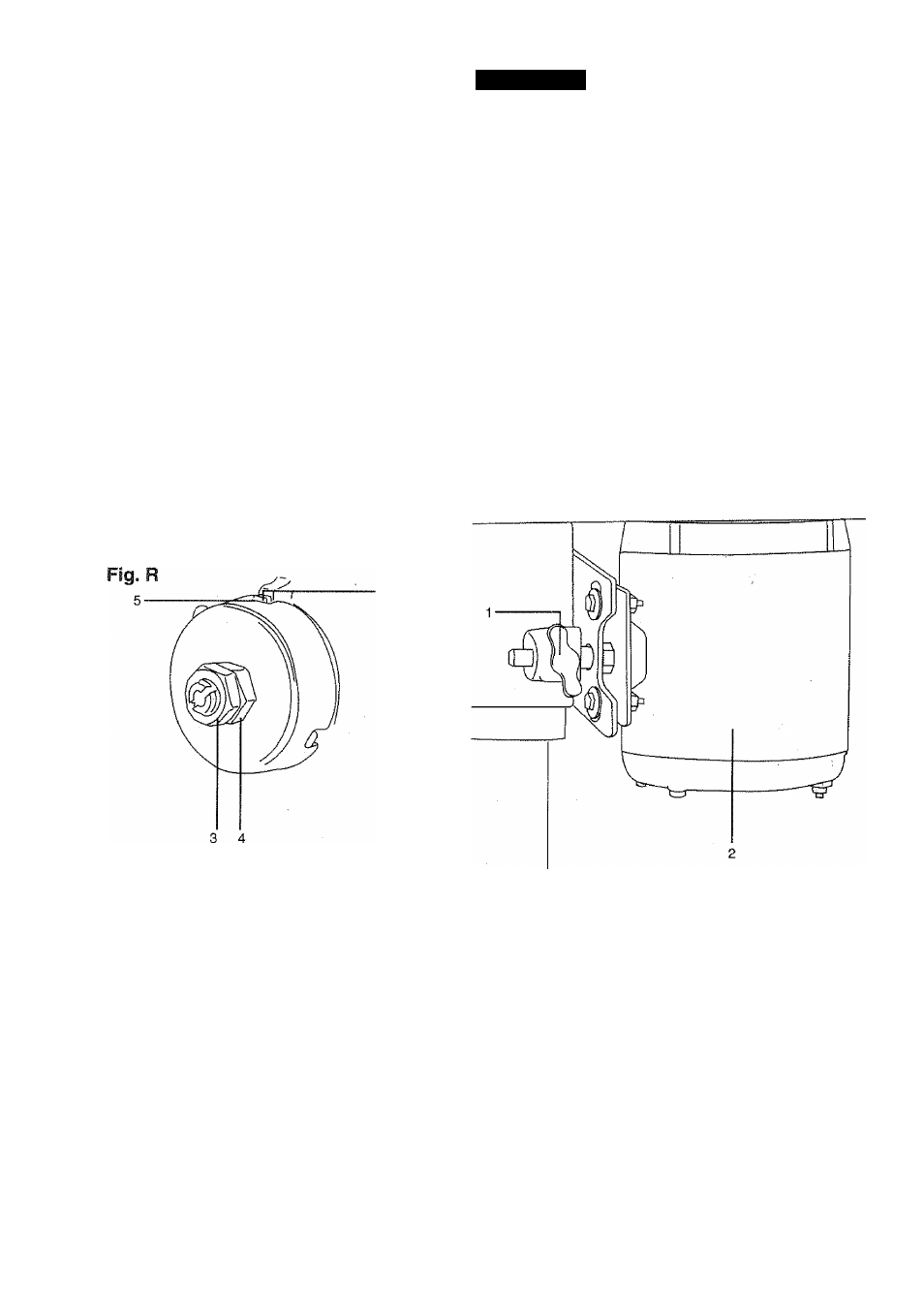

QUILL RETURN SPRING (RG. R)
The quilt return spring may need adjustment if the tension
causes the quill to return too rapidly or too slowly.

1. Lower the table for additional clearance.

2. Place a screwdriver in the lower front notch (1) of the

spring cap (2). Hold it in place while loosening and

removing only the outer jam nut (3).

3. With the screwdriver stiil engaged in the notch,

loosen the inner nut (4) just until the notch (5)

disengages from the boss (6) on the drill press head.

CAUTION: DO NOT REMOVE THIS INNER NUT,
because the spring will forcibly unwind,

4. Carefully turn the spring cap (2) counterclockwise with

the screwdriver, engaging the next notch.

5. Lower the quill to the lowest position by rotating the

feed handle in a counterclockwise direction while

holding the spring cap (2) in position.

6. If the quill moves up and down as easily as you

desire, tighten the standard nut (4) with the adjustable

wrench. If too loose, repeat steps 2 through 5 to
tighten. If too tight, reverse steps 4 and 5.

DO NOT OVERTIGHTEN and restrict quill movement.

7. Replace the jam nut (3) and tighten against the

standard nut (4) to prevent the standard nut from
reversing.

A WARNING

To avoid injury from an accidenta! start, ALWAYS make
sure the switch is in the "OFF” position, the switch key is

removed, and the plug is not connected to the power source

outlet before making belt adjustments.

BELT TENSION (FIG. S)
Make sure pulleys are aligned properly as shown in
Figure 0 on page 13.
1. To unlock the belt tension, loosen the belt tension

lock knobs (1) on both sides of the drill press head.

2. Move the motor (2) toward the front of the drill press

to loosen the belt.

3. Position the belt on the correct pulley steps for the

desired speed.

4. Pull the motor away from the drill press head until

the belt is properly tensioned,

NOTE: Belt tension is correct if the belt deflects

approximately 1/2 inch when pressed at the center.

5. Tighten the belt tension lock knobs (1) on both sides

of the drill press head.

Fig.S
