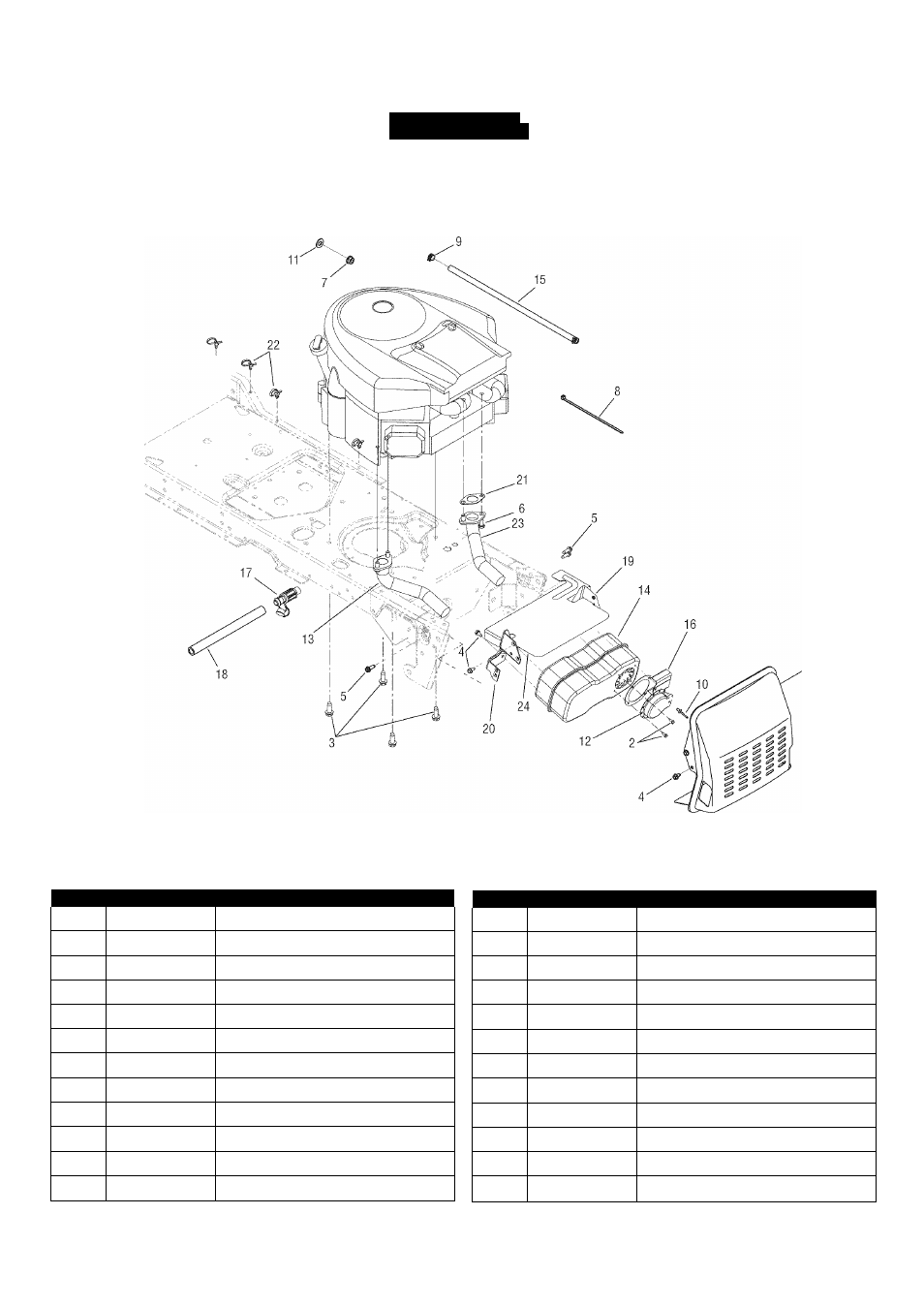

PARTS LIS
I
Craftsman Revolution Model 247.28933
J
For Choke
-
Ref. No.
Part No.
Description
1
.
683-04256-0637
Shield, Muffler
2
.
710-0227
Screw, Hex Wash Hd. Tapp, #8-18 x .5
3.
710-04683
Screw, Hex Sems Tapp, 3/8-16 x 1.0
4.
710-0599
Screw, Hex Wash Hd. Tapp, 1/4-20 x .5
5.
710-0642
Screw, Hd. Tapp, 1/4-20 x .75
6
.
710-3008
Screw, Hex Cap, 5/16-18 x .75 Gr5
7.
912-3005
Nut, Hex Flange Lock, 3/8-16 Gr5
8
.
725-0157
Tie, Cable
9.
726-0205
Clamp, Hose
10
.
728-04000
Rivet, Pop, .188
X
.3
11
.
936-0300
Washer, Flat, .406 x .875 x .059
12
.
751-0564B
Deflector, Muffler
Ref. No.
Part No.
Description
13.
751-10004
Pipe Exhaust, RH
14.
751-10161
Muffler, Dual Inlet
15.
751-10349-54
Hose, Fuel; Low Permeation, 51 inches
16.
751-10353
Deflector, Muffler
17
951-10517A
Valve, Oil Drain
18.
751-3141-14
Hose, Oil Drain Extension
19.
783-04870-0637
Bracket, Muffler LH
20
.
783-04872-0637
Bracket, Muffler RH
21
.
721-0460
Gasket, Exhaust
22
.
926-0154
Tie, Push Mount
23.
751-10005
Pipe, Exhaust, LH
24.
783-04783A
Shid., Heat, Twin
