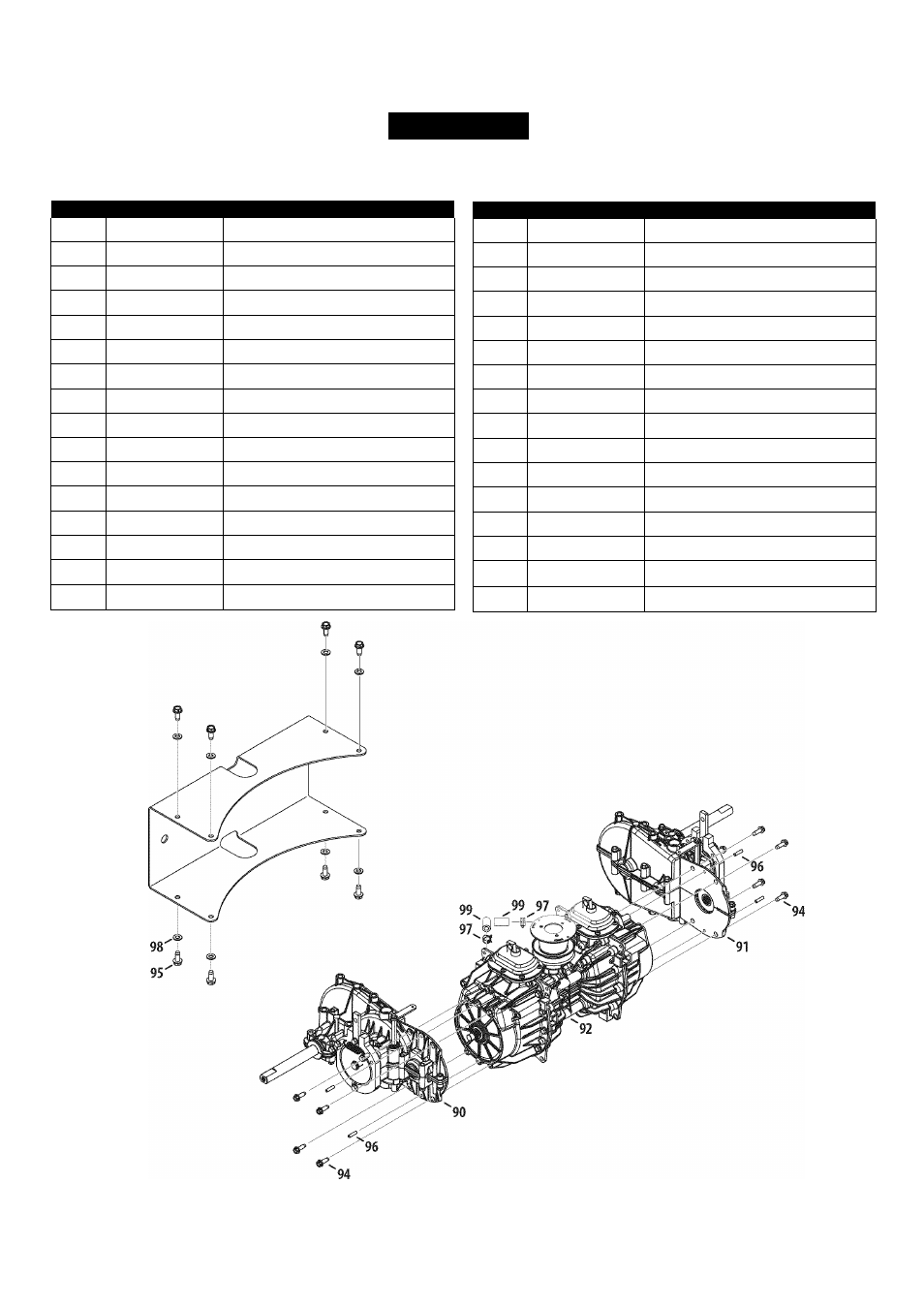

PARTS LIS
I
Craftsman Revolution Model 247.28933
Ref. No. Part No. Description
73. 911-0677 Fri, 5/16-18 X . 312 Dia.
74. 783-06377 Bracket, Pivot, iVT Rev
75. 783-06213 Pedal, Rev, IVT
76. 783-06224-0637 Bracket, Brace, Neutral Brake Rod
77. 631-04229 Reservoir Assembly
78. 725-04363 Switch, Interlock (Brake)
79. 725-04374 Harness, Reverse Jumper
80. 725-1644 Switch, Reverse
81. 926-0320 Plate, Insulator Nut
82. 738-04237A Screw, Shoulder, #10-32 : .5
83. 634-04239 Wheel Assembly, 20 x 8 x 8
734-1730 Tire, 20 X 8 X 8
934-0255 Valve, Tubeless Air
934-0246A-0729 Rim Assembly, Rear
84. 647-04168 Assembly, Pedal, Rev, IVT
85. 710-0227 Screw, Hd. Tapp., #8-18 x .5
Ref. No. Part No. Description
86 . 710-0642 Screw., TT, 1/4-20 x .750
87. 714-04023 Pin, Cotter
88 . 726-0214 Cap, Push
89. 736-0116 Washer, Flat, .635 x .93 x .06
90. 918-04344 RH Transaxle Assembly
91. 918-04345 LH Transaxle Assembly
92. 918-04406 IVT Transmission Assembly
93. 683-04369-0637 Transmission Support Bracket
94. 710-0642 Screw, TT, 1/4-20, 0.750, Hxindwsh
95. 710-1260A Screw, TT, 5/16-18, 0.750, Hxindwsh
96. 915-0221 Pin, 3/16x3/4
97. 726-0205 Hose Clamp, .490 Dia.
98. 936-0264 Flat Washer, .330 x .630 x .0635
99. 751-3130 Hose, 5/16IDX.56 0D
— 918-04850 IVT Transmission / Drive Assembly
(Incl. Refs. 77, 90-99)
93'
42
