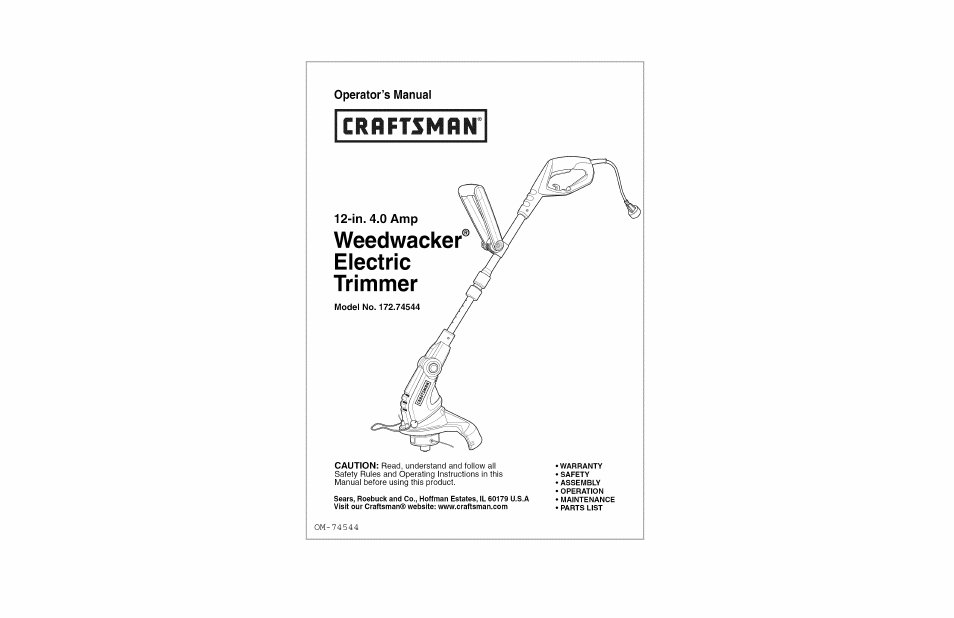

Craftsman 172.74544 User Manual
Weedwacker® electric trimmer
Table of contents
Document Outline
- DO NOT use the tool if switch does not turn it “On” or “Off”
- The label on your tool may include the following symbols.
- 1. If any part of this trimmer is missing or should break, bend, or fail in any way; or should any electrical component fail to perform properly: SHUT OFF the
- NOTE: Before attempting to use this product, familiarize yourself with all operating features and safety rules.
- PIGTAIL POWER CORD (Figs. 2, 2a and 2b)
- This Trimmer/Edger has the following features:
- 1. 12-inch Cutting Path
- This Trimmer/Edger has the following features cont.:
- INSTALLING THE SAFETY GUARD cont. (Figs. 4 and 4a )
- NOTE: Safety Guard will only fit one way.
- /K CAUTION: Line cutter on edge of safety guard is sharp. Use caution when handling.
- THE EDGE GUIDE (Fig. 5)
- ATTACHING THE AUXILIARY HANDLE cont. (Fig. 6 and 6a)
- NOTE: THE AUXILIARY HANDLE MUST BE ATTACHED to the trimmer shaft before use.
- A WARNING: BEFORE connecting your trimmer to the power outlet,
- TO USETRIMMER FOR EDGING:
- ROTATE REAR HANDLE AND UPPER SHAFT 180°
- OPERATION
- A\ WARNING: To avoid injury, DO NOT carry the trimmer with your finger on the trigger switch.
- A WARNING: If any part of the trimmer is missing or damaged, do not plug in the trimmer until the damaged part is repaired or replaced.
- PIGTAIL POWER CORD (See Figs. 2, 2a and 2b on page 11)
- TURNINGTRIMMER ON AND OFF
- EXTENDING THE CUTTING LINE (Fig. 13 and 13a)
- TO REPLACE CUTTING LINE (Fig. 14)
- REMOVETHE SPOOL
- REPLACE THE SPOOL
- FILLING SPOOL WITH CUTTING LINE
- OPERATING TIPS
- A WARNING: To avoid injury, ALWAYS turn off and disconnect the trimmer from the power outlet BEFORE installing line, cleaning the trimmer or making
- any adjustments.
- GENERAL MAINTENANCE
- CLEANING
- REPLACEMENT SPOOLS
- Get it fixed, at your home or ours!
